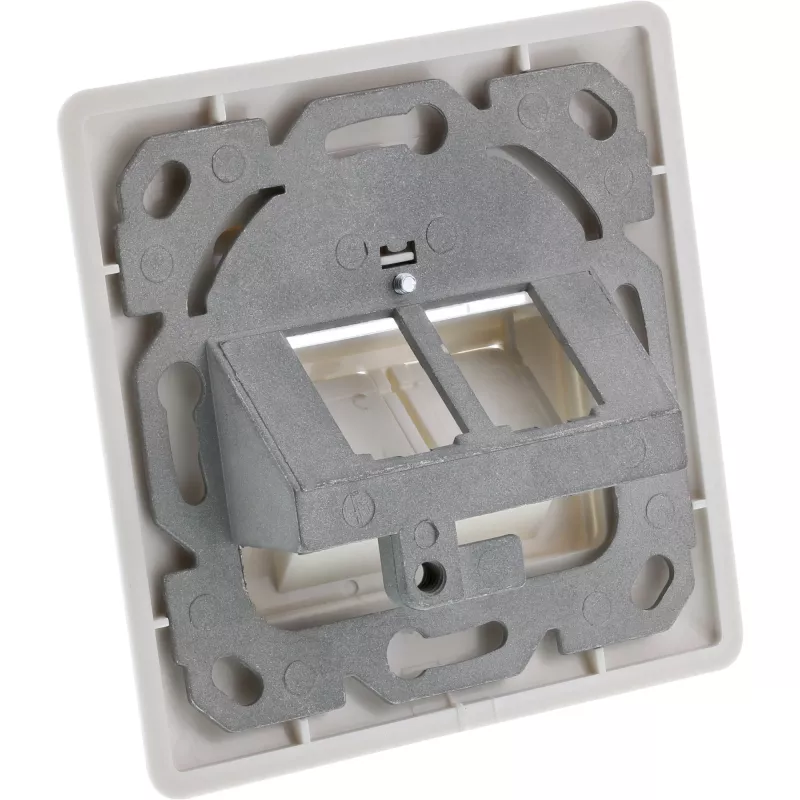

InLine kehyssarja 2x RJ45 liitin/LSA-moduulille, Keystone SNAP-In, RAL9010

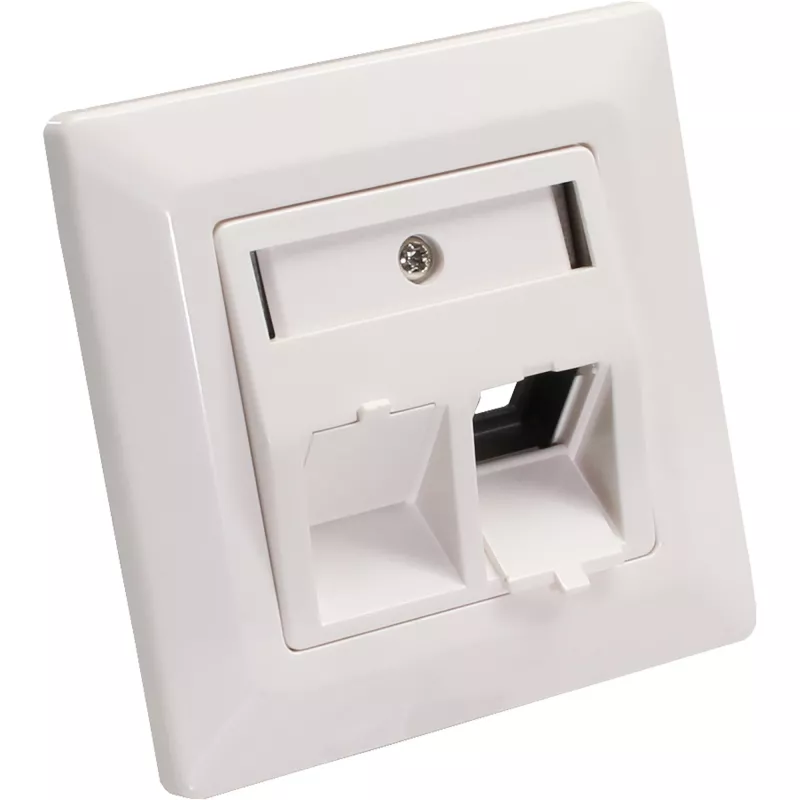

The InLine Frame set for 2x RJ45 Bu/LSA inset InLine 76201R is a screwless, white (RAL9010) plastic faceplate designed to hold two keystone or snap-in modules for structured LAN installations. With overall dimensions of 80 mm x 80 mm and a window size of 50 mm x 50 mm, the frame accepts standard snap-in or keystone connectors and enables flexible use of inserts from different manufacturers to match installation requirements.

Advantages

The frame supports both snap-in and keystone technology, allowing installation of exactly the number and type of ports you need. Its screwless design provides a neat appearance and simplifies mounting. The universal anchoring system secures keystone inserts reliably, and the compact 80 x 80 mm form factor fits common outlet boxes and mounting systems.

Suitable for

Key specifications

How to use

Insert the required RJ45 keystone or snap-in modules into the 50 x 50 mm openings until they click into the anchoring system. Align the frame with the mounting box or carrier and press into place; the screwless design holds the frame securely. If necessary, remove a module by pressing its release tab or gently prying the insert out while supporting the frame.

Recommendations

Use compatible keystone inserts from the same or reputable manufacturers and ensure the modules match the desired RJ45 category (e.g., Cat5e/Cat6) before installation. Verify compatibility with the mounting box dimensions and avoid excessive force when inserting or removing modules to prevent damage.
