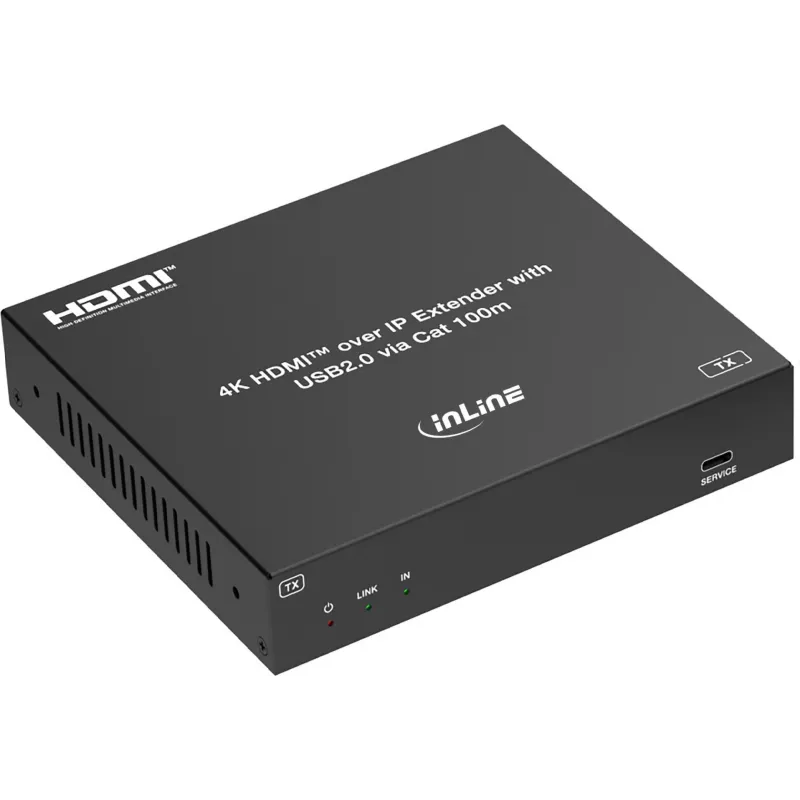

InLine® KVM-jatko IP:n yli, HDMI 4K/60Hz, 100m, lähetin (TX) (57886I)

Experience ultra-low latency KVM extension with 4K UHD clarity at 60Hz over a single Cat5e/6/7 cable, reaching up to 100 meters. The InLine® 57886I transmitter unit delivers uncompressed HDMI 2.0 video, USB 2.0 keyboard/mouse control, and embedded audio, all over a standard Gigabit IP network.

Overview

Designed for professional AV and IT environments, this KVM over IP extender transmitter separates the console from the computer, enabling remote operation with zero perceptible delay. It supports point-to-point, point-to-multipoint, and multipoint-to-multipoint configurations, making it ideal for control rooms, digital signage, and server management. The metal housing ensures durability, while wall-mounting options provide flexible installation.

What stands out

• 4K UHD 3840x2160 @ 60Hz video with HDCP 2.2 compliance
• Ultra-low latency under 1 ms for real-time interaction
• Extends up to 100 meters over cost-effective Cat5e/6/7 cabling
• Supports USB 2.0 for keyboard and mouse, with automatic EDID management
• Flexible network modes: point-to-point, point-to-multipoint, and multipoint-to-multipoint
• On-screen display (OSD) for easy configuration
• Robust metal chassis with wall-mount capability

Technical details

• Video input: 1x HDMI Type A female
• KVM interface: 2x USB 2.0 Type A female (keyboard/mouse)
• Network interface: 1x RJ45 Gigabit Ethernet
• Maximum resolution: 3840x2160 @ 60Hz (4K UHD)
• HDMI standard: 2.0, HDCP 2.2
• Maximum distance: 100 m over Cat5e/6/7
• Audio: embedded HDMI audio
• Latency: < 1 ms
• Operating modes: point-to-point, point-to-multipoint, multipoint-to-multipoint
• EDID management: automatic/configurable
• Control: OSD
• Housing: metal
• Power supply: DC 12V/1A (adapter included)
• Power consumption: max 6W
• Operating temperature: 0°C to 50°C
• Mounting: wall-mountable

Our verdict

The InLine® 57886I transmitter is a high-performance, reliable solution for extending 4K KVM signals over IP. Its low latency, robust feature set, and flexible deployment options make it an excellent choice for demanding professional applications.
