InLine Patch-kaapeli panssaroitu, U/FTP, Cat.6A, musta, 1,5 m

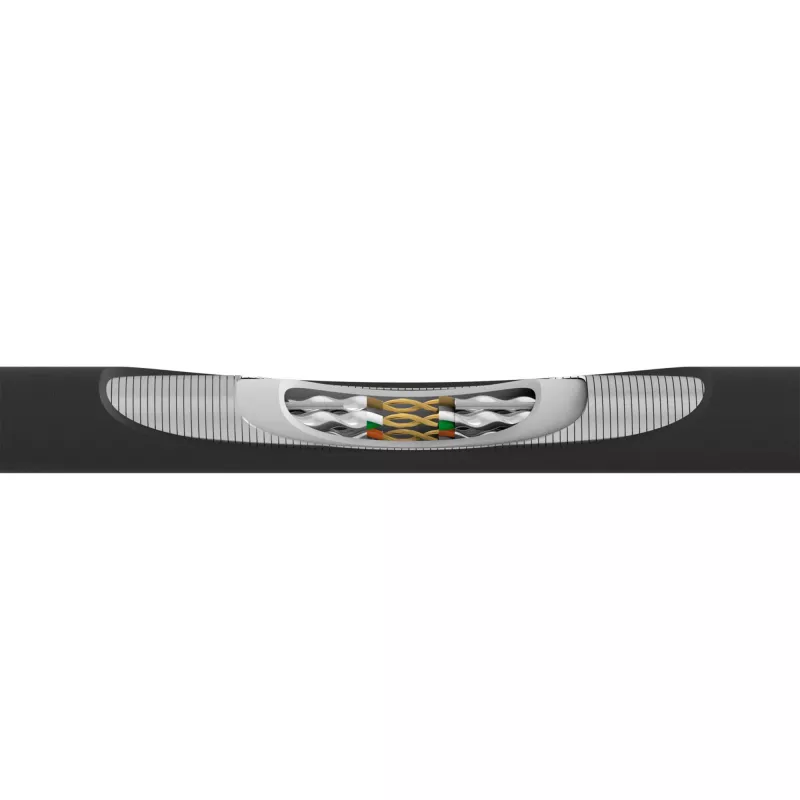

The InLine® Cat.6A armoured patch cable (1.5 m, black) is a durable U/FTP Ethernet cable designed for demanding network installations. It combines an inner SUS204 stainless steel jacket and a highly elastic PVC outer sheath with full shielding and HDPE core insulation to ensure mechanical protection and signal integrity in environments exposed to heavy foot traffic, weather, pests or rodents. The cable is terminated with fully shielded 8P8C (RJ-45) plugs with 50 µ" gold-plated contacts and supports PoE up to 90 W for reliable high-speed data transmission.

Advantages

The armoured construction provides increased mechanical strength and resistance to pressure and damage while full U/FTP shielding and HDPE insulation maintain signal quality and reduce electromagnetic interference. Gold-plated contacts improve conductivity and corrosion resistance. The cable withstands installation and operating temperature ranges suitable for indoor and some outdoor-protected installations and meets performance requirements for Cat.6A up to 500 MHz.

Suitable for

• High-speed Ethernet connections in harsh environments
• Temporary and permanent installations at events (shows, concerts)
• Outdoor-protected connections such as billboards and advertising signs
• PoE/PoE+/PoE++ powered devices (up to 90 W)

Key specifications

• Cable type: Cat.6A U/FTP
• Length: 1.5 m
• Conductor: 28 AWG
• Insulation: HDPE

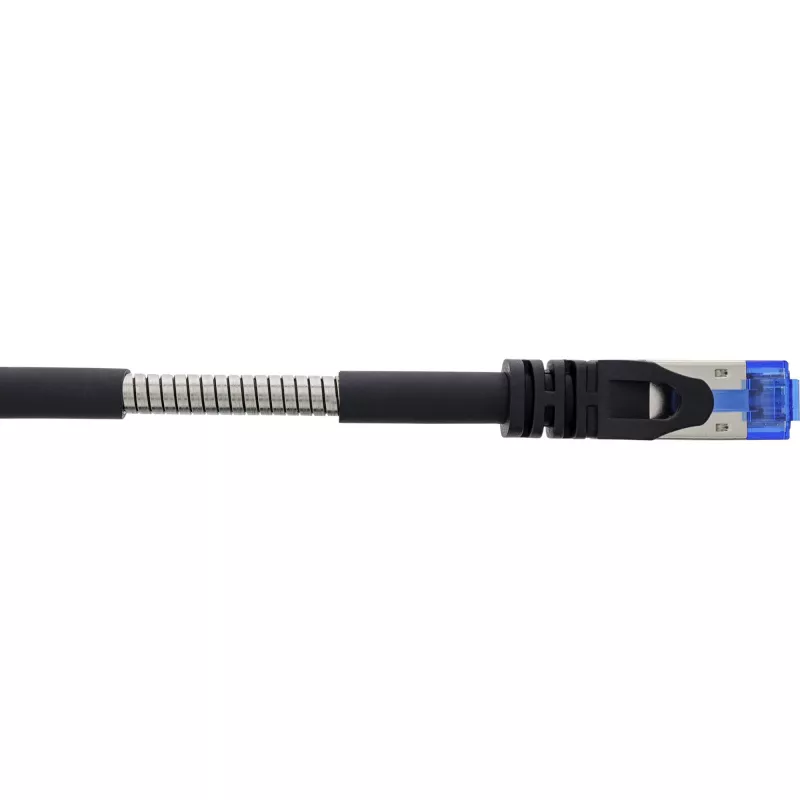

• Inner jacket: SUS204 (stainless steel)
• Outer sheath: Highly elastic PVC
• Outer diameter: 7.3 mm (OD)

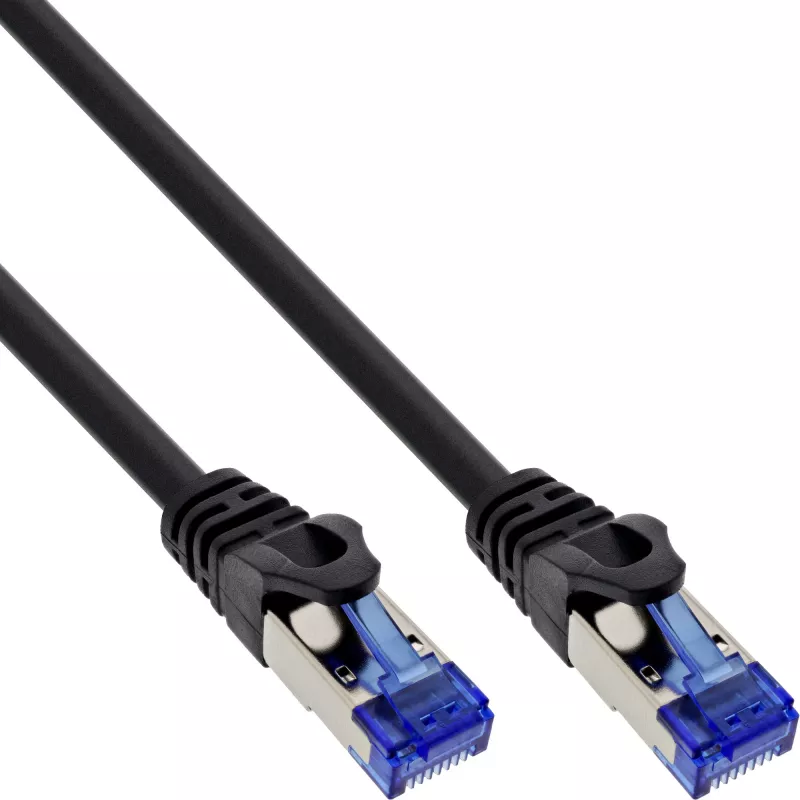

• Connector type: 8P8C (RJ-45), fully shielded crimped plug
• Contacts: 50 µ" gold-plated
• Bandwidth: 500 MHz
• Impedance: 100 Ω
• Capacitance: 5600 pF/100 m
• Propagation delay: ≤ 545 ns/100 m
• Delay skew: ≤ 45 ns/100 m
• Conductor DC resistance: ≤ 28.4 Ω/100 m
• Rated voltage: 30 V
• PoE support: up to 90 W
• Force resistance (short pressure): 2000 N; (sustained): 500 N
• Temperature range: installation 0 to 50 °C; operation -20 to 60 °C
• Certification: Passes Fluke DSX 8000 channel test

How to use

Connect the InLine® Cat.6A patch cable between RJ-45 ports on network devices such as switches, routers, patch panels or PoE endpoints. Ensure connectors are fully inserted and the shielded plugs mate with shielded equipment or patch panels to maintain grounding continuity. Route the cable avoiding sharp bends and crushing points; respect the minimum bend radius and secure with suitable ties that do not compress the armouring.

Recommendations

For optimal performance, use the cable within specified temperature limits and avoid prolonged exposure to direct sunlight or standing water. When using PoE, verify device power budgets and connection ratings. For installations requiring permanent outdoor exposure, provide additional weatherproofing or conduit despite the armoured design.
