InLine pöytäteline 6x TV / LED / TFT-näytölle enintään 81cm 32 tuumaa max. 7kg musta

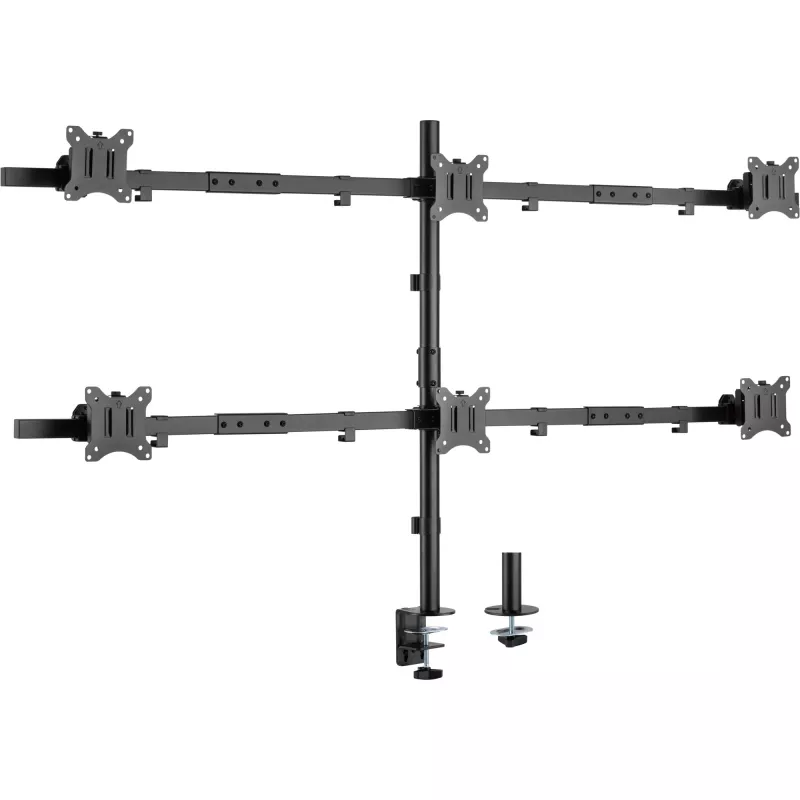

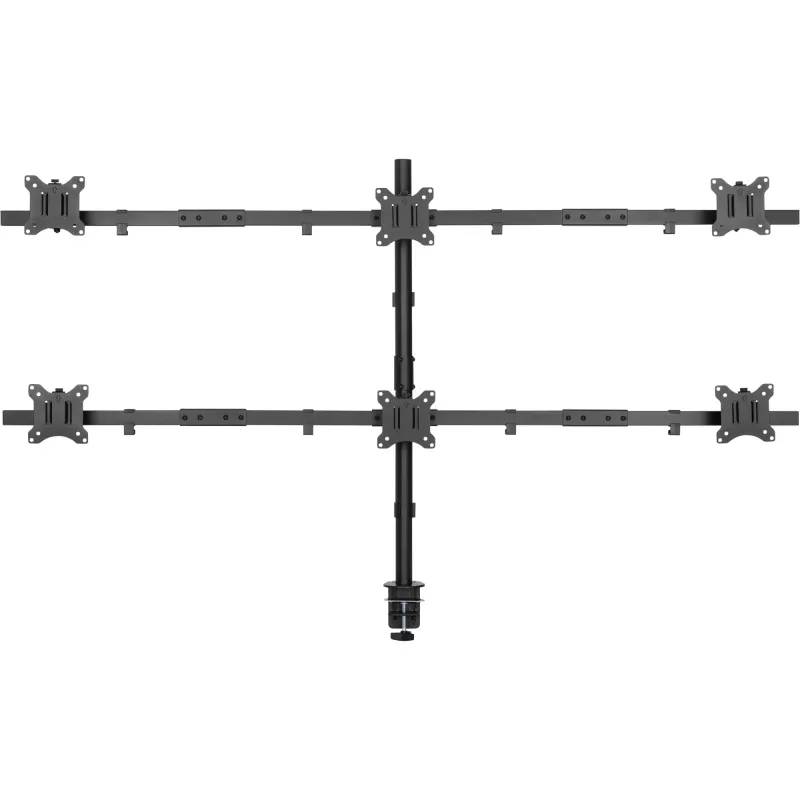

InLine 23108I is a desk mount for flat-screen monitors up to 32" that supports VESA 75x75 and 100x100 mm standards. The mount allows tilt of +/-45° and full 360° rotation, and includes a joint for flexible orientation. It is height-adjustable to a maximum of 86 cm and can be arranged for up to three monitors on two levels. The mount is delivered with the necessary accessories for attaching screens.

Advantages

The mount offers broad compatibility with VESA 75x75 and 100x100 mm patterns and supports tilting and full rotation for flexible viewing angles. It provides both screw clamp and grommet mounting options for desks (edge mounting up to approx. 85 mm or through-desk mounting up to approx. 40 mm). The design supports a maximum load of 7 kg per arm and includes screws (M4 and M5), two Allen keys and installation instructions for straightforward assembly.

Suitable for

• Home offices and workplace desks with monitors up to 32"

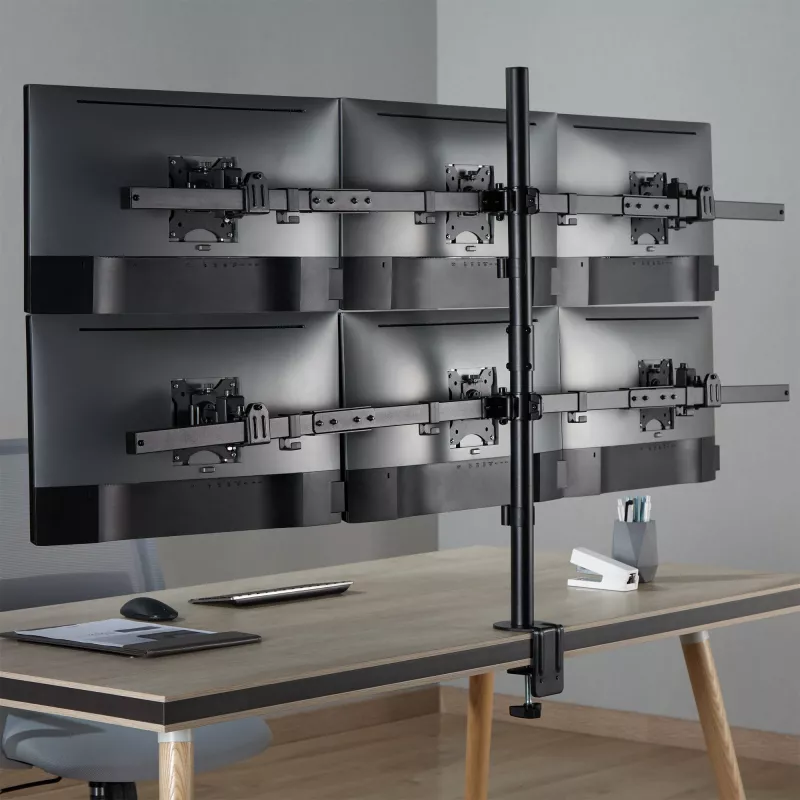

• Multi-monitor setups (up to 3 monitors on 2 levels)
• Situations requiring adjustable height, tilt and rotation for ergonomic positioning

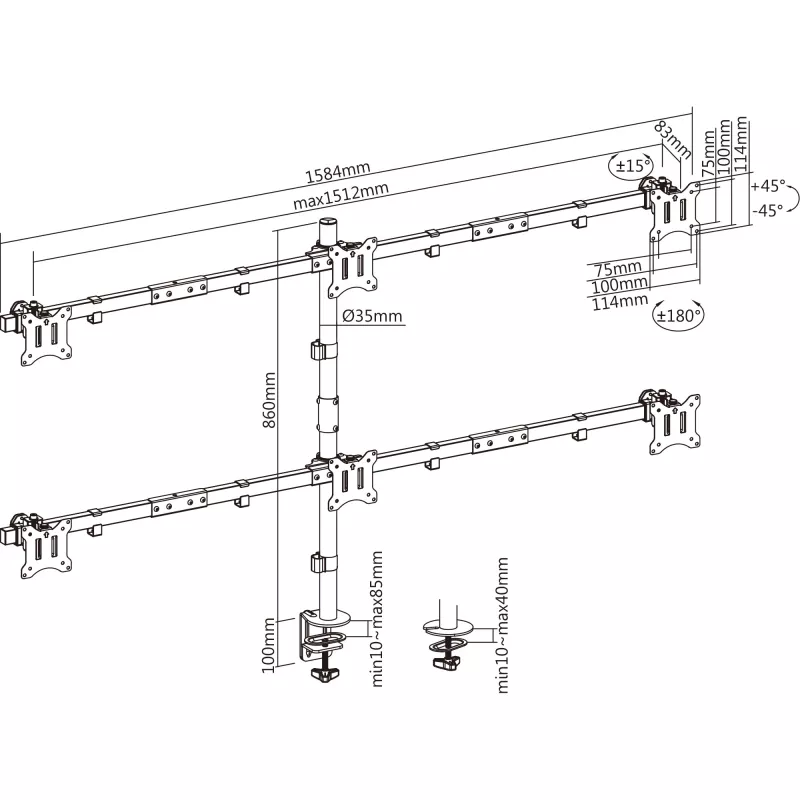

Key specifications

• Model: InLine 23108I
• Screen size compatibility: up to 32"
• VESA: 75x75, 100x100 mm
• Tilt range: +/-45°
• Rotation: 360°
• Height adjustment: up to 86 cm
• Mounting: screw clamp (edge) up to approx. 85 mm, grommet (through desk) up to approx. 40 mm
• Max. load capacity: 7 kg
• Included accessories: screw set (M4, M5), 2x Allen key, installation instructions

How to use

Choose the appropriate mounting method for your desk: edge clamp (up to ~85 mm) or grommet through-desk (up to ~40 mm). Attach the table holder securely, assemble the arm and adjust the height up to 86 cm as needed. Fix the monitor to the VESA plate using the supplied M4 or M5 screws, then set tilt and rotation to the desired viewing angle. Follow the included installation instructions and use the provided Allen keys for tightening fasteners.

Recommendations

Ensure each monitor does not exceed the specified 7 kg maximum load and confirm VESA compatibility (75x75 or 100x100 mm) before installation. If mounting three monitors, verify desk strength and space for a stable multi-level arrangement.
