InLine Solid asennuskaapeli SF/UTP Cat.5e AWG24 CU halogeeniton 300 m

The InLine Solid Installation Cable SF/UTP Cat.5e AWG24 CU halogen free 300m is a halogen-free, solid-core network cable designed for structured cabling and fixed installations. It uses SF/UTP shielding to reduce electromagnetic interference and supports Cat.5e performance for Ethernet and other data transmission applications. The cable comes in a 300 m length and a beige outer sheath for unobtrusive installation.

Advantages

SF/UTP construction provides improved protection against external interference compared with unshielded cables. Solid AWG24 copper conductors offer stable signal transmission over longer fixed runs. The halogen-free jacket reduces toxic gas emission in case of fire, and the beige colour blends into many commercial and residential environments.

Suitable for

• Structured LAN cabling in offices and data closets
• Horizontal and vertical fixed installations within buildings
• Ethernet networks up to Cat.5e performance
• Environments requiring halogen-free materials for safety compliance

Key specifications

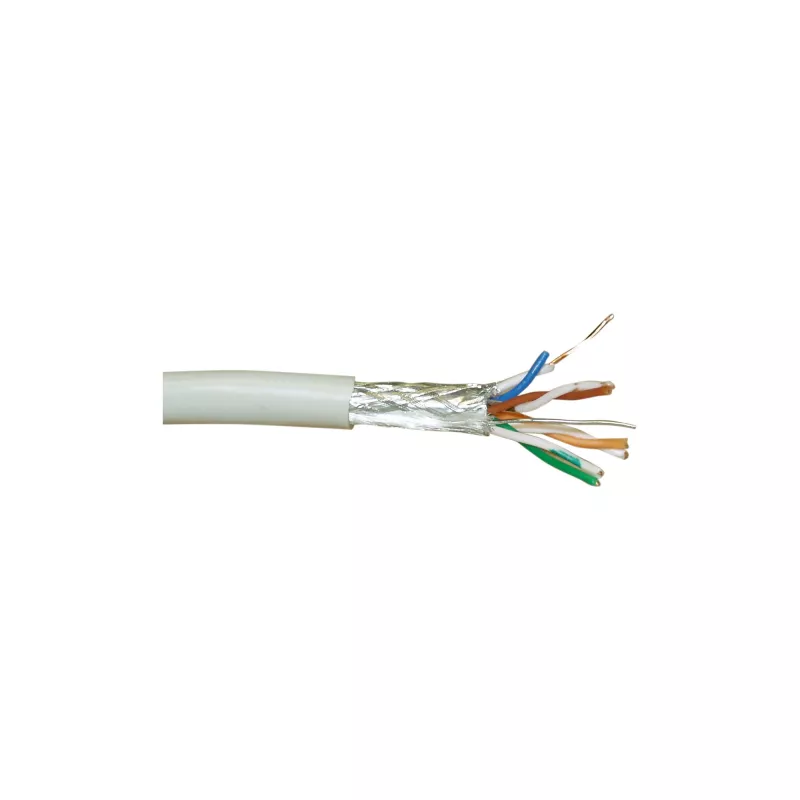

• Cable type: Solid core SF/UTP (shielded foil with overall braid)
• Category: Cat.5e
• Conductor: AWG24 copper (CU), solid
• Length: 300 m
• Colour: Beige
• Halogen-free outer sheath

How to use

Run the cable along planned cable routes for fixed installations, avoiding sharp bends and exposure to sources of strong electromagnetic interference. Terminate the solid-core conductors on compatible keystone jacks or patch panels rated for Cat.5e and verify continuity and performance with appropriate network testing equipment after installation.

Recommendations

For optimal performance, maintain recommended bend radius according to installation standards, separate power and data cabling where possible, and test each run after termination to confirm Cat.5e compliance.
