InLine® USB 3.2 Gen.1 PCIe-liitäntäkortti, 4-porttinen, sisäinen/ulkoinen

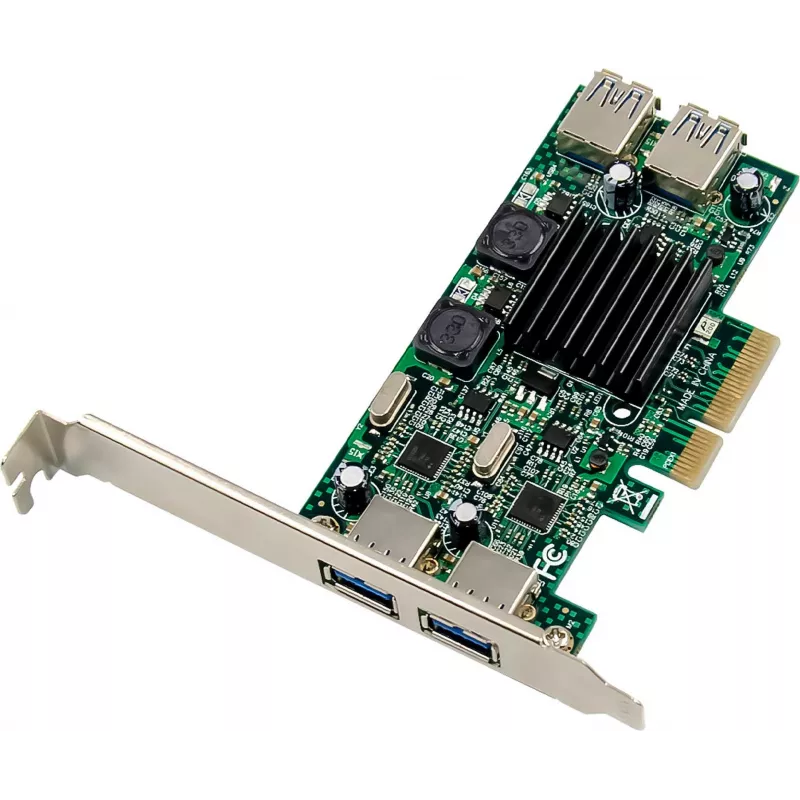

Unlike ordinary USB expansion cards that merely add a couple of ports, the InLine® 76619M transforms a single PCIe slot into a versatile 4-port USB 3.2 Gen 1 hub, with two ports accessible from the rear bracket and two more routed internally for front-panel or chassis connections. This dual internal/external design is a rarity in its class, making it ideal for users who need high-speed USB connectivity both outside and inside their PC case without sacrificing performance or stability.

Highlights

• Four SuperSpeed USB 3.2 Gen 1 ports (5 Gbps) – two external Type-A and two internal Type-A
• Powered by Renesas uPD720201 controller for reliable, driver-free operation on modern systems
• Includes both standard and low-profile brackets for flexible installation in slim or full-size cases
• SATA power connector ensures stable power delivery to all ports, even under heavy load
• Backward compatible with USB 2.0 and 1.1 devices, and works in PCIe x1 to x16 slots

In daily use

Whether you're connecting external SSDs, cameras, or USB hubs, the two rear ports deliver full 5 Gbps throughput for fast file transfers and lag-free device operation. The two internal ports are perfect for adding front-panel USB 3.0 headers, internal card readers, or even a USB-based liquid cooling controller, keeping your build tidy and your devices accessible. Hot-swap support lets you plug and unplug devices without rebooting, and the card's Plug & Play nature means no driver hunting on Windows 8 and later.

Full specifications

• Host interface: PCI Express x1 (compatible with PCIe 1.0, 2.0, 3.0, 4.0, 5.0 slots)
• USB standard: USB 3.2 Gen 1 (USB 3.0), backward compatible with USB 2.0/1.1
• Total ports: 4 (2 external Type-A, 2 internal Type-A)
• Max data transfer rate: 5 Gbps
• Controller chipset: Renesas uPD720201
• Power connector: 1x SATA 15-pin
• Form factor: Standard profile with included low-profile bracket
• Operating system support: Windows 7/8/8.1/10/11, Linux kernel 2.6.31 and newer
• Certifications: CE, FCC, RoHS
• Hot-swap: Yes
• Plug & Play: Yes

Final note

For system builders and upgraders who demand both internal and external USB 3.2 Gen 1 expansion, the InLine® 76619M delivers a robust, well-cooled solution that fits almost any case and keeps your data moving at full speed.
