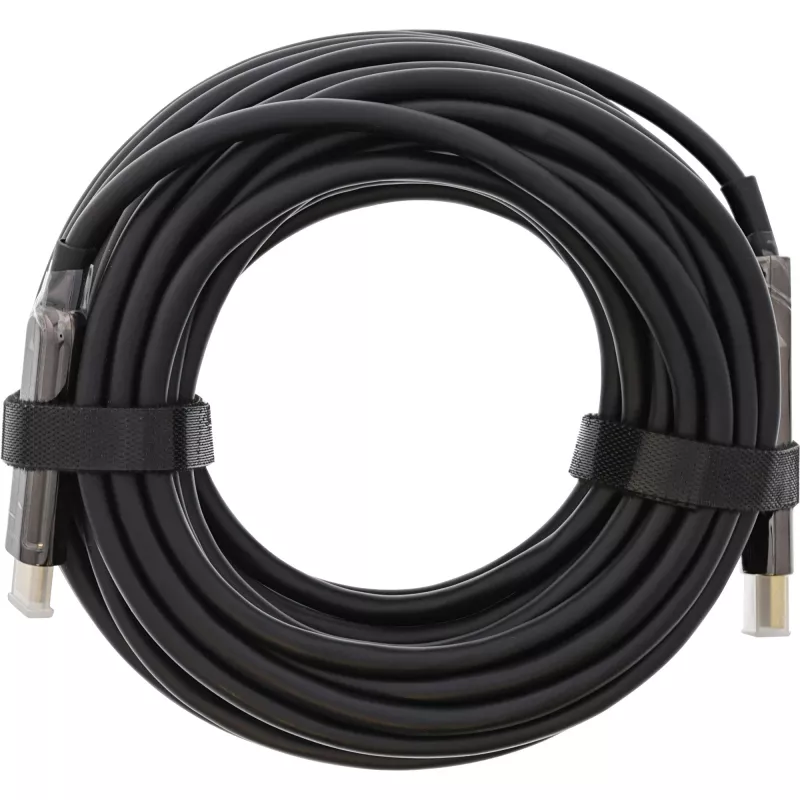

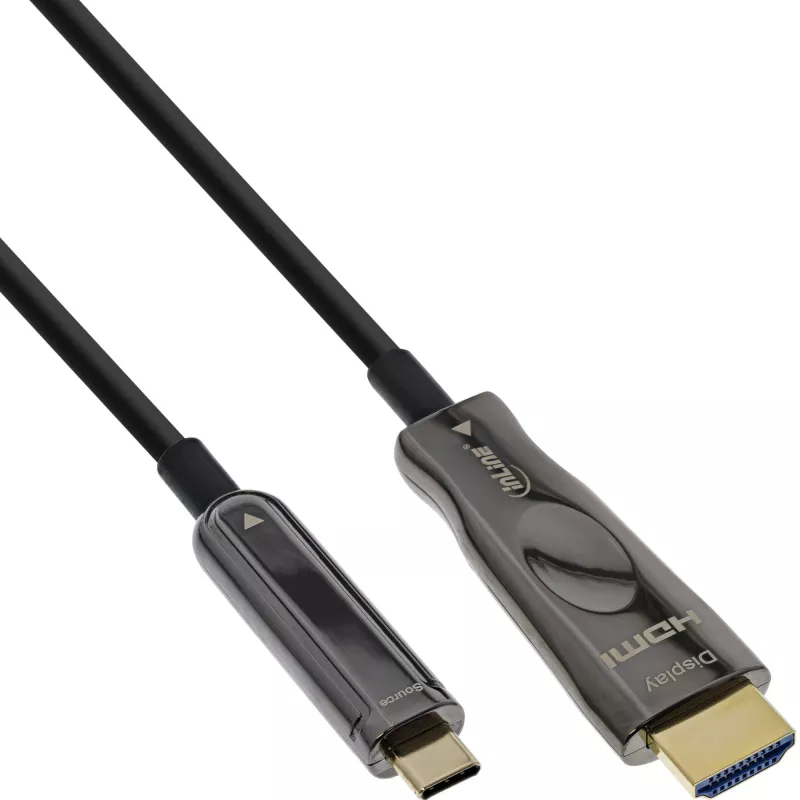

InLine USB Display AOC -kaapeli, USB-C-uros HDMI-uros (DP Alt Mode), 50 m

The InLine USB Display AOC Cable USB-C male to HDMI male 50m is a hybrid active optical cable (AOC) designed for long-distance video and audio transmission. It combines USB 3.2 Gen.2 electrical connection with optical signal transfer to maintain high bandwidth over a 50 m length. The cable supports USB Type-C DisplayPort Alternate Mode (DP1.2) and delivers resolutions up to 3840×2160@60Hz and 4096×2160@60Hz with HDR10, 3D and CEC compatibility.

Advantages

The hybrid AOC construction converts electrical data to optical signals for low-loss transmission over 50 m while copper cores carry power and low-speed data. The cable is plug-and-play with gold-plated contacts and a sturdy zinc-alloy metal connector housing. It supports EDID self-detection and operates reliably in typical indoor temperature ranges.

Suitable for

• Long-distance connection between a USB-C (DP Alt Mode) source and an HDMI display
• 4K@60Hz video distribution in conference rooms, lecture halls and digital signage
• Environments requiring a thin, flexible cable with reliable signal integrity

Key specifications

• Length: 50 m
• Connectors: USB Type-C male (input, video source) to HDMI A male (output, display)
• Standard: USB 3.2 Gen.2 hybrid active optical cable (AOC), DisplayPort Alternate Mode (DP1.2)
• Bandwidth: 10 Gb/s
• Supported resolutions: up to UHD 3840×2160@60Hz and 4096×2160@60Hz
• Features: HDR10, 3D, CEC, EDID self-detect
• Cable construction: 4-core multimode fiber (data) + 7-core copper (power/low-speed data)
• Cable jacket: round black PVC, outer diameter 5.2 mm

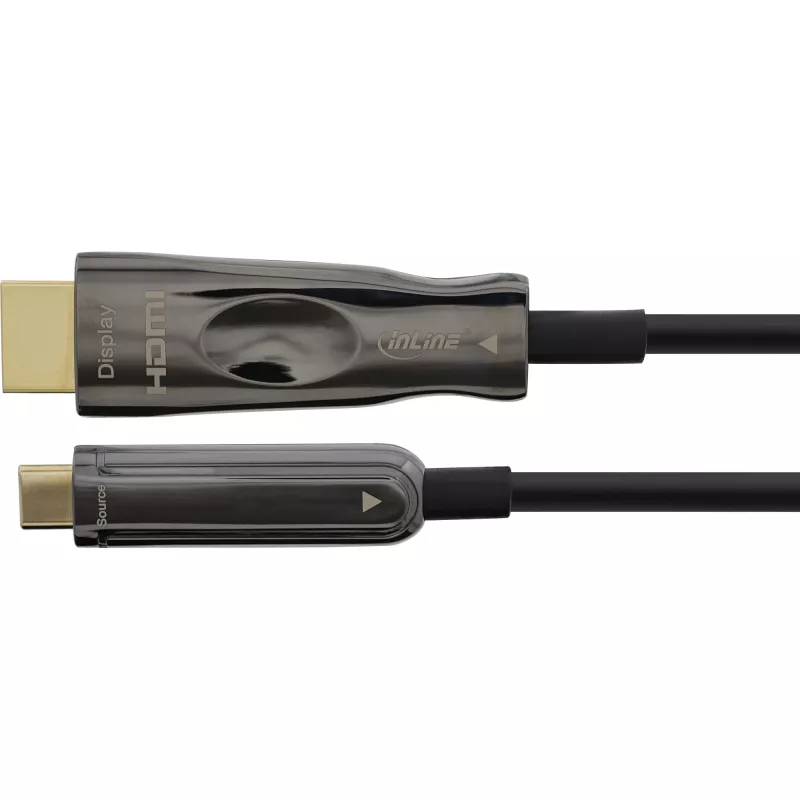

• Connector finish: gold-plated contacts, zinc-alloy housing
• Operating temperature: 0°C to +50°C; Storage temperature: -20°C to +70°C

How to use

Connect the USB-C male end to a compatible source device that supports DisplayPort Alternate Mode and plug the HDMI A male end into the display or projector. The cable is plug-and-play and requires no drivers; the AOC electronics will manage signal conversion and EDID communication automatically. Ensure both source and display support the desired resolution and HDR features.

Recommendations

For best performance, avoid sharp bends and tight coils in the 50 m cable run, maintain ambient operating temperatures within the specified range, and ensure the source device supports DP1.2 over USB-C. Use proper cable routing and strain relief to protect connectors and the zinc-alloy housing.
