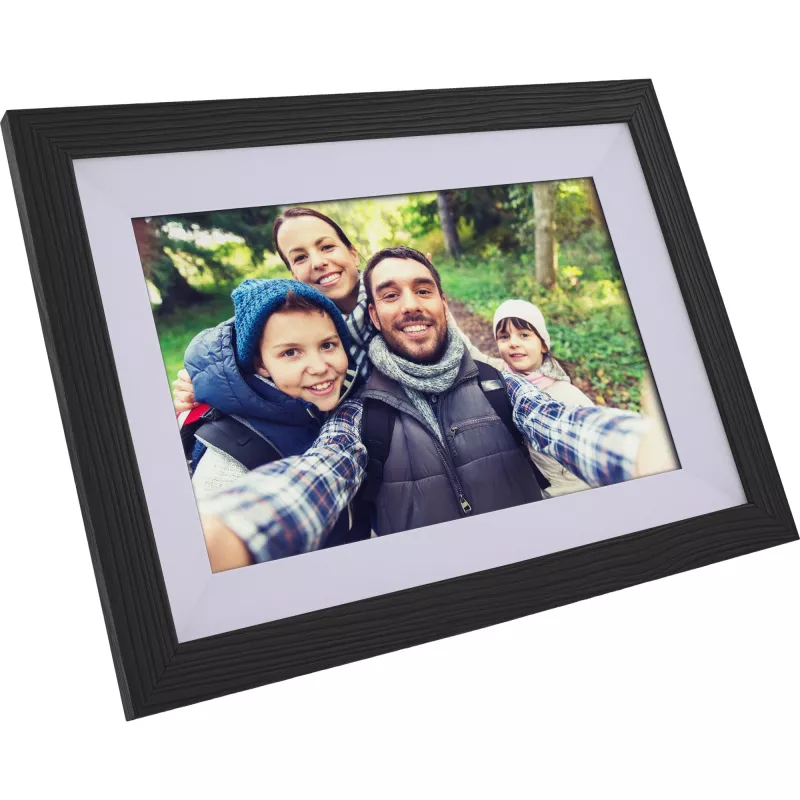

InLine WiFi-valokuvakehys WiFRAME 2, 10,1" 1920x1200 16:10 IPS kosketusnäyttö, Frameo APP

Intelligent image transmission via Wi-Fi:Photos and videos can be sent directly via app worldwide – ideal for family, customers or visitor areas.
High image quality with IPS technology:The 10.1-inch display with 1920x1200 pixels and touchscreen impresses with brilliant colours and stable viewing angles.
Flexible storage options:Supports USB-C, microSD cards up to 128 GB and offers 16 GB of internal memory – for easy data management.
Easy integration with the Frameo app:The pre-installed app is multilingual, intuitive to use and enables personalised slideshows.

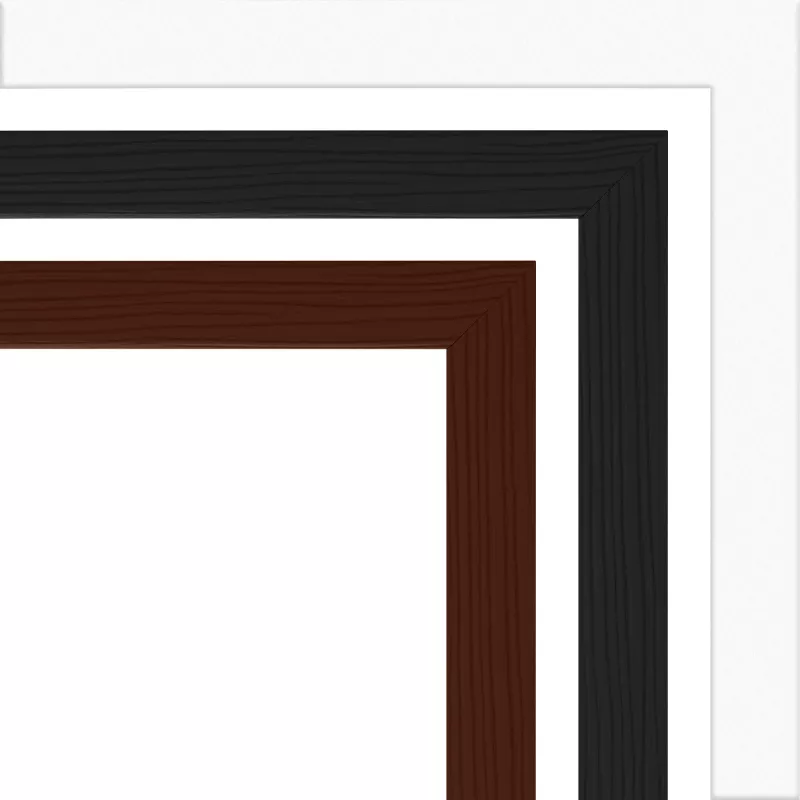

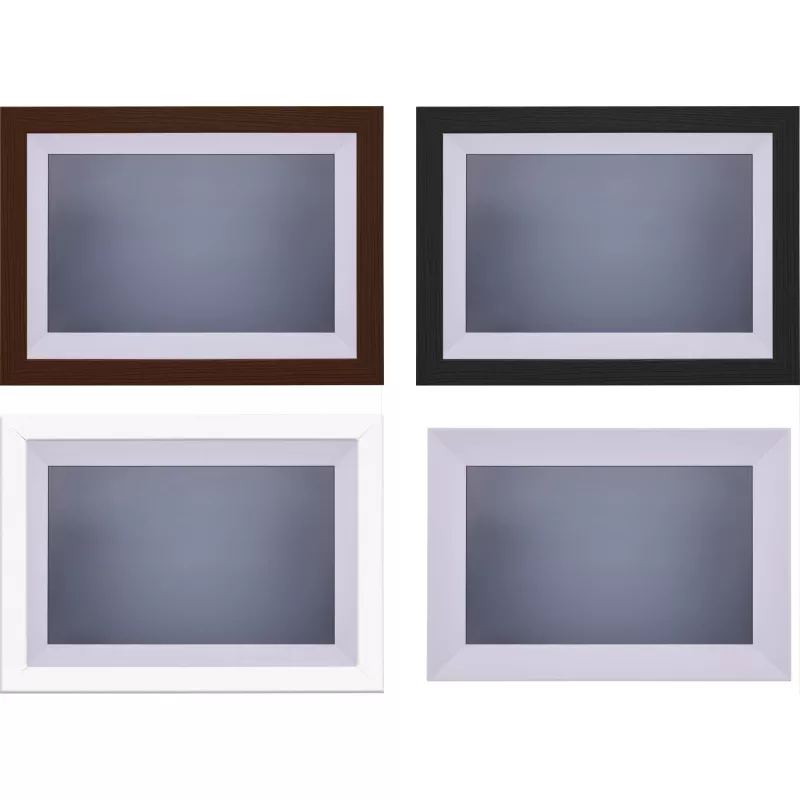

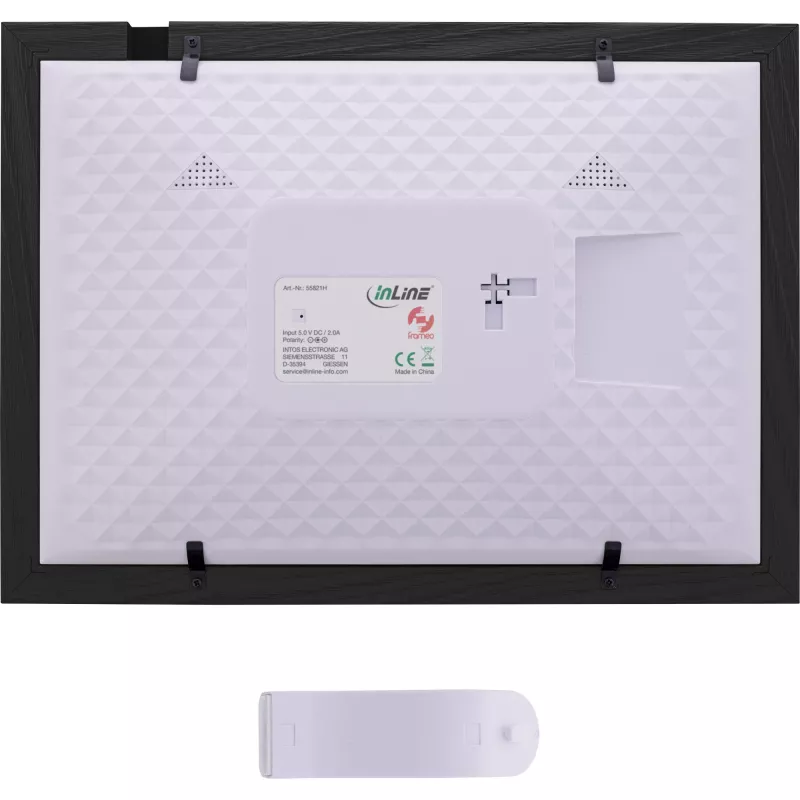

Customisable design with interchangeable frames:Three frames in different wood finishes offer flexible adaptation to interiors or corporate design.

The InLine® WiFrame 2 is the smart solution for professional use of digital image and video presentations. With its high-resolution IPS touchscreen (1920x1200) in 16:10 format, the WiFi picture frame is ideal for use in reception areas, sales areas or care facilities. Photos and videos can be sent directly via app and displayed on the device worldwide – an efficient way to communicate in real time. The Frameo app is pre-installed, available in multiple languages and particularly user-friendly.
The technical specifications include 1 GB RAM, 16 GB internal flash memory and connection options via USB-C and microSD cards up to 128 GB. The quad-core processor ensures smooth playback, while integrated 2x1 watt speakers provide acoustic support for media content. Thanks to its flexible design with three interchangeable outer frames in different wood finishes, the WiFrame 2 can be easily adapted to any environment. The portrait or landscape format allows for a wide range of usage scenarios.
WiFi picture frame:

CPU: RK3128 quad-core processor with 1.2 GHz
Memory: 1 gigabyte RAM, 16 gigabytes flash
Operating system: Android 6.0

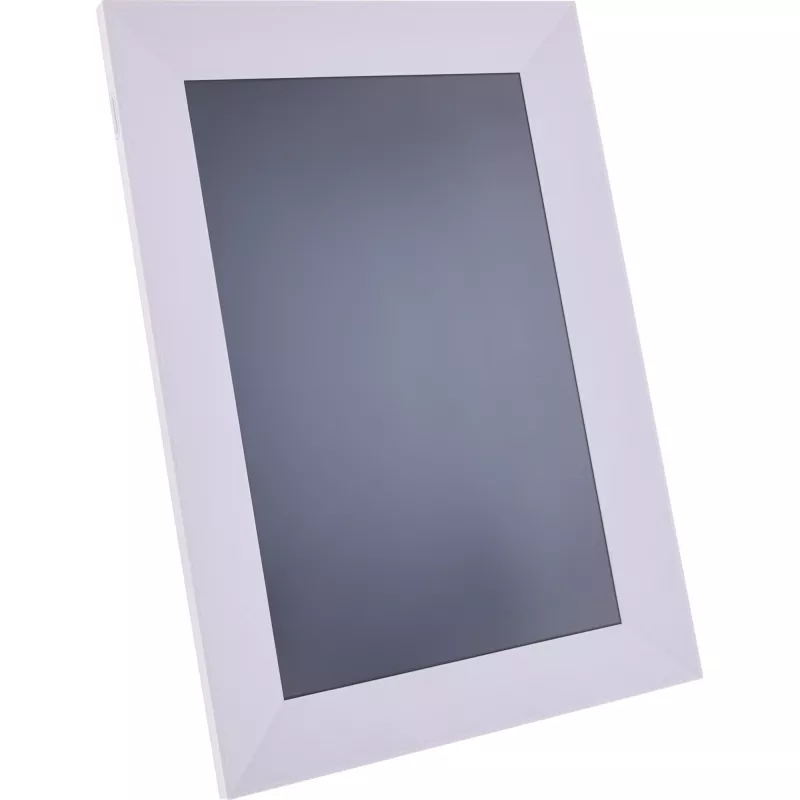

LCD screen: 10.1" IPS panel with touch function
Resolution: 1920x1200
Aspect ratio: 16:10
Contrast: 800:1
Brightness: 250 cd/m²
WiFi: 802.11b/g/n

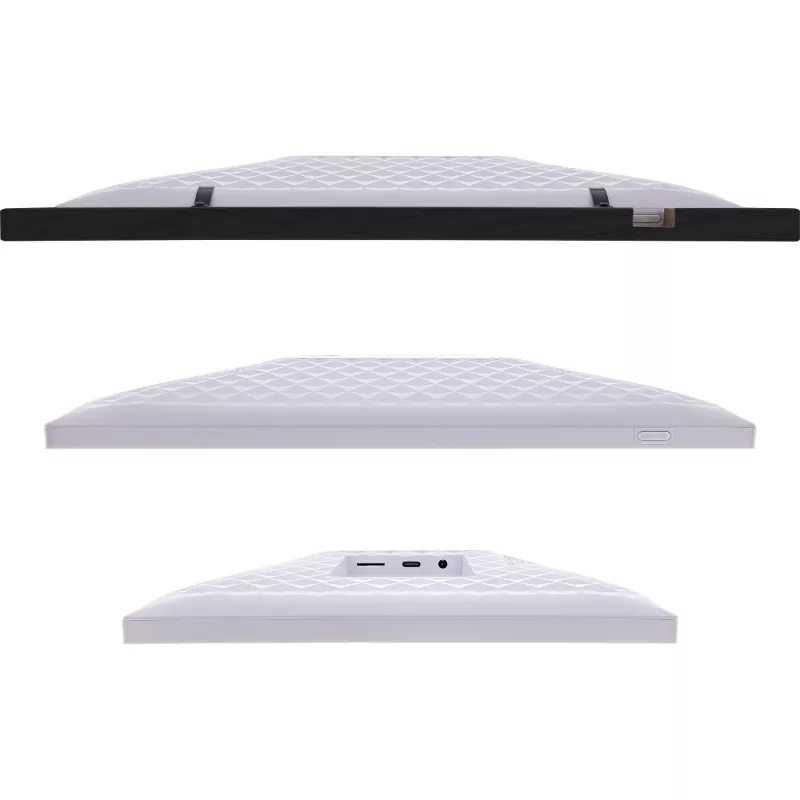

Inputs: USB-C, card slot for microSD cards with up to 128 GB (FAT32)
Built-in speakers with 2x1 watt
Supported video formats: MP4, 3GP, MOV
Supported image formats: jpeg, jpg, png, heic
Pre-installed Frameo app, multilingual
Power supply: DC 5.0V / 2.0A
Power consumption when switched off: 0.06W
Power consumption in networked standby mode: 1.39W
Dimensions WxHxD: approx. 268x188x33mm (without outer frame), approx. 298x216x41mm (with outer frame)
Weight: approx. 545g (without outer frame), approx. 718g (with outer frame)
Energy efficiency class (EEK): E

Power supply:

Input voltage, input AC frequency: 100-240V, 50/60Hz
Average efficiency in operation: 79.1%
Efficiency at low load (10%): 76.6%
Power consumption at zero load: 0.06W

InLine WiFi photo frame WiFRAME 2, 10.1" 1920x1200 16:10 IPS Touch, Frameo APP. Processor model: RK3128. Product colour: Grey, Display diagonal: 25.6 cm (10.1"), Country of origin: Germany. Video formats supported: 3GP, MOV, MP4. Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n). Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

How to use

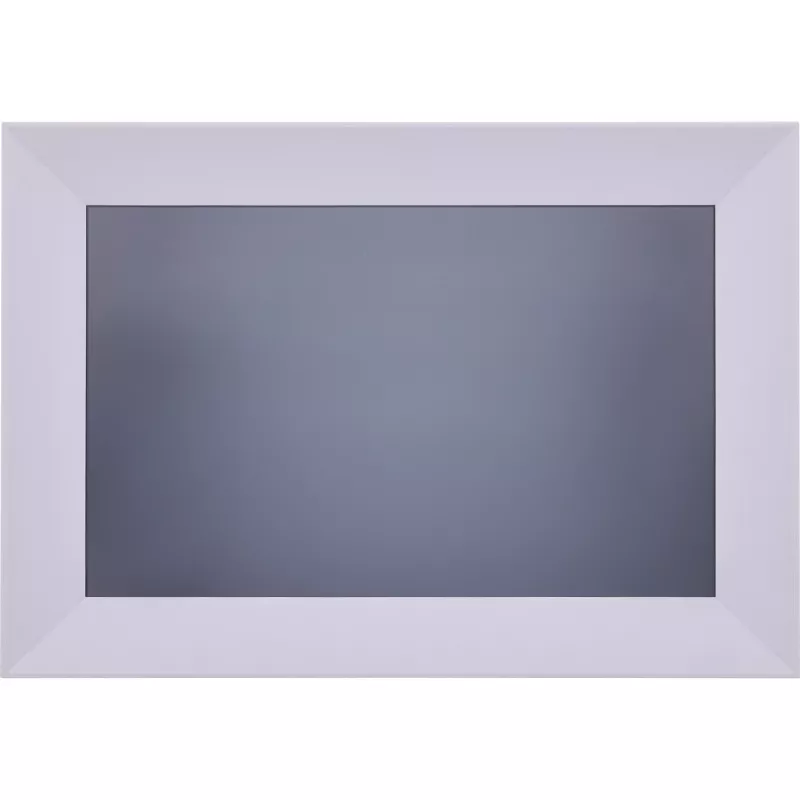

Unpack the frame and choose whether to install one of the three interchangeable front frames or use the device without an outer frame. Connect the power supply (DC 5.0 V / 2.0 A) and complete the initial setup using the touch display. Connect the frame to a local Wi‑Fi network and use the preinstalled Frameo app to link smartphones. Transfer images and videos from a phone, insert a microSD card or connect a USB-C storage device to display media files.

Recommendations

For stable streaming and fast uploads from smartphones, use a reliable 2.4 GHz Wi‑Fi network (802.11b/g/n). Format microSD cards as FAT32 before use and keep the device firmware/app updated. Position the frame away from direct sunlight to maintain screen visibility and longevity.
