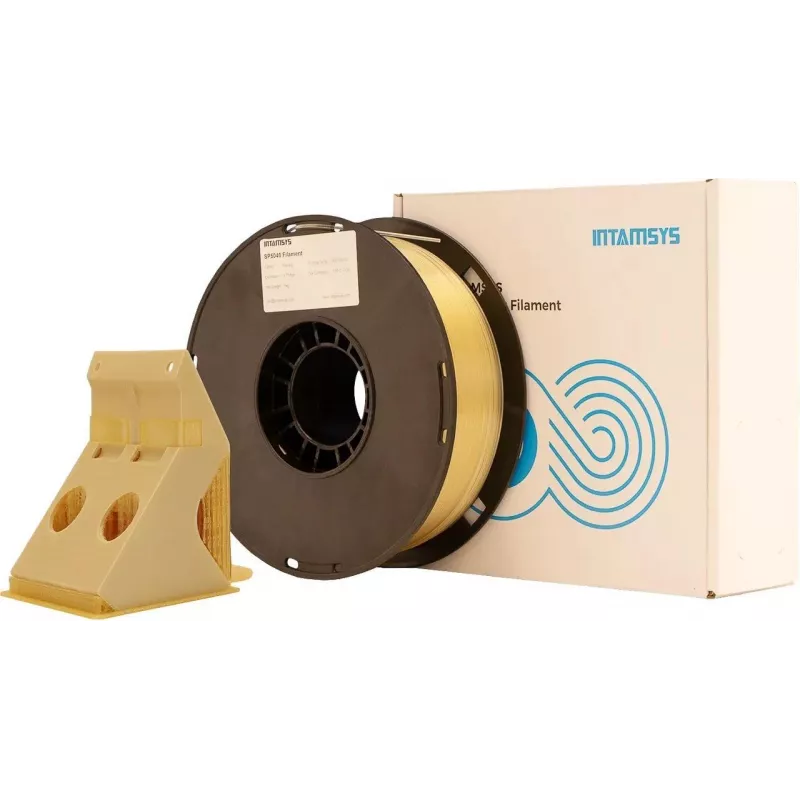

INTAMSYS SP5040 PEKK 3D-filamentti 1,75mm luonnonvalkoinen 1kg

The INTAMSYS SP5040 3D Filament is a high-performance Polyetherketoneketone (PEKK) material designed for demanding industrial applications. With a diameter of 1.75 mm and a net weight of 1 kg, this natural-colored filament offers excellent mechanical properties, chemical resistance, and thermal stability. It is ideal for use in high-temperature FDM/FFF 3D printers with a heated chamber.

Advantages

PEKK filament provides superior strength, high heat deflection temperature, and outstanding chemical resistance. It is flame retardant (UL94 V-0) and offers good UV resistance, making it suitable for end-use parts in aerospace, automotive, medical, and industrial sectors.

Suitable for

• Aerospace components
• Automotive parts
• Medical devices
• Industrial high-performance parts
• Functional prototypes and end-use products

Key specifications

• Material: Polyetherketoneketone (PEKK)
• Filament Diameter: 1.75 mm
• Diameter Tolerance: ±0.03 mm
• Color: Natural
• Net Weight: 1 kg
• Recommended Extruder Temperature: 360 - 400 °C
• Recommended Build Plate Temperature: 120 - 160 °C
• Recommended Chamber Temperature: 100 - 180 °C
• Density: 1.3 g/cm³
• Tensile Strength: 90 MPa
• Elongation at Break: 5%
• Heat Deflection Temperature (HDT @ 0.45 MPa): 155 °C
• Vicat Softening Temperature: 165 °C
• Chemical Resistance: Excellent
• UV Resistance: Good
• Flame Retardancy: UL94 V-0

Recommendations

For optimal printing results, use a high-temperature 3D printer with a heated chamber. Ensure proper drying of the filament before use. Store in a cool, dry place.
