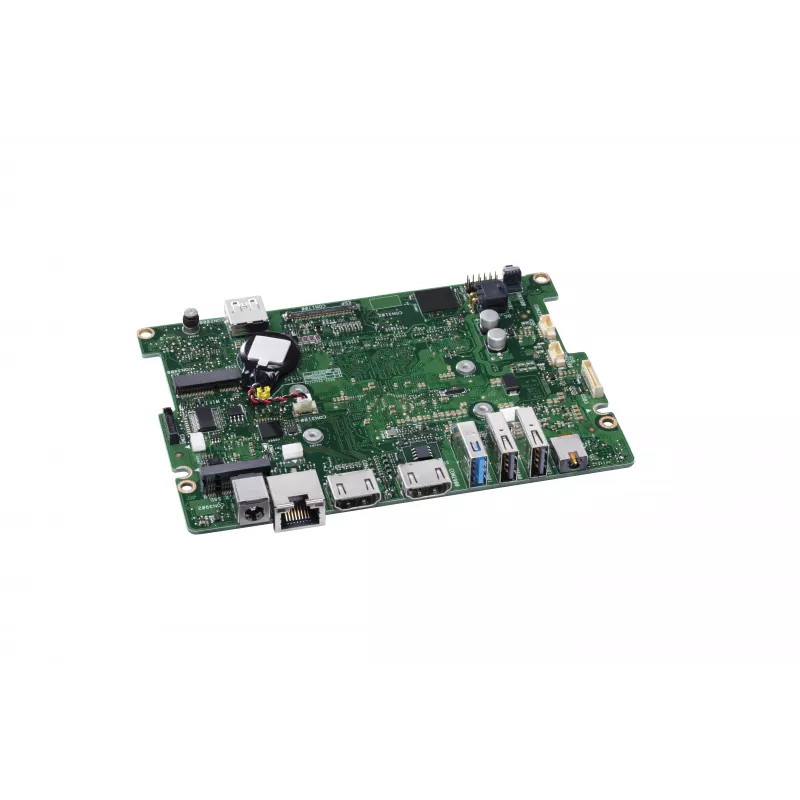

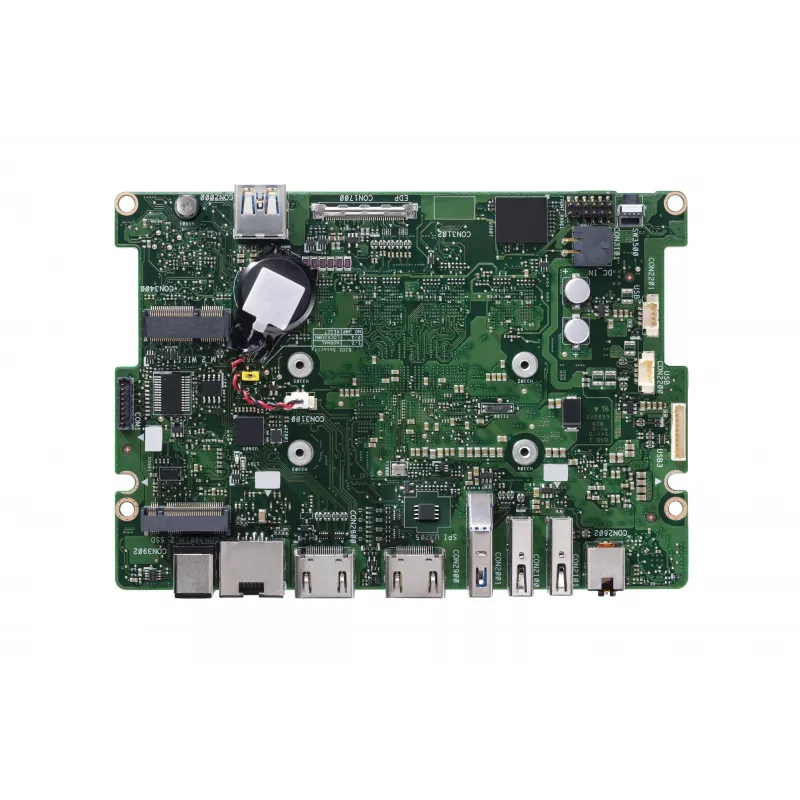

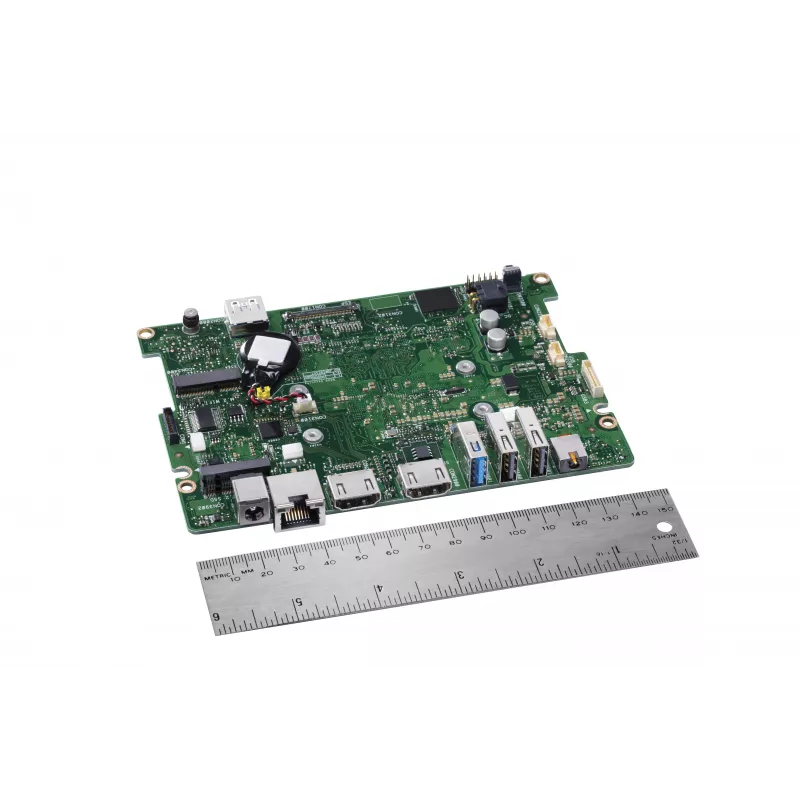

Intel NUC 8 Rugged Board NUC8CCHBN Intel Celeron N3350, 4GB RAM, 64GB eMMC

The Intel Next Unit of Computing 8 Rugged Board NUC8CCHBN is a compact and durable embedded board designed for industrial and commercial applications. Featuring an Intel Celeron N3350 dual-core processor, 4GB LPDDR4 RAM, and 64GB eMMC storage, it delivers reliable performance in a small form factor. With dual Gigabit LAN, multiple USB ports, and HDMI outputs, it is ideal for digital signage, kiosks, and IoT gateways.

Advantages

Rugged design with wide temperature range support, low power consumption, and versatile connectivity options make this board perfect for 24/7 operation in demanding environments.

Suitable for

• Digital signage and media players
• Industrial automation and control systems
• Retail kiosks and point-of-sale terminals
• IoT gateways and edge computing

Key specifications

• Processor: Intel Celeron N3350 (2 cores, 2 threads, 1.1 GHz base, 2.4 GHz burst)
• Graphics: Intel HD Graphics 500
• Memory: 4GB LPDDR4 2400MHz (onboard)
• Storage: 64GB eMMC (onboard), 1x M.2 2242/2280 slot (PCIe x2 / SATA)
• Ethernet: 2x Intel I211-AT Gigabit LAN
• Wireless: Intel Wireless-AC 3168 (802.11ac, Bluetooth 4.2)
• Video: 2x HDMI 2.0a
• USB: 2x USB 3.0 Type-A, 2x USB 2.0 internal header
• Serial: 2x RS232 internal header
• Power: 12-24V DC input
• Form Factor: UCFF (101.6 x 101.6 mm)
• Operating Temperature: 0°C to +40°C
• OS Support: Windows 10, Linux

Recommendations

For optimal performance, use with a compatible power adapter and M.2 SSD. Suitable for custom enclosures and embedded projects.
