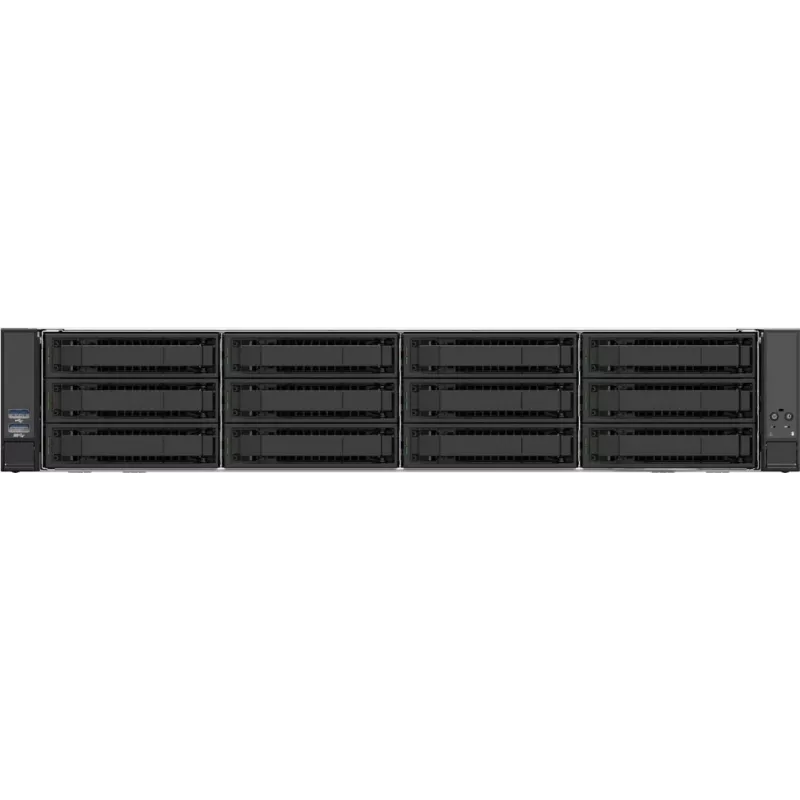

Intel Server System M50FCP2UR312 2U rack-asennus barebone Dual Xeon Scalable DDR5

The Intel Server System M50FCP2UR312 is a 2U rackmount barebone server platform designed for dual 4th Generation Intel Xeon Scalable Processors (Sapphire Rapids) with LGA4677 (Socket E) sockets and the Intel C741 chipset. Supplied without CPUs, RAM, or storage, it provides the enterprise-grade chassis, redundant power, and high-bandwidth fabric to build a powerful server tailored to the workload — whether it's virtualisation, AI inference, data analytics, or database services.

Advantages

The M50FCP2UR312 supports up to 32 DDR5 RDIMM slots per system (16 per CPU), enabling up to 8TB of ECC-registered memory for memory-intensive workloads such as in-memory databases and large-scale simulation. Twelve 3.5-inch hot-swap drive bays (SATA/NVMe) offer flexible storage configurations, while the dual 1600W Platinum-efficiency redundant hot-swap power supplies ensure continuous operation. Dual 10 Gigabit Ethernet ports provide high-bandwidth network throughput, and PCIe 5.0 expansion slots allow installation of the latest GPU, NVMe, or network accelerator cards.

Suitable for

• Enterprise IT teams building dual-socket virtualisation or cloud infrastructure nodes
• Data centres deploying AI/ML inference or GPU computing clusters on Sapphire Rapids Xeon
• High-performance computing (HPC) operators requiring maximum DDR5 memory bandwidth and PCIe 5.0 expansion

Key specifications

• Brand: Intel
• Model: Server System M50FCP2UR312
• MPN: M50FCP2UR312
• EAN: 675901976367
• Form Factor: 2U Rackmount
• CPU Sockets: 2x LGA4677 (Socket E) — supports 4th Gen Intel Xeon Scalable (Sapphire Rapids)
• Chipset: Intel C741
• Memory: 32x DDR5 RDIMM slots (16 per CPU), ECC, up to 8TB total
• Drive Bays: 12x 3.5-inch Hot-Swap SATA/NVMe
• Expansion: 4x PCIe 5.0 x16 (FHFL), 2x PCIe 5.0 x8 (LP)
• Networking: 2x 10 Gigabit Ethernet (RJ-45)
• Power Supply: 2x 1600W Redundant Hot-Swap (Platinum efficiency)
• Management: Integrated BMC with Intel RMM4 Lite support
• USB: 2x USB 3.0 (front), 2x USB 3.0 (rear)
• OS Support: Windows Server, RHEL, SUSE Linux, Ubuntu Server
• Weight: approx. 22.5 kg

How to use

Install compatible 4th Gen Intel Xeon Scalable processors in the two LGA4677 sockets, populate DDR5 RDIMM slots according to the memory population guide for optimal bandwidth, then install NVMe or SATA drives in the hot-swap bays. Connect to your network via the dual 10GbE ports and manage remotely via the integrated BMC. Install your preferred server OS from media or PXE network boot.

Recommendations

For IT professionals building dual-socket Xeon infrastructure in a 2U chassis, the Intel M50FCP2UR312 delivers a robust, flexible, and future-ready platform with redundant power and maximum memory expansion capacity.
