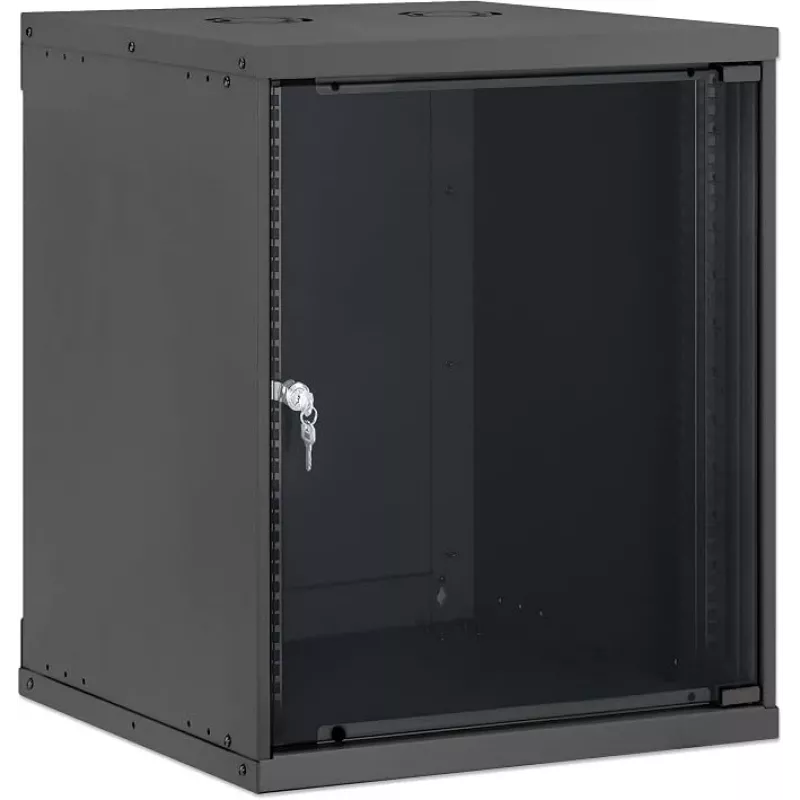

Intellinet 19 tuuman verkko seinäasennuskaappi, Basic Line, 12U, 560 mm syvyys, musta RAL 9005 716758

This 12U wall-mount cabinet stands out with its flatpack design, allowing cost-effective shipping and easy on-site assembly. It offers flexible deployment as a wall-mounted or freestanding unit when optional castors are added.

Highlights

• 12U capacity for 19" equipment
• 560 mm depth accommodates standard servers and switches
• Lockable tempered glass front door
• Removable side panels for easy access
• Adjustable mounting rails
• Passive ventilation with top and bottom cable entry
• Black finish (RAL 9005)

In daily use

The cabinet is built from SPCC steel, providing durability. The front door is lockable for security, and the side panels can be removed for convenient installation and maintenance. Ventilation is passive, and cable entry points are provided at the top and bottom. The mounting rails are adjustable to fit various equipment depths.

Full specifications

• Rack capacity: 12U
• Depth: 560 mm
• Width: 600 mm
• Height: 635 mm
• Material: SPCC steel
• Front door: Tempered glass, lockable
• Side panels: Removable
• Mounting: Wall-mountable, freestanding with optional castors
• Assembly: Flatpack (unassembled)
• Ventilation: Passive
• Cable entry: Top and bottom
• Adjustable mounting rails: Yes
• Protection rating: IP20
• Compliance: RoHS

Final note

A versatile and economical solution for organizing network equipment in small spaces.
