Intellinet Cat8.1 40G suojattu työkaluton RJ45-modulaaripistoke sininen pistoke

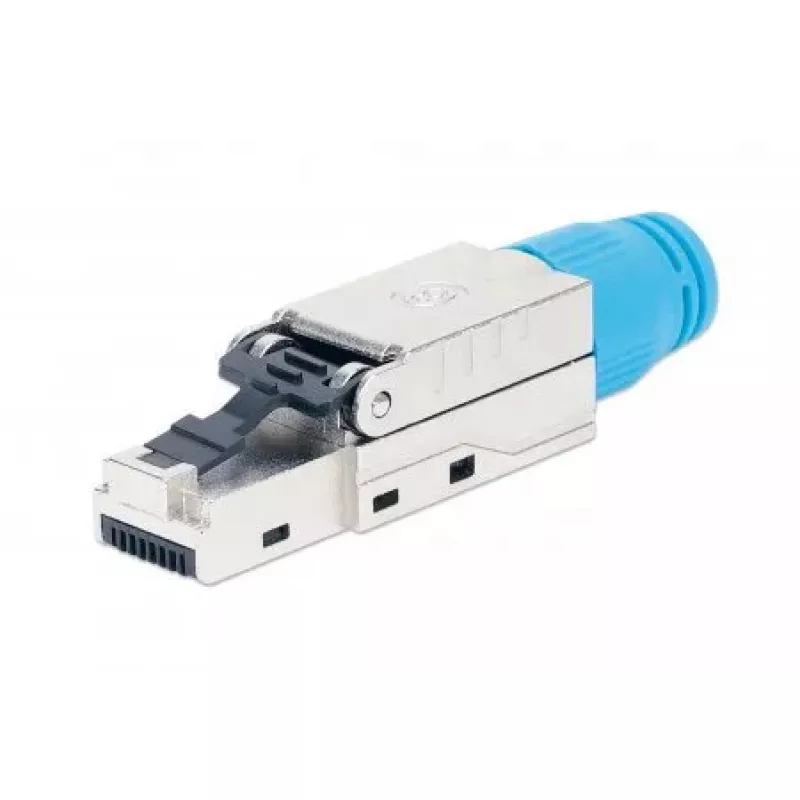

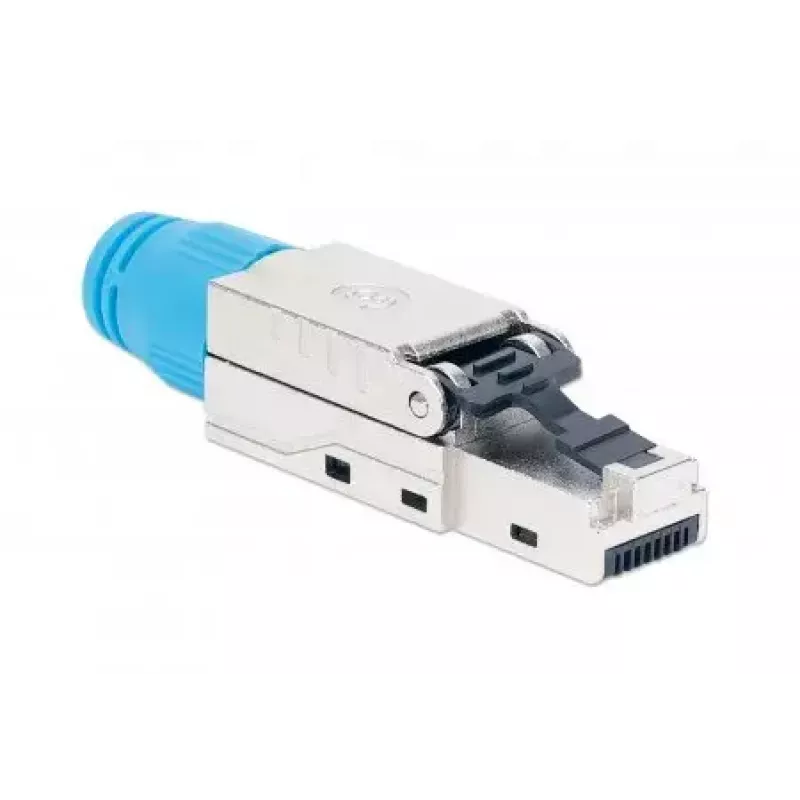

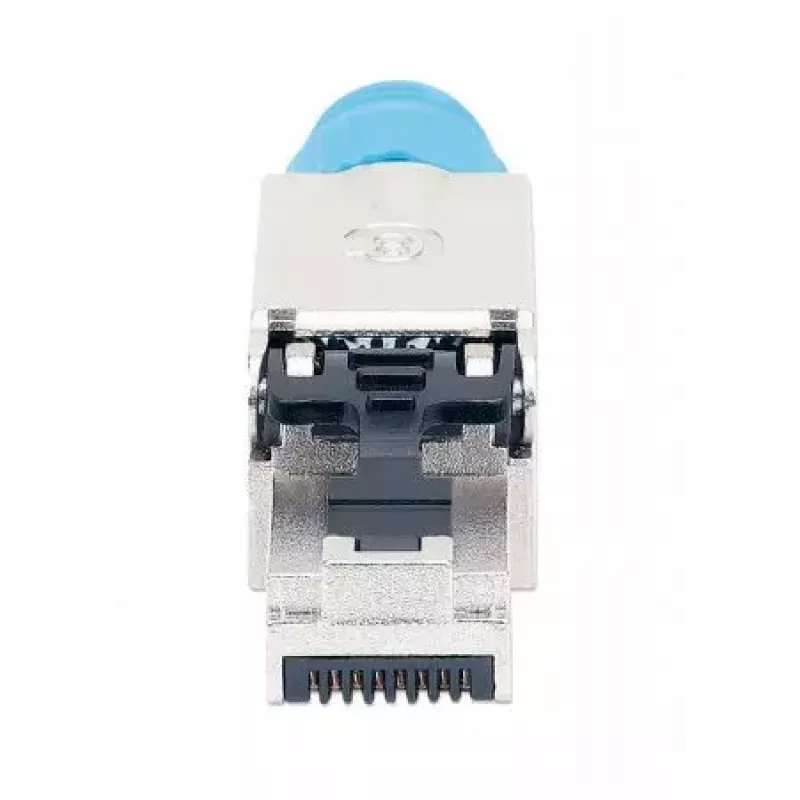

The Intellinet Cat8.1 40G Shielded Toolless RJ45 Modular Plug (Blue, male) provides a field-installable solution for fast, high-quality cable terminations in data centers and other high-density network environments. Designed for Top-of-Rack (ToR) and Middle-of-Row (MoR) installations, the plug supports both stranded and solid conductor cables and delivers shielded connections with gold-plated contacts and 360° STP protection. The compact connector measures 12 mm in width, 58 mm in depth and weighs 30 g.

Advantages

This modular plug enables tool-free assembly, allowing technicians to terminate cables in minutes without special tools. Its metal housing and full shield provide enhanced signal integrity for demanding network applications. Gold-plated contacts improve contact reliability and corrosion resistance, while compatibility with both stranded and solid conductors increases installation flexibility.

Suitable for

• Data center ToR and MoR patching and interconnects
• High-speed copper links up to 25GBase-T and 40GBase-T
• PoE installations including IEEE 802.3bt / PoE++ / 4PPoE / Ultra PoE

Key specifications

• Standard: Cat8.1
• Connector type: Shielded RJ45 modular plug (male)
• Shielding: 360° STP

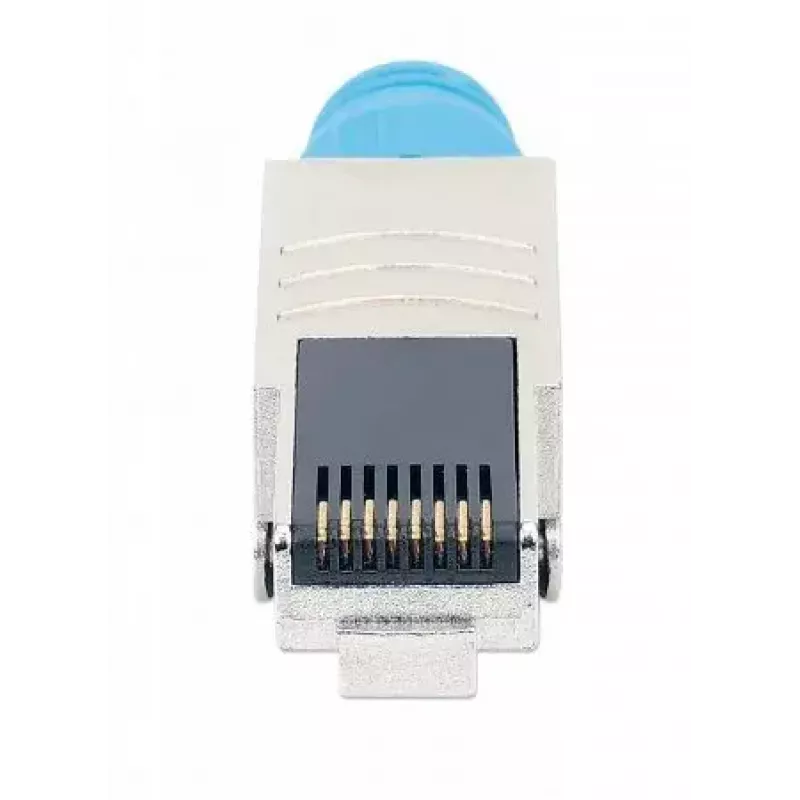

• Contacts: Gold-plated
• Compatible conductors: Solid and stranded
• Colour: Blue
• Weight: 0.03 kg
• Dimensions (W×D): 12 mm × 58 mm
• Brand: INTELLINET, MPN: 791199, EAN: 0766623791199

How to use

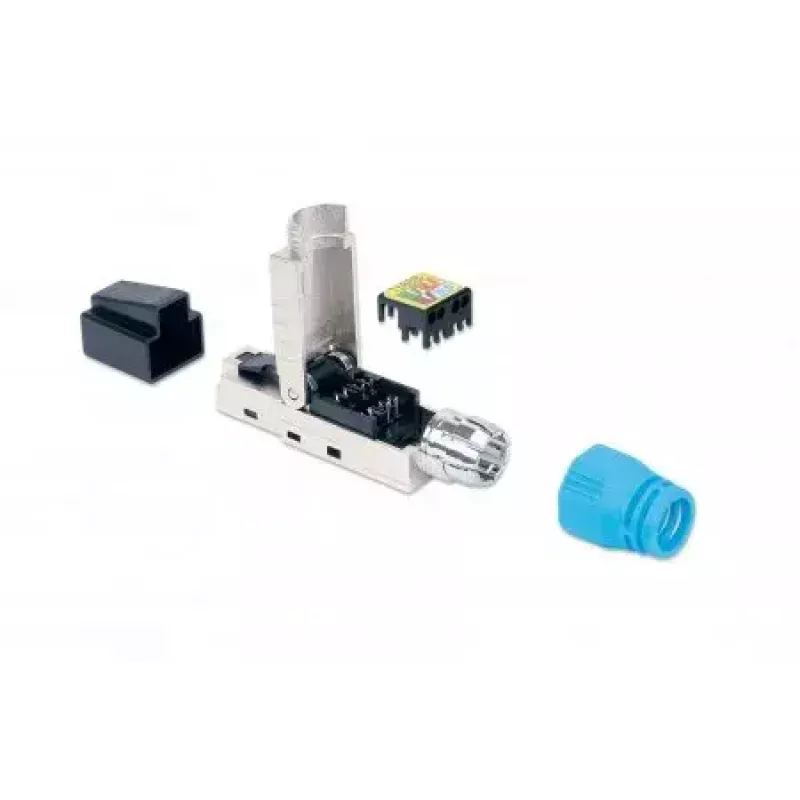

Strip the cable jacket and prepare individual conductors according to the Cat8.1 wiring scheme. Insert the prepared cable into the plug until the conductors seat into the contacts and the shield makes full contact with the metal housing. Close or secure the plug per the manufacturer's field termination sequence to ensure mechanical retention and electrical continuity. No crimping tool is required; assembly can be completed by hand following the included termination steps.

Recommendations

Use this shielded toolless RJ45 plug in controlled cable runs and in data center top-of-rack or middle-of-row deployments. Verify conductor preparation and ensure the shield is properly engaged to maintain 360° shielding. Test each terminated link with appropriate certification or validation equipment for 25G/40G performance and PoE compatibility.
