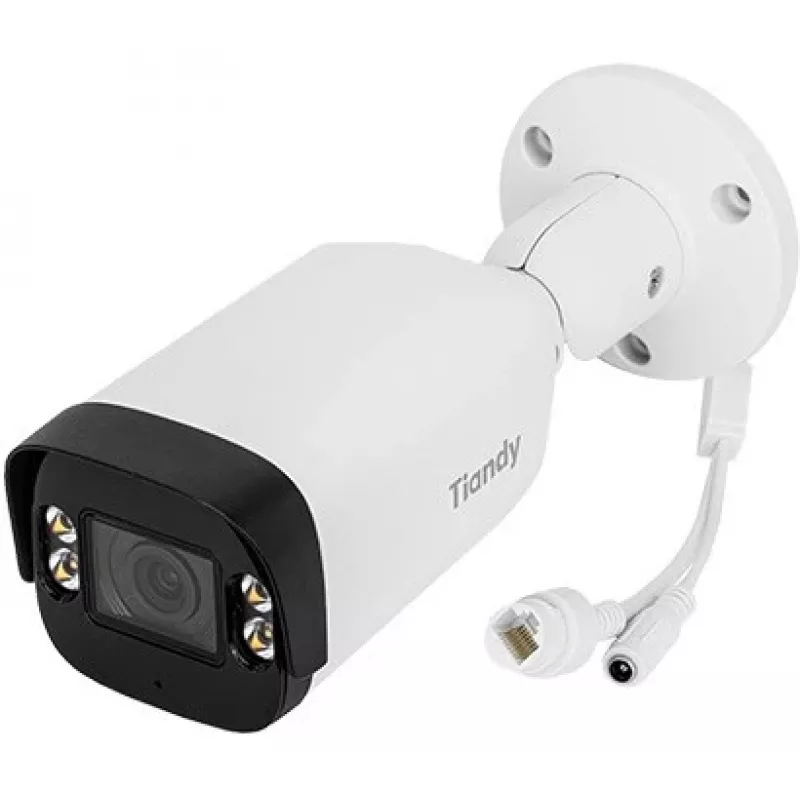

IP-kamera TC-C34UV, 4 Mpx, 4 mm

The TC-C34UV is a high-performance 4MP IP camera designed for outdoor surveillance, delivering crisp 2560x1440 resolution at 25/30fps. With a 4mm fixed lens, 120dB True WDR, and up to 30m IR night vision, it ensures clear imaging in challenging lighting conditions. Built with IP67 and IK10 ratings, it withstands harsh weather and vandalism. Powered by DC 12V or PoE (802.3af), it supports H.265/H.264 compression and includes a built-in microphone and MicroSD slot (up to 512GB).

Advantages

Exceptional image quality with 4MP resolution and 120dB WDR for high-contrast scenes. Reliable 24/7 operation with IR night vision up to 30m and robust IP67/IK10 protection. Flexible installation via PoE simplifies cabling, while H.265 compression reduces bandwidth and storage costs.

Suitable for

• Outdoor perimeter surveillance for commercial and residential properties
• Parking lots, warehouses, and building entrances
• Areas requiring high vandal resistance and weatherproofing

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Resolution: 4MP (2560x1440) @ 25/30fps
• Lens: 4mm fixed, F1.6, FoV 87.6° (H) x 46.5° (V) x 104.5° (D)
• IR Range: Up to 30m
• WDR: 120dB True WDR
• Video Compression: H.265, H.264, MJPEG
• Network: 1x RJ45 10/100M Ethernet, PoE (802.3af)
• Storage: MicroSD slot up to 512GB
• Audio: Built-in microphone
• Protection: IP67, IK10
• Power: DC 12V or PoE
• Operating Temperature: -35°C to 65°C

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. Mount in a location with clear field of view and avoid direct sunlight on the lens.
