IP-turvakamera Hikvision DS-2TD2166T-15

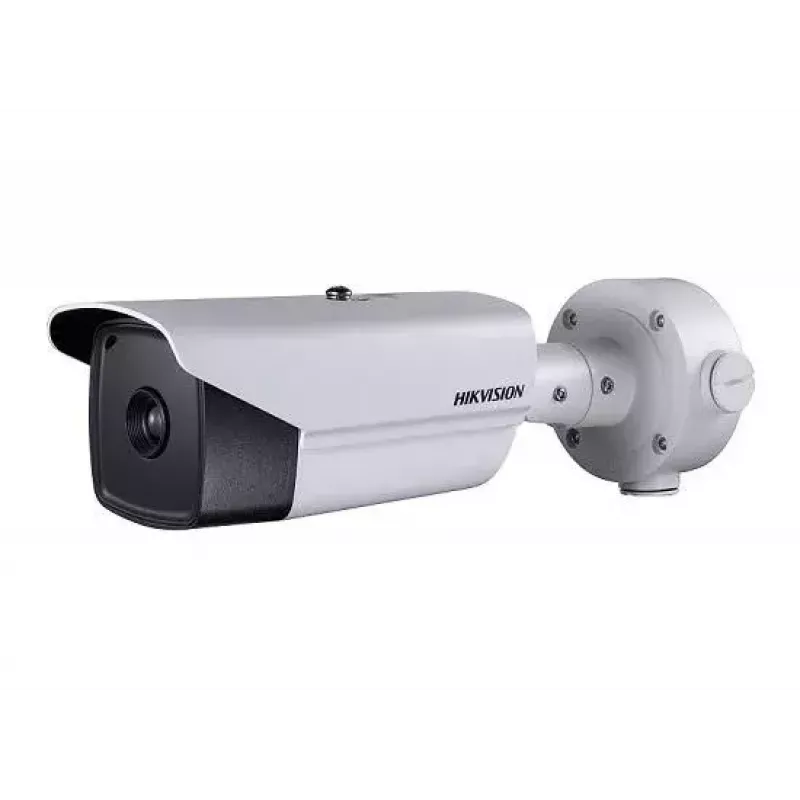

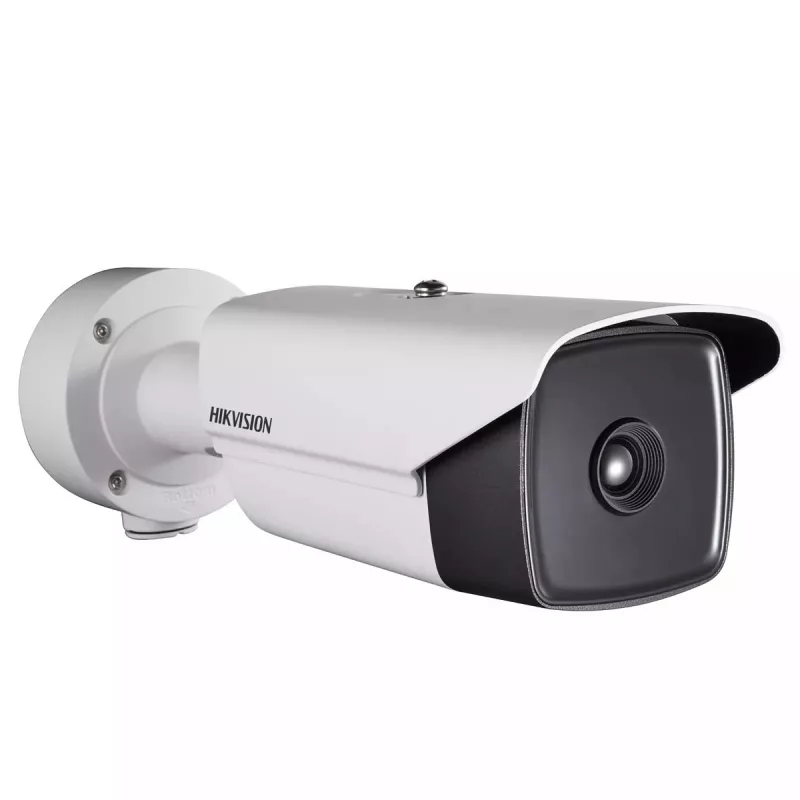

The Hikvision DS-2TD2166T-15 is an IP thermometric bullet camera designed for both indoor and outdoor surveillance. It delivers thermal imaging at a resolution of 640 x 512 pixels and includes a fixed 15 mm lens that provides a horizontal viewing angle of 39.87° and a vertical viewing angle of 32.36°. The camera supports H.264 and H.265 video compression to optimize storage and bandwidth and is supplied in a white housing suitable for ceiling or wall mounting. Integrated temperature measurement and alarm functions make it appropriate for applications that require early detection of temperature anomalies.

Advantages

The camera combines thermal imaging and video compression technologies to provide clear temperature-sensitive monitoring while reducing storage requirements. Its fixed 15 mm lens and defined viewing angles allow predictable coverage planning. Built for indoor and outdoor use, the housing supports both ceiling and wall mounting. The integrated temperature measurement system can generate alarms when predefined thresholds are crossed, aiding in rapid response to overheating or fire risks.

Suitable for

• Industrial process supervision where pyrophoric materials are handled
• Monitoring of electrical substations and power generation facilities
• Perimeter and site surveillance for temperature anomaly detection
• Indoor areas requiring fixed-angle thermal monitoring

Key specifications

• Thermal resolution: 640 × 512 pixels
• Lens: fixed 15 mm
• Horizontal field of view: 39.87°
• Vertical field of view: 32.36°
• Video compression: H.264 and H.265 supported
• Mounting options: ceiling or wall
• Housing color: white
• Functions: temperature measurement with alarm capability

How to use

Install the camera on a stable ceiling or wall surface with a mounting position that provides the intended fixed-angle coverage. Connect the camera to the network and configure IP settings via the Hikvision configuration tools or compatible network video recorder. Calibrate the temperature measurement parameters and set threshold values for alarm generation according to the monitored environment. Verify H.264 or H.265 compression settings and storage location to balance video quality and storage usage.

Recommendations

Place the camera to fully cover the critical area while ensuring the thermal scene is within the specified field of view. For reliable temperature readings, allow for regular calibration and avoid mounting where direct sunlight, steam, or reflective surfaces can distort thermal measurements. Use H.265 compression for longer retention with limited storage, and configure alarms and network monitoring to integrate with facility safety procedures.
