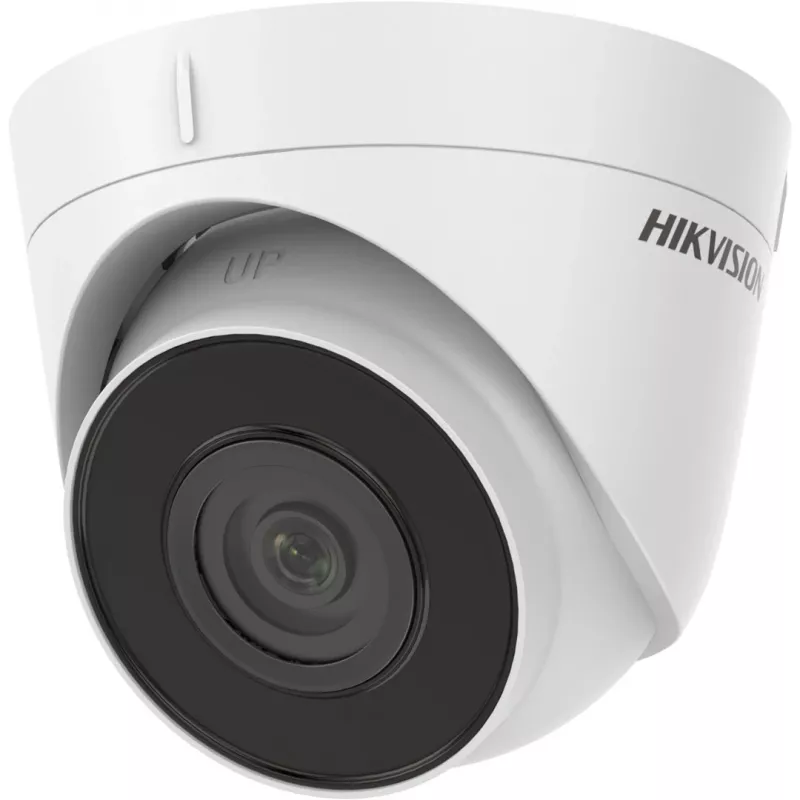

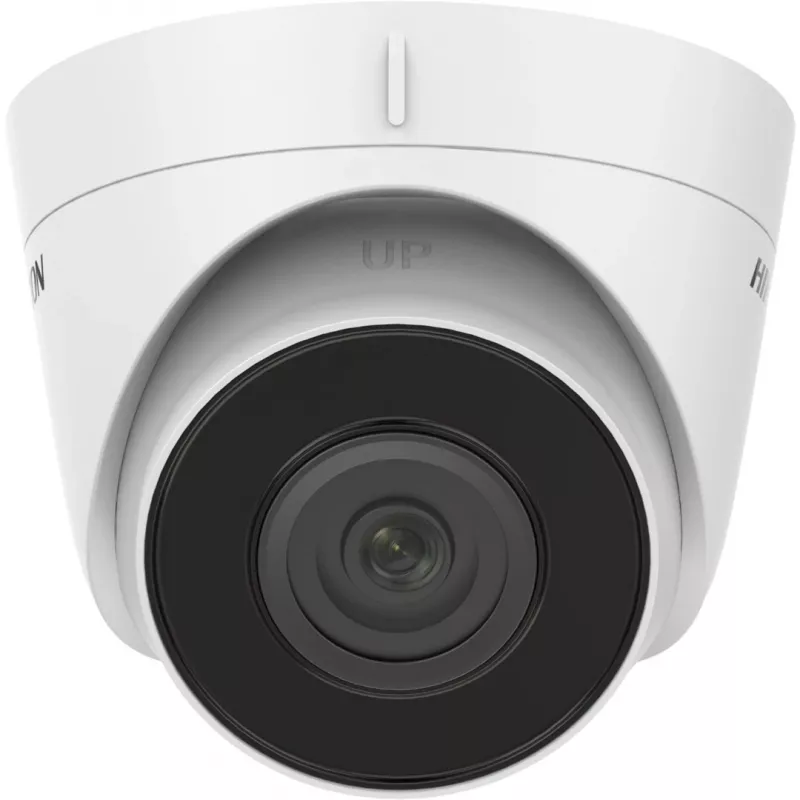

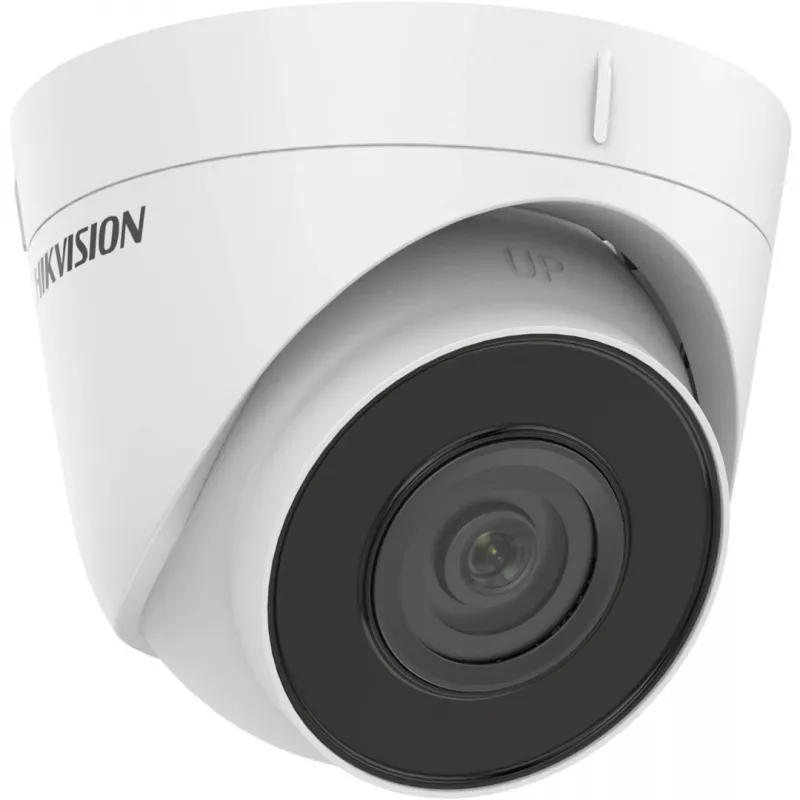

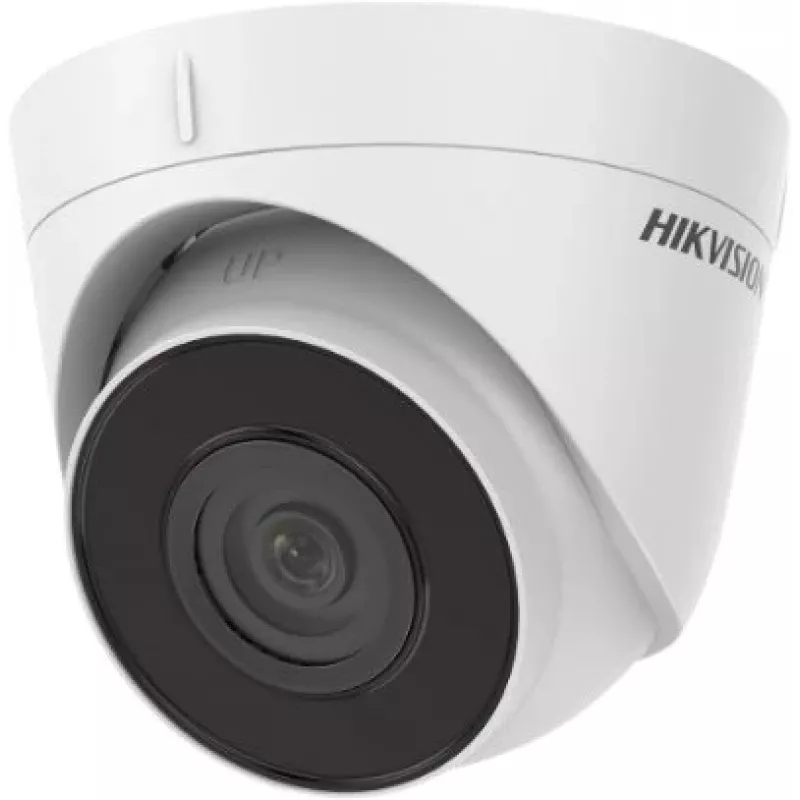

IP-valvontakamera Hikvision DS-2CD1321-I 1920 x 1080

Video compression formats: H.264+ | Number of lenses: 1 | Number of sensors: 1 | Mirror: Yes | Image quality adjustment: Brightness | Anti-flicker: Yes | Password protection: Yes | Camera pan control: Yes | Progressive scan: Yes | Pan range: 0 - 360° | Digital Wide Dynamic Range (DWDR): Yes | Optical sensor size: 25.4 / 2.7 mm (1 / 2.7") | Infra-red wavelength: 850 nm | Video streaming: Yes | Maximum aperture number: 2 | Day/night mode: Yes | DC output voltage: 12 | Video compression formats: H.265+ | Image quality adjustment: Sharpness | Noise reduction: Yes | IP address filtering: Yes | Placement supported: Outdoor | Total megapixels: 2 MP | Gain control type: Auto | Camera tilt control: Yes | Sensor type: CMOS | Video compression formats: H.265 | Languages support: Ukrainian | Video compression formats: M-JPEG | Image quality adjustment: Contrast | Noise reduction technology: 3D noise reduction | Night vision: Yes | Video compression formats: H.264 | Heartbeat: Yes | Camera shutter speed: 1/3 - 1/100000 s | Region of Interest (ROI) encoding: Yes | Languages support: English | HTTPS encryption: Yes | DC output current: 0.4 A | Number of users: 32 user(s) | Number of languages: 2 | Power consumption (Power over Ethernet (PoE)): 6.5 W | Image quality adjustment: Saturation | Infrared (IR) cut-off filter: Yes | Built-in HDD: No | Video motion detection: Yes | Privacy masking: Yes | Mounting type: Ceiling/wall | Frame rate: 30 fps | Fixed focal length: 2.8 mm | Digital watermark: Yes | Package height: 141 mm | Connectivity technology: Wired | Ethernet LAN (RJ-45) ports: 1 | Package width: 150 mm | Maximum resolution: 1920 x 1080 pixels | Supported graphics resolutions: 640 x 480 (VGA) | Power source type: DC, PoE | Ethernet LAN: Yes | Tilt angle range: 0 - 75° | International Protection (IP) code: IP67 | Form factor: Turret | Operating temperature (T-T): -30 - 60 °C | Supported graphics resolutions: 1920 x 1080 (HD 1080) | Package weight: 556 g | Weight: 320 g | Supported graphics resolutions: 1280 x 720 (HD 720) | Operating relative humidity (H-H): 0 - 95% | Supported graphics resolutions: 1280 x 960 | Wi-Fi: No | Storage relative humidity (H-H): 0 - 95% | Power consumption (max): 5 W | Networking standards: IEEE 802.3af | Type: IP security camera | Networking standards: IEEE 802.1x | Supported graphics resolutions: 320 x 240 | Supported graphics resolutions: 640 x 360 | Viewing angle, vertical: 60° | Web-based management: Yes | Bluetooth: No | Product colour: White | Height: 85.3 mm | Housing material: Plastic | Housing material: Metal | Quality of Service (QoS) support: Yes | Package depth: 150 mm | Storage temperature (T-T): -30 - 60 °C | Bit rate: 32 Kbps - 8 Mbps | LED type: IR | Ethernet interface type: Fast Ethernet | Number of cameras: 1 | Diameter: 11 cm | Night vision distance: 30 m | Angle of rotation: 360° | Back Light Compensation (BLC): Yes | Wide Dynamic Range (WDR): Yes

How to use

Install the camera on a stable ceiling or wall surface using appropriate screws and anchors for the mounting location. Aim the turret to cover the intended field of view and secure the housing to prevent movement. Connect the camera to your network via Ethernet cable to provide both data and, where applicable, power through the network infrastructure. Configure the camera’s IP settings, frame rate, resolution and motion detection parameters through the compatible Hikvision management software or network video recorder interface. Verify the live view and recording settings, then adjust angle and motion sensitivity as needed for reliable detection.

Recommendations

For optimal outdoor performance, mount the camera under a small overhang where possible to reduce direct exposure to rain and sun. Use shielded Ethernet cabling and surge protection for installations exposed to frequent electrical storms. Periodically check the lens for dirt or condensation and recalibrate the viewing angle after any maintenance. When using motion detection, set activity zones and sensitivity to reduce false alerts from trees or traffic.
