IP-valvontakamera Hikvision DS-2TD2628-10/QA Bullet ulkokäyttöön

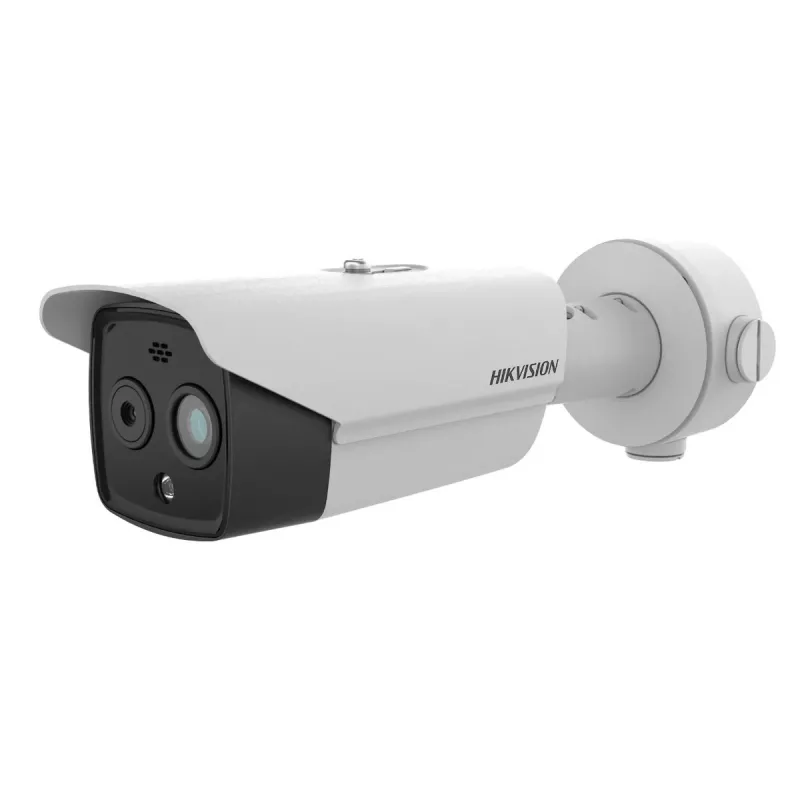

The Hikvision DS-2TD2628-10/QA Bullet Outdoor is a thermal and optical bi-spectrum network IP security camera designed for outdoor perimeter monitoring. It combines a thermal module with an 18 x 13.5° field of view and an optical sensor with 2688 x 1520 resolution and a horizontal lens viewing angle of 39.4°. The camera supports wired Ethernet connectivity, ceiling or wall mounting, and provides low-light capability down to 0.0035 lx. It is intended for applications requiring both thermal detection and visible-light imaging, including long-range detection up to 1239 m.

Advantages

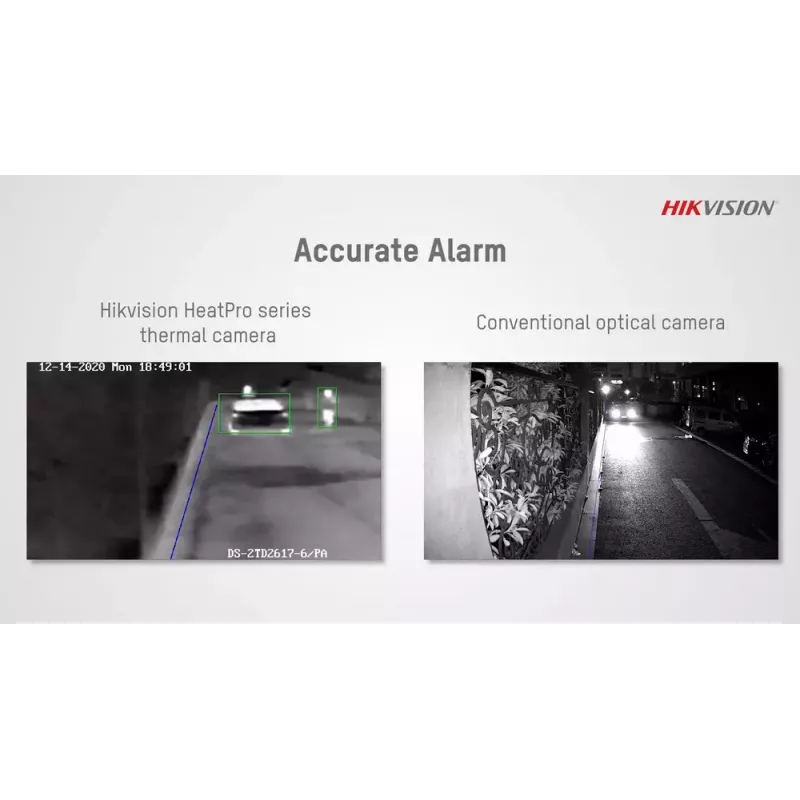

The camera integrates thermal and optical imaging in one housing, enabling temperature exception alarms for early fire prevention alongside high-resolution visual recording. Deep learning algorithms improve VCA (video content analysis) accuracy for perimeter protection and real-time alarm generation. Physical design and IP-camera features support outdoor installation with wired Ethernet connectivity and a compact white bullet form factor.

Suitable for

• Perimeter protection for villas and residential communities
• Parking lots and warehouses
• Construction sites and manufacturing workshops
• Environmental and industrial locations such as waste incineration plants

Key specifications

• Model: Hikvision DS-2TD2628-10/QA
• Sensor: CMOS optical sensor; thermal module with 18 x 13.5° FOV
• Resolution (optical): 2688 x 1520 pixels
• Focal length: fixed 8 mm; horizontal viewing angle 39.4°
• Digital zoom: 4×
• Detection range: up to 1239 m (thermal detection)
• Minimum illumination: 0.0035 lx
• Frame rate: 30 fps
• Connectivity: wired Ethernet (no Wi‑Fi)
• Mounting: ceiling or wall
• Placement: outdoor
• Color: white
• Weight: 1.55 kg

How to use

Mount the Hikvision DS-2TD2628-10/QA on a suitable ceiling or wall bracket ensuring a clear field of view for both the thermal and optical sensors. Connect the camera to a wired Ethernet network for power and data (PoE if supported by your system) and configure the device through the Hikvision management software or compatible VMS. Calibrate temperature alarm thresholds if thermal temperature exception alerts are required, and set VCA rules for perimeter detection to receive real-time alarms.

Recommendations

Install at a stable, vibration-free location with unobstructed sightlines and proper weather protection. Regularly verify firmware updates and test thermal alarm thresholds under expected environmental conditions to minimize false alarms. For long-range detection, ensure correct mounting height and clear background contrast for optimal thermal performance.
