IP-valvontakamera Hikvision IDS-2CD7A46G0/P-IZHSY

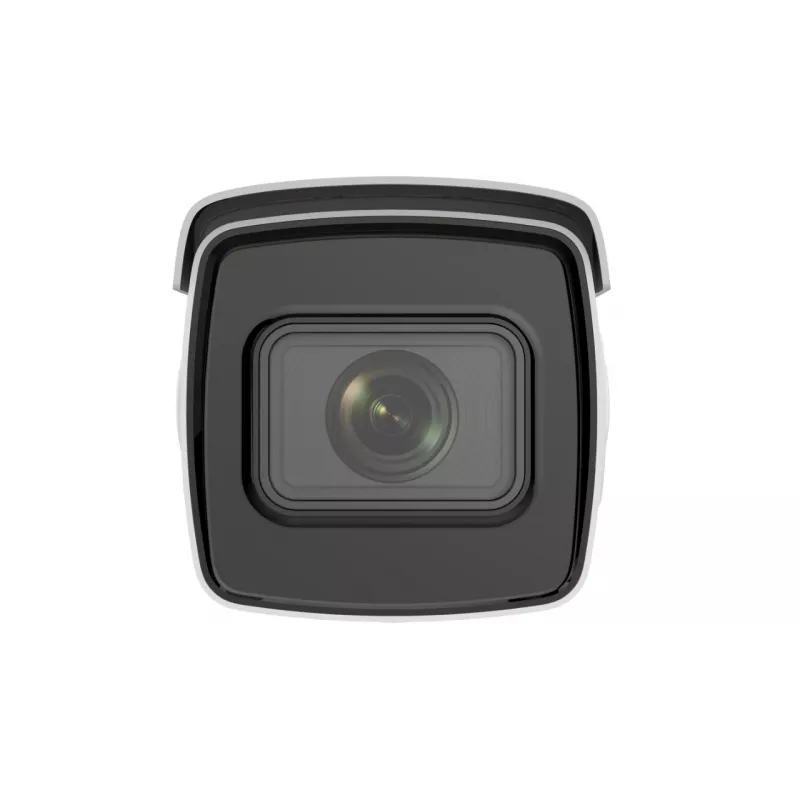

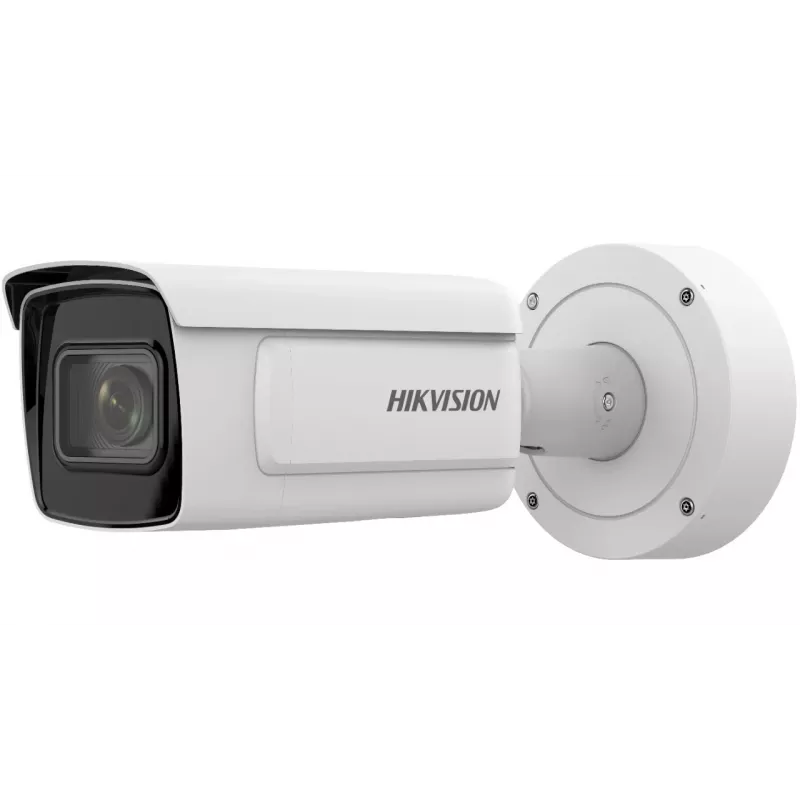

The Hikvision IDS-2CD7A46G0/P-IZHSY is an outdoor bullet IP security camera that captures 2688 x 1520 resolution images using a CMOS sensor. Designed for ceiling or wall mounting, this wired camera offers a motorized/manual focus lens with an 8–32 mm focal length range and a wide horizontal field of view of 114.5° and vertical field of 59.3°. Its white housing and robust build make it suitable for exterior surveillance installations where fixed-position monitoring with adjustable zoom and focus is required.

Advantages

This Hikvision camera combines a 4 MP image sensor with a motorized/manual focus lens to deliver detailed footage and flexible framing. The broad horizontal and vertical viewing angles reduce the need for multiple cameras in many applications. Wired connectivity ensures stable data transmission, and the camera’s outdoor-ready design supports ceiling or wall mounting. The white finish integrates with many architectural styles while the camera’s physical dimensions and weight support straightforward installation.

Suitable for

• Perimeter and exterior building surveillance
• Parking lots and gated areas monitoring
• Entranceways and loading docks observation
• Commercial facility outdoor coverage

Key specifications

• Image resolution: 2688 x 1520 pixels (4 MP)
• Sensor type: CMOS
• Lens: motorized/manual focus, focal length 8–32 mm
• Field of view: 114.5° horizontal, 59.3° vertical
• Mounting: ceiling or wall mount compatible
• Connectivity: wired network connection
• Color: white
• Weight: 1.95 kg

How to use

Mount the camera on a stable ceiling or wall surface using appropriate fasteners and ensure the housing is oriented for the required coverage area. Connect the camera to a compatible PoE switch or separate power and network sources according to the installation environment and local wiring standards. Use the motorized focus controls or manual adjustment to set the desired focal length between 8 and 32 mm and confirm framing through the recorder or camera web interface. Configure network settings, resolution, and recording parameters on the NVR or management software before placing the camera into regular operation.

Recommendations

For consistent image quality, mount the camera at a height and angle that minimizes direct sunlight and glare, and keep the lens clean from dust and debris. Use a stable wired network connection and compatible Hikvision management software or NVR for optimal configuration, recording, and remote access. For installations exposed to severe weather, verify that mounting hardware and cabling are rated for outdoor use and installed with proper sealing to prevent moisture ingress.
