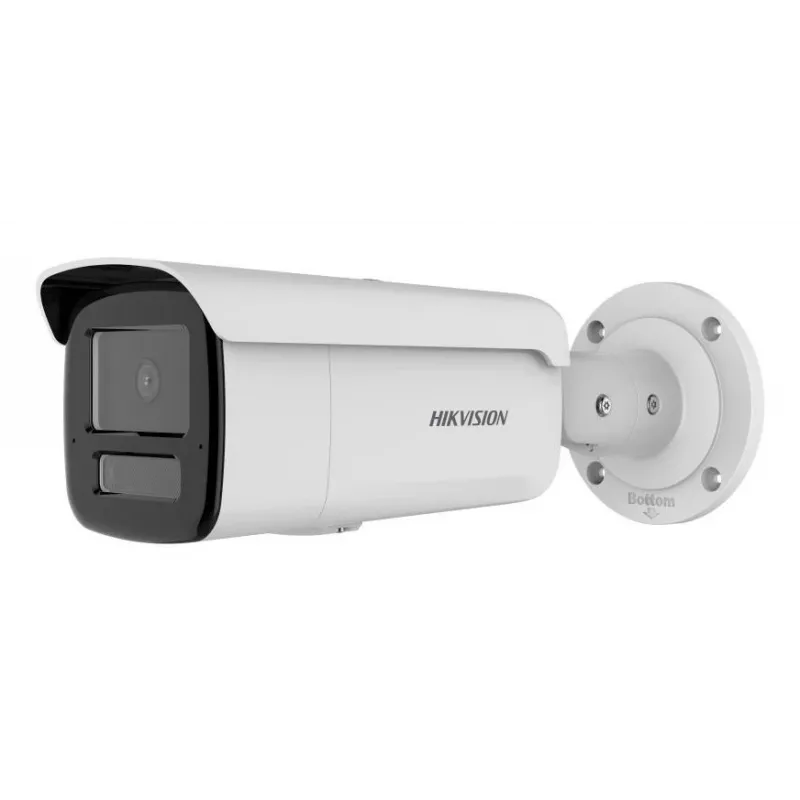

IP-valvontakamera Hikvision Pro Series DS-2CD2T43G2-4LI(2.8MM)

Certification: FCC (47 CFR 15, B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: 6, 2016) KC (KN 32: 2015, KN 35: 2015) | Web browser: Yes | Observe distance: 25 m | Languages support: Multi | Fixed focal length: 2.8 mm | Video recording: Yes | Heartbeat: Yes | Detect distance: 63 m | Maximum aperture number: 1.6 | DC output current: 0.83 A | Number of users: 32 user(s) | Compatible memory cards: MicroSD (TransFlash) | Recognize distance: 12 m | Video compression formats: M-JPEG | Infra-red wavelength: 850 nm | Video streaming: Yes | Number of sensors: 1 | Day/night mode: Yes | Minimum illumination: 0 lx | DC output voltage: 12 | Protection features: Waterproof | Power consumption (Power over Ethernet (PoE)): 11 W | Mounting type: Ceiling/wall | Power consumption (max): 10 W | Storage temperature (T-T): -30 - 60 °C | LED type: IR/White | Video motion detection: Yes | Privacy masking: Yes | Ethernet LAN: Yes | Angle of rotation: 360° | Length: 286.7 mm | Lens viewing angle, vertical: 57° | Privacy protection: Yes | Night vision distance: 80 m | Live view: Yes | Region of Interest (ROI) encoding: Yes | Number of cameras: 1 | Wide Dynamic Range (WDR): Yes | Package depth: 156 mm | Highlight Compensation (HLC): Yes | Compatible memory cards: MicroSDXC | Bit rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR) | Video compression formats: H.264 | Package width: 386 mm | Behavior analysis: Line crossing detection | Ethernet interface type: Fast Ethernet | Number of languages: 33 | Form factor: Bullet | Progressive scan: Yes | Noise reduction technology: 3D noise reduction | Video compression formats: H.264+ | Supported graphics resolutions: 640 x 480 (VGA) | Noise reduction: Yes | Back Light Compensation (BLC): Yes | Width: 93.1 mm | Storage relative humidity (H-H): 0 - 95% | Identify distance: 6 m | Video compression formats: H.265 | Infrared (IR) cut-off filter: Yes | Video compression formats: H.265+ | HTTPS encryption: Yes | Browser supported: IE 10, IE 11, Chrome 57.0+, Firefox 52.0+ | Dynamic range: 120 dB | Housing material: Metal | Signal-to-Noise Ratio (SNR): 52 dB | Camera shutter speed: 1/3 - 1/100000 s | IP address filtering: Yes | Gain control type: Auto | Number of lenses: 1 | Package height: 155 mm | Client interoperability: iVMS-4200, Hik-Connect, Hik-Central | Sensor type: CMOS | Placement supported: Outdoor | Wi-Fi: No | Tilt angle range: 0 - 90° | Security algorithms: TLS | Night vision: Yes | Supported graphics resolutions: 1920 x 1080 (HD 1080) | Digest authentication: Yes | Password protection: Yes | Package weight: 1.64 kg | Operating relative humidity (H-H): 0 - 95% | International Protection (IP) code: IP67 | Product colour: White | Bit rate: 32 Kbps - 8 Mbps | Maximum resolution: 2688 x 1520 pixels | Card reader integrated: Yes | Optical sensor size: 25.4 / 2.9 mm (1 / 2.9") | Supported graphics resolutions: 640 x 360 | Number of Privacy masking areas: 8 | Built-in HDD: No | Lens viewing angle, horizontal: 104° | Compatible memory cards: MicroSDHC | Reset button: Yes | IK code: IK10 | Network access storage (NAS): Yes | Frame rate: 30 fps | Compliance certificates: RoHS | Compliance certificates: CE | Automatic Network Replenishment (ANR): Yes | Compliance certificates: REACH | Connectivity technology: Wired | Operating temperature (T-T): -30 - 60 °C | Networking standards: IEEE 802.1x | Mirror: Yes | Audit log: Yes | Total megapixels: 4 MP | Quality of Service (QoS) support: Yes | Active tampering alarm: Yes | Pan range: 0 - 360° | Type: IP security camera | Height: 88.7 mm | Number of simultaneous live view channels: 6 channels | Lens viewing angle, diagonal: 122° | Ethernet LAN (RJ-45) ports: 1 | Flash log: Yes | Supported graphics resolutions: 2688 x 1520 | Supported graphics resolutions: 1280 x 720 (HD 720) | Compliance certificates: WEEE | Bluetooth: No | Power source type: DC, PoE | Compliance certificates: Low Voltage Directive (LVD) | Maximum memory card size: 512 GB | Weight: 1.11 kg | Web-based management: Yes | Security algorithms: HTTPS | Human and vehicle targets classification: Yes | Pixel counter: Yes | Compliance certificates: Federal Communications Commission (FCC) | Built-in light: Yes | Networking standards: IEEE 802.3af | User access level: Administrator, Operator, User | Password reset via email: Yes

How to use

Install the camera on a suitable ceiling or wall surface using hardware compatible with the camera’s mounting design. Connect the camera to a network using a wired Ethernet connection and supply power according to your site’s power infrastructure (PoE if supported by your network equipment). Configure video settings, motion detection zones and recording parameters through the Hikvision management software or compatible NVR, then position and rotate the camera to cover the required area. Verify image focus and exposure in different lighting conditions and adjust settings as needed.

Recommendations

Place the camera where its 104° horizontal view and 360° rotation provide unobstructed coverage of the target area. For effective night-time monitoring, ensure the camera is mounted at an appropriate height and angle to make use of its detection and observation ranges. Use wired Ethernet for reliable continuous operation and configure motion detection thresholds to reduce false alarms from environmental motion.
