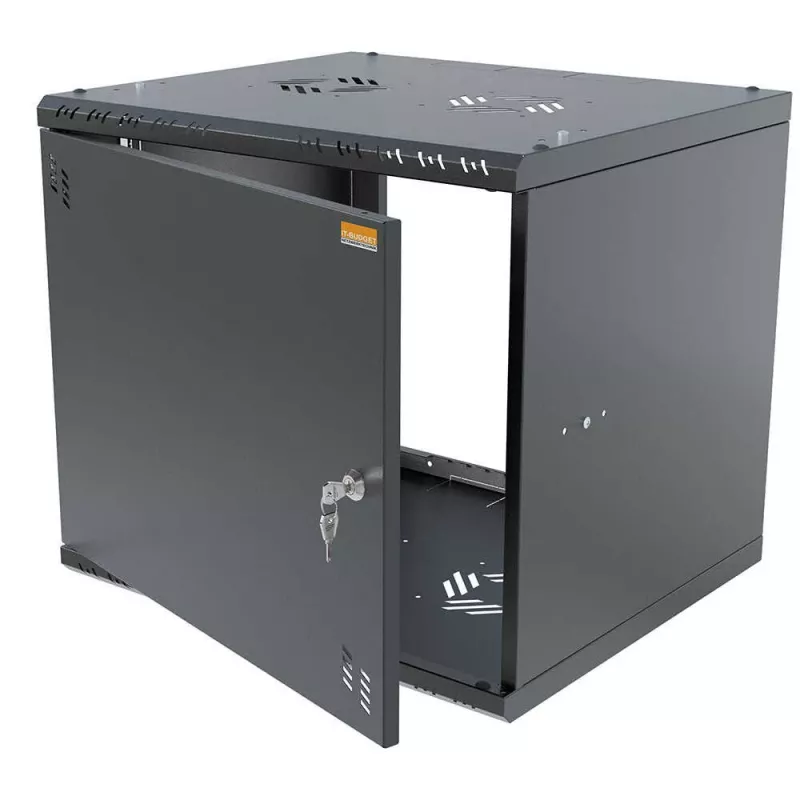

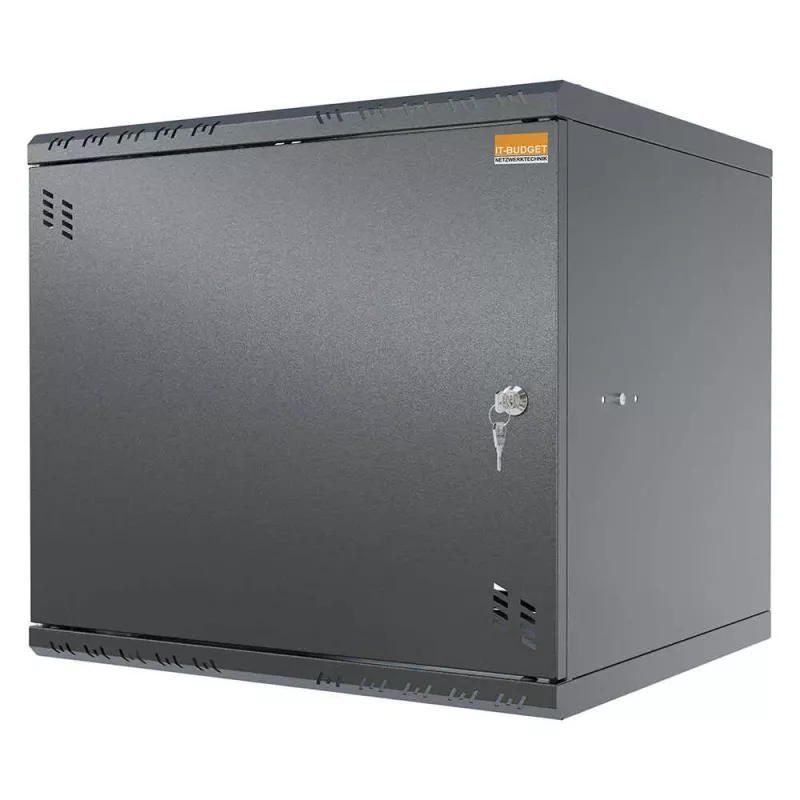

IT-BUDGET TAUNUS 9U 19 tuuman seinäkotelo, 450 mm syvä, teräsovi, lukittava, musta 90ITB19945MS

Managing network equipment in tight spaces often means choosing between accessibility and security. The IT-BUDGET TAUNUS 9U wall-mount cabinet solves this by providing a lockable 19-inch enclosure that mounts directly to the wall, keeping your patch panels, switches, and small servers organized and protected without consuming floor space.

Who is it for

This cabinet is ideal for small offices, retail locations, or branch offices that need a secure, space-saving rack for active components and cabling. It suits IT installers and facility managers who require a reliable, cost-effective solution for wall-mounted network infrastructure.

Main features

• 9U height with 19-inch mounting rails, compatible with standard rack equipment
• 450 mm depth accommodates a wide range of network devices
• Solid steel door with key lock prevents unauthorized access
• Wall-mount design frees up floor space
• Black powder-coated steel construction (RAL 9005) for durability
• Passive ventilation via perforated top and bottom panels
• Adjustable mounting rails for flexible equipment placement

Specifications

• Rack units: 9U
• Mounting type: Wall mount
• Rack standard: 19-inch
• External dimensions (W x D x H): 600 x 450 x 490 mm
• Door type: Solid steel door
• Door security: Key lock
• Side panels: Fixed
• Material: Steel sheet
• Colour: Black (RAL 9005)
• Maximum load capacity: 60 kg
• IP protection class: IP20
• Cable entry: Top and bottom
• Mounting rails: Adjustable 19-inch
• Ventilation: Passive (perforated top/bottom)

Tips

When installing, ensure the wall can support the combined weight of the cabinet and equipment. Use appropriate anchors for the wall material. For optimal airflow, leave clearance above and below the cabinet for cable entry and ventilation.
