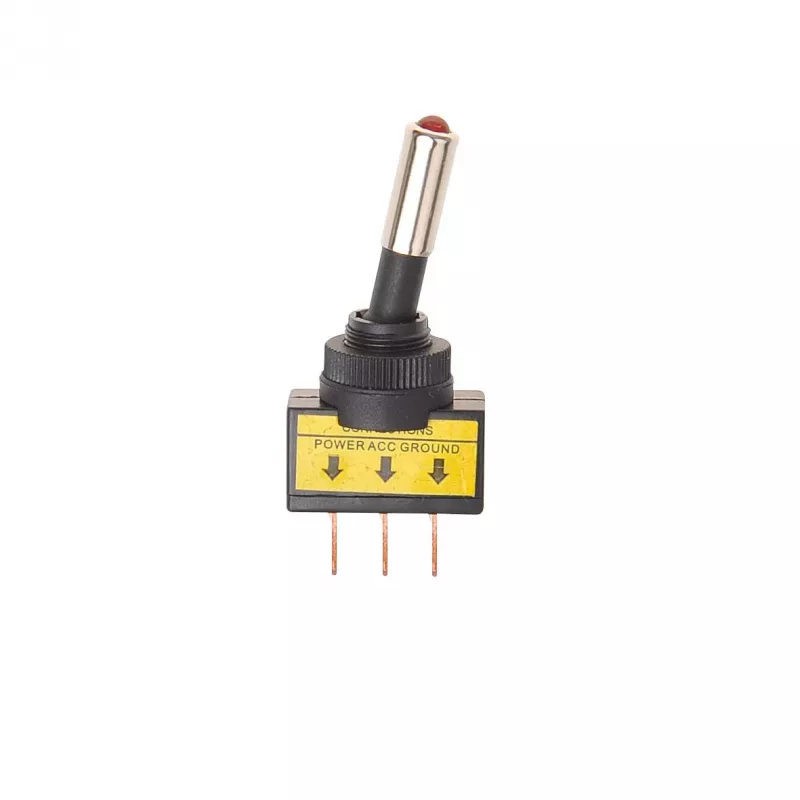

IWH keinupainike punainen 12 V 20 A (19023)

This red illuminated rocker switch from IWH provides a clear visual status indication and handles up to 20 A at 12 V DC, making it suitable for demanding automotive and marine circuits. Its snap-in panel mounting with standard 6.3 mm spade terminals simplifies installation in control panels.

Highlights

• Illuminated red actuator for easy status recognition
• High current capacity: 20 A at 12 V DC
• Single-pole single-throw (SPST) ON-OFF function
• Snap-in mounting for panels 0.8–2.0 mm thick
• Standard 6.3 mm blade terminals for quick wiring

In daily use

This switch is ideal for controlling lights, fans, pumps, or auxiliary equipment in vehicles, boats, or DIY projects. The red illumination allows you to see at a glance whether the circuit is live, enhancing safety and convenience in low-light conditions.

Full specifications

• Switch type: Rocker switch
• Switch function: ON-OFF
• Number of poles: 1 (SPST)
• Illumination: Yes, red
• Operating voltage: 12 V DC
• Current rating: 20 A
• Number of terminals: 3
• Terminal type: 6.3 mm spade (Faston)
• Mounting type: Snap-in panel mount
• Panel cut-out: 20 x 11 mm
• Actuator colour: Red
• Housing colour: Black
• Contact material: Silver-plated copper alloy
• Body material: PA66 nylon
• Actuator material: PC polycarbonate

Final note

A robust and reliable switch for 12 V applications where clear indication and high current handling are required.
