IWH USB-asennuslatausliitäntä 12/24V, 2,1A, 1x USB-A, paneeliasennus 019004

Delivers up to 2.1 A at 5 V DC from a 12 V or 24 V vehicle electrical system, making it ideal for charging tablets, smartphones, and other USB-powered devices in cars, trucks, boats, and RVs.

Overview

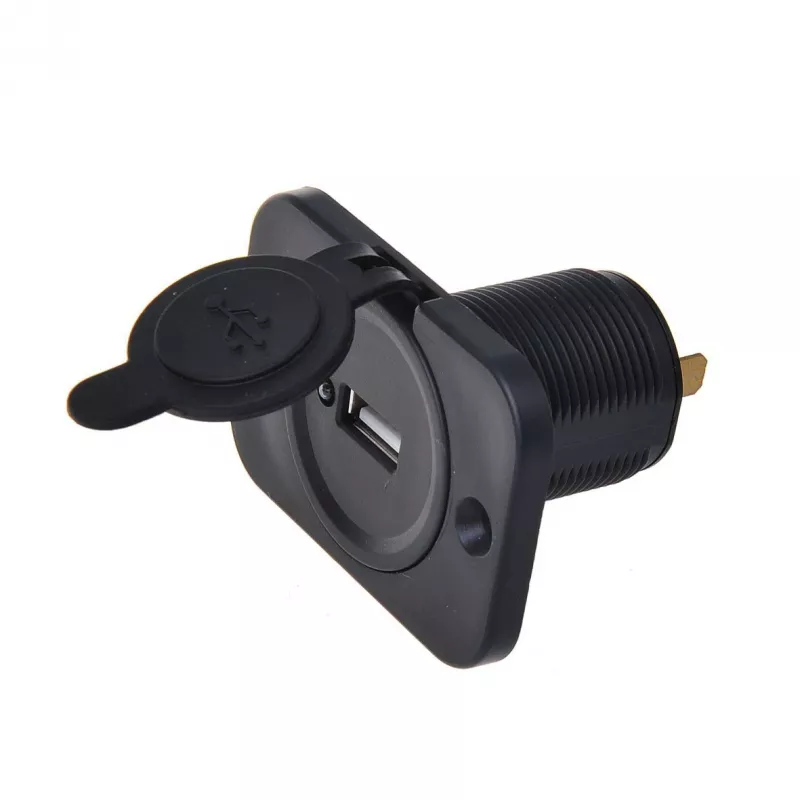

The IWH 019004 is a flush-mount USB charging socket designed for panel installation. It converts 12 V or 24 V DC input to a regulated 5 V DC output, providing a maximum current of 2.1 A (10.5 W). The single USB Type-A port is compatible with standard USB charging cables.

What stands out

• Wide input voltage range: 12 V and 24 V DC nominal
• High output current: 2.1 A for fast charging
• Built-in overload, short-circuit, and reverse polarity protection
• Flush-mount design for a clean, integrated look
• Suitable for automotive, marine, and RV applications

Technical details

• Input voltage: 12 V DC / 24 V DC
• Output voltage: 5 V DC
• Max output current: 2.1 A
• Max output power: 10.5 W
• USB ports: 1 x USB Type-A
• Mounting type: Panel mount
• Installation type: Flush-mount
• Protection: Overload, short circuit, reverse polarity

Our verdict

A robust and reliable USB charging solution for mobile and off-grid power systems. Its wide input range and built-in protections make it a safe choice for demanding environments.
