Jäähdytysjärjestelmä Thermal Grizzly TG-LT-AR7000 akryyli läpinäkyvä kanta AM5

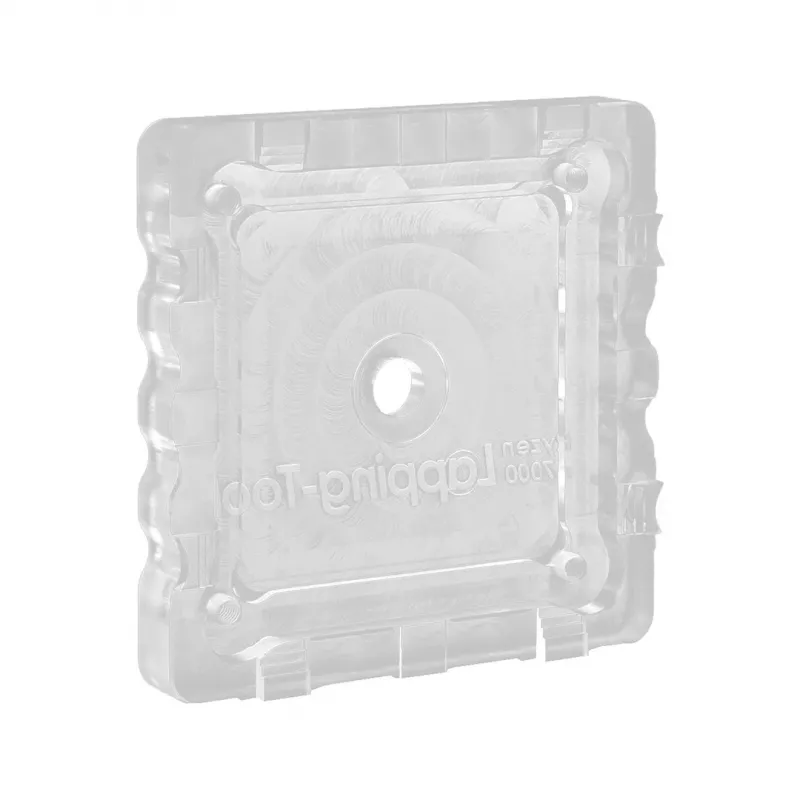

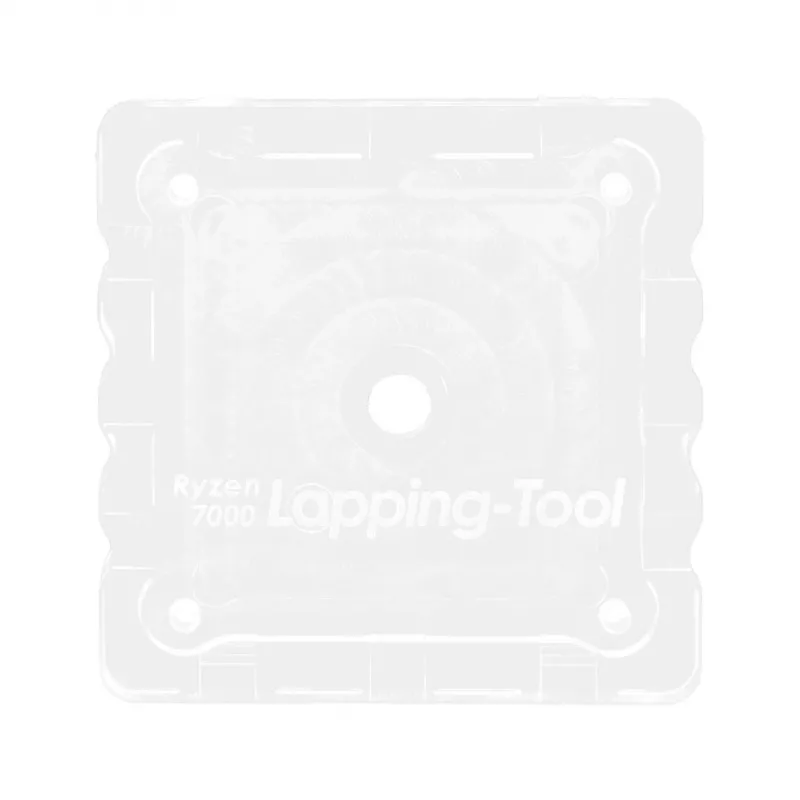

The Thermal Grizzly TG-LT-AR7000 Acrylic Transparent Socket AM5 lapping tool is designed for controlled grinding of AM5-series CPU heat spreaders. It allows stepwise removal of up to 1.6 mm of material in 0.4 mm increments. When used with a standard AMD mounting frame (SAM) it supports up to 1.0 mm of sanding; an additional 0.6 mm is possible only when the processor is mounted with a compatible AM5 contact and sealing frame. The tool’s diamond-milled steps are transparent, making it easy to see which step has been reached during the lapping process.

Advantages

The TG-LT-AR7000 provides precise, incremental control over heat spreader height and uses diamond-milled, transparent steps for clear visual feedback while grinding. It enables removal beyond the common 0.2 mm lapping range, allowing reduction of the thermal conduction path through the AM5 heat spreader. This can improve contact between the CPU heat spreader and cooler base plate, which may improve cooling efficiency when paired with a ground cooler base plate.

Suitable for

• AM5 socket processors (Ryzen 7000 series)
• Users who need precise heat spreader height adjustment
• Enthusiasts retaining AM4 coolers for use on AM5
• System builders optimizing CPU cooler contact

Key specifications

• Model: TG-LT-AR7000
• Compatibility: Socket AM5 (Ryzen 7000 series)
• Color/material: Transparent acrylic with diamond-milled steps
• Adjustable removal: Up to 1.6 mm total in 0.4 mm increments; up to 1.0 mm with standard AMD SAM frame
• Brand: Thermal Grizzly
• MPN: TG-LT-aR7000
• EAN: 4260711990724

How to use

Mount the processor according to the lapping tool instructions and secure it with the appropriate mounting frame. Use the tool to sand the heat spreader incrementally, checking the visible diamond-milled steps to determine progress. If using the standard AMD SAM mounting frame, limit sanding to the recommended 1.0 mm; to remove up to 1.6 mm, install a compatible AM5 contact and sealing frame before continuing. After finishing the lapping process, clean the CPU heat spreader surface thoroughly and reapply thermal interface material before installing the cooler.

Recommendations

Perform lapping only if you understand the mechanical and warranty implications. Use fine-grit abrasive suitable for metal, work in small increments, monitor step visibility, and verify cooler base flatness after lapping. For best thermal results, pair with a well-polished cooler base and a high-performance thermal paste.
