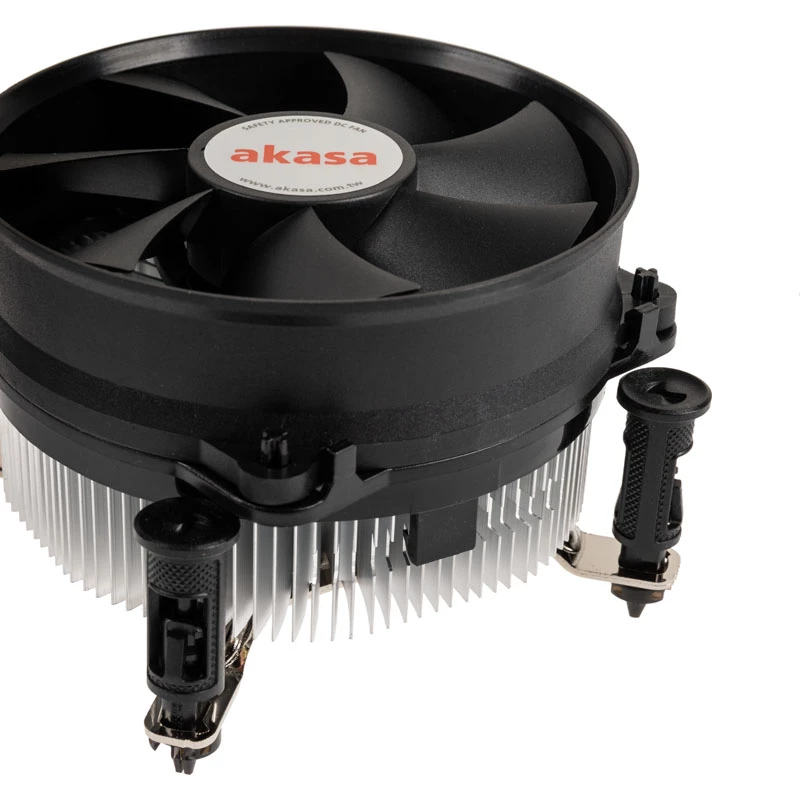

Jäähdytyssiili/jäähdytin Akasa AK-CC6603EP01 9,5 cm alumiini musta

The Akasa AK-CC6603EP01 is a compact aluminium heatsink and radiator with a 95 mm fan, designed to provide efficient cooling for desktop CPUs with a thermal design power up to 77 W. Its black aluminium finish and small footprint (95 × 95 × 59.2 mm) make it suitable for a variety of ATX, Micro-ATX, Mini-ITX and Thin Mini-ITX systems where quiet operation and reliable heat dissipation are required.

Advantages

Low-noise operation combined with effective airflow management minimizes acoustic output while maintaining cooling performance. The heatsink uses engineered aluminium fins and a 95 mm PWM-controlled fan to deliver required airflow on demand, and a pre-applied high-grade thermal interface reduces installation steps and improves thermal transfer. The design also includes a push-pin mounting system compatible with Intel LGA1700 sockets for easier installation.

Suitable for

• Compact desktop builds (ATX, Micro-ATX, Mini-ITX, Thin Mini-ITX)
• Workstation systems with CPUs up to 77 W TDP
• Quiet office or home PC environments

Key specifications

• Type: Heatsink / Radiator
• Fan diameter: 95 mm
• Dimensions (W × D × H): 95 × 95 × 59.2 mm
• Weight: 0.2998 kg
• TDP: 77 W
• Supported socket: Intel LGA1700
• Colour / material: Black aluminium
• Max air pressure: 4.87 mmH2O

How to use

Remove the cooler from its packaging, align the push-pin mounting points with the retention holes on the motherboard for the Intel LGA1700 socket, and press the pins until they click to secure the cooler. Ensure the pre-applied thermal interface material makes full contact with the CPU heatspreader and attach the 95 mm fan to the fan header using PWM control for automatic speed adjustment. Verify clearance in the case and confirm that case airflow supports the cooler for optimal performance.

Recommendations

For best results, pair the Akasa AK-CC6603EP01 with a case that provides good intake and exhaust airflow. Regularly check and clean dust from the aluminium fins and fan blades. Use for CPUs up to 77 W TDP; higher-power processors may require more capable cooling solutions.
