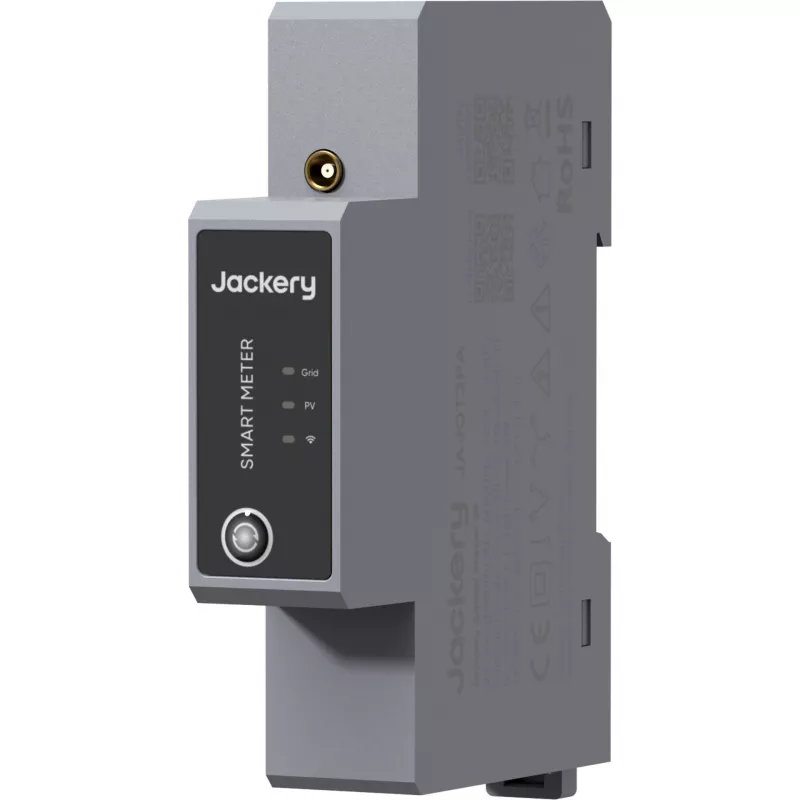

Jackery Smart Meter 3-vaiheinen SolarVault 3 -sarjalle

Managing a three-phase home energy system without precise consumption data often leads to inefficient energy use and higher bills. The Jackery Smart Meter 3-Phase for SolarVault 3 Series solves this by providing real-time monitoring of your home's energy flows, enabling smarter energy decisions and maximizing self-consumption.

Who is it for

This smart meter is ideal for homeowners with a Jackery SolarVault 3 Series energy storage system who want to track energy production, consumption, and grid interaction across all three phases. It is especially useful for those with solar PV installations aiming to optimize energy usage and reduce reliance on the grid.

Main features

• 3-phase energy monitoring for comprehensive home energy management
• Measures voltage, current, active/reactive/apparent power, power factor, frequency, and energy (kWh)
• Connects via RS485 to SolarVault and Wi-Fi for app integration
• DIN rail mount for easy installation in electrical panels
• Accuracy class 1.0 for active energy ensures reliable data
• Works with Jackery App (iOS/Android) for remote monitoring and data logging

Specifications

• Rated voltage: 3 x 230V / 400V AC
• Max current: 100A via external current transformers
• Communication: RS485, Wi-Fi
• Operating temperature: -25°C to +55°C
• Protection rating: IP51
• Housing material: Flame-retardant PC/ABS
• Power consumption: < 1W
• Certifications: CE, RoHS
• Display: None (relies on SolarVault system and Jackery App)

Tips

For optimal performance, install the smart meter close to your main distribution board and ensure the current transformers are correctly oriented around the phase conductors. Use the Jackery App to set energy consumption alerts and track historical data for better energy management.
