Jalusta palvelinkaapeille Digitus DN-19 PLINTH-6/10-B

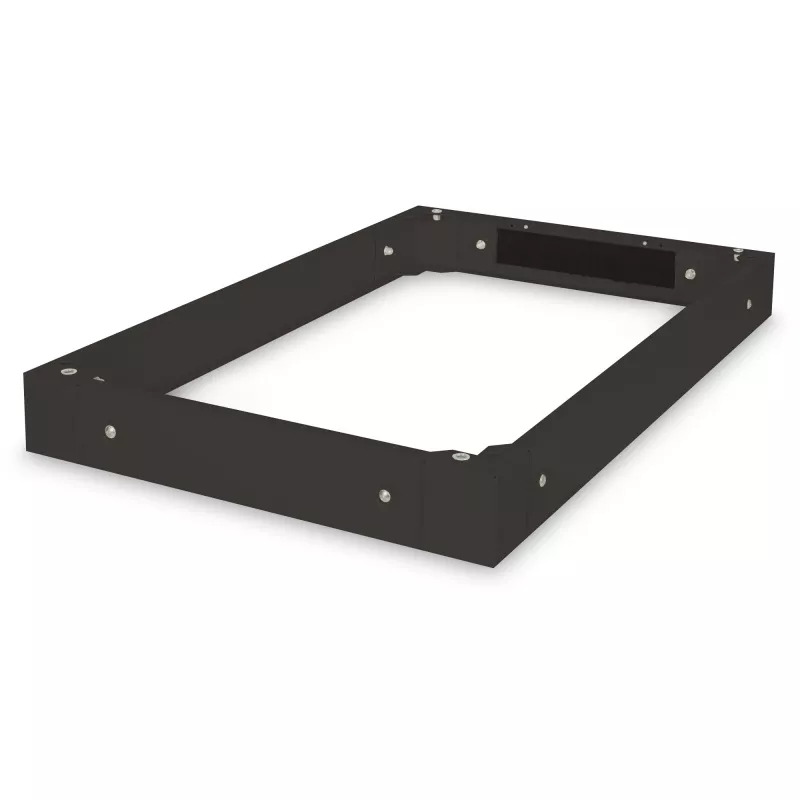

The DIGITUS 483 mm (19") base plinth DN-19 PLINTH-6/10-B is designed to extend the height and usable floor clearance of compatible DIGITUS 19" server cabinets from the Unique and Dynamic Basic series. Manufactured to German quality standards and supplied unassembled, this black base with a footprint of 600 x 1000 mm increases ground clearance by 100 mm and creates internal space for storing excess cable lengths and organising cable routes.

Advantages

The plinth increases cabinet ground clearance by 100 mm and can be stacked up to two units high to reach 200 mm. It provides simple cable management via a brush-strip cable feed-through and is delivered unassembled to simplify logistics and shipping. The design is compatible with DIGITUS Unique and Dynamic Basic 483 mm (19") cabinets.

Suitable for

• Raising DIGITUS 483 mm (19") server cabinets to increase ground clearance
• Storing and routing excess cable lengths within the cabinet plinth
• Use in data centers, server rooms and network closets using DIGITUS Unique or Dynamic Basic series cabinets

Key specifications

• Model: DN-19 PLINTH-6/10-B
• Compatibility: DIGITUS 483 mm (19") Unique and Dynamic Basic series cabinets
• Dimensions (footprint): 600 x 1000 mm
• Ground clearance increase: 100 mm (stackable to 200 mm with two plinths)
• Colour: Black
• Delivered: Unassembled
• Brand: DIGITUS
• MPN: DN-19 PLINTH-6/10-B
• EAN: 4016032334606

How to use

Place the plinth under a compatible DIGITUS 483 mm (19") cabinet to raise the cabinet and create internal space. Route excess cables through the brush-strip cable feed-through to keep cables organised and protected. If additional height is required, mount a second plinth on top of the first following the manufacturers assembly instructions. The product is supplied unassembled; assemble according to the included instructions and secure the cabinet to the plinth as recommended.

Recommendations

Install on compatible DIGITUS Unique or Dynamic Basic series cabinets only, follow the supplied assembly instructions, and do not exceed the manufacturers load or stacking recommendations when mounting equipment on the plinth.
