Jatkoliitin DeLOCK 66717 D-Sub HD 26-pin musta hopea

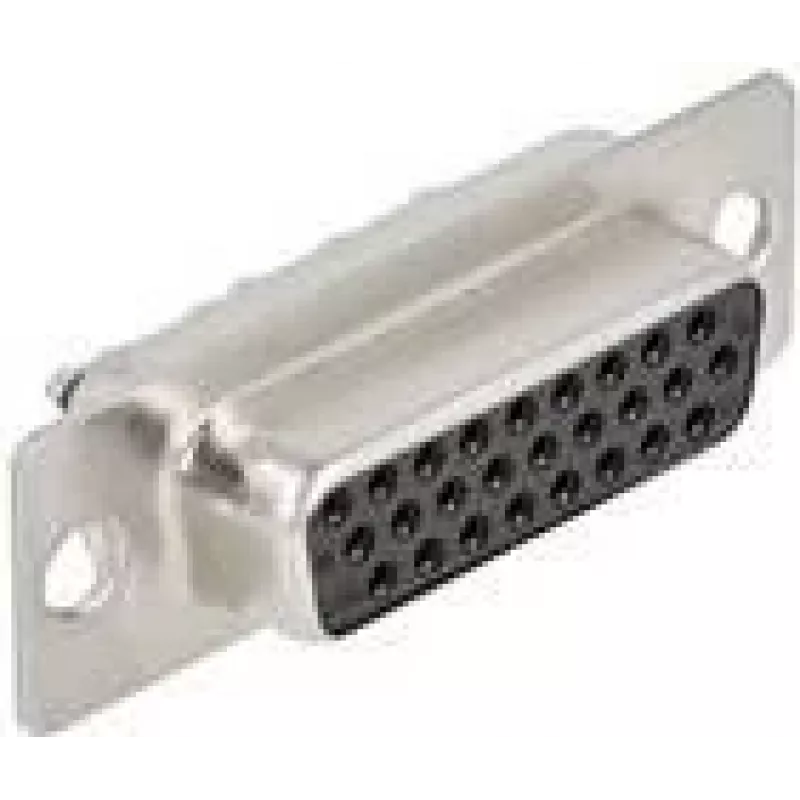

The DeLOCK 66717 wire connector is a D-Sub HD (high density) 26-pin female connector designed for reliable signal connections in electronic equipment. Finished in black and silver, the connector is compact with a width of 12.5 mm, a depth of 39.1 mm and a height of 10.7 mm. The product is supplied in packs of four, each pack contained in a polybag. Manufactured by DELOCK in China, this connector is intended for use where a small-format D-Sub HD interface is required.

Advantages

The DeLOCK 66717 combines a high-density pin count with a compact housing, offering space-saving installation and straightforward mating with compatible D-Sub HD sockets. The black and silver finish provides a neutral appearance suitable for visible or concealed mounting. Supplied in a set of four, the pack supports multiple connection points or spare parts inventory for maintenance tasks.

Suitable for

• Electronic equipment interconnections requiring a 26-pin D-Sub HD female interface
• Embedded systems, control panels and test equipment with limited panel space
• Repair or replacement of existing D-Sub HD connections in industrial or consumer devices

Key specifications

• Connector type: D-Sub HD female (26 pins)
• Colour: Black and silver
• Dimensions: 12.5 mm (width) × 39.1 mm (depth) × 10.7 mm (height)
• Quantity: 4 connectors per pack
• Packaging: Polybag
• Origin: Made in China

How to use

Align the DeLOCK 66717 female D-Sub HD connector with the matching male D-Sub HD plug, ensuring correct orientation of the shell and pin layout. Insert the connector straight into the mating socket until the shell seats fully. Secure any fastening hardware present on the mating interface according to the equipment design. For wiring, follow the device’s pinout diagram and solder or crimp appropriate wires to the mating connector or cable assembly prior to installation.

Recommendations

Handle the connector by its shell to avoid force on the contacts, verify pinout compatibility before connection, and store unused connectors in their original polybag to protect them from dust and mechanical damage.
