Jatkoliitin DeLOCK 66725 D-Sub HD 44-napainen musta hopea

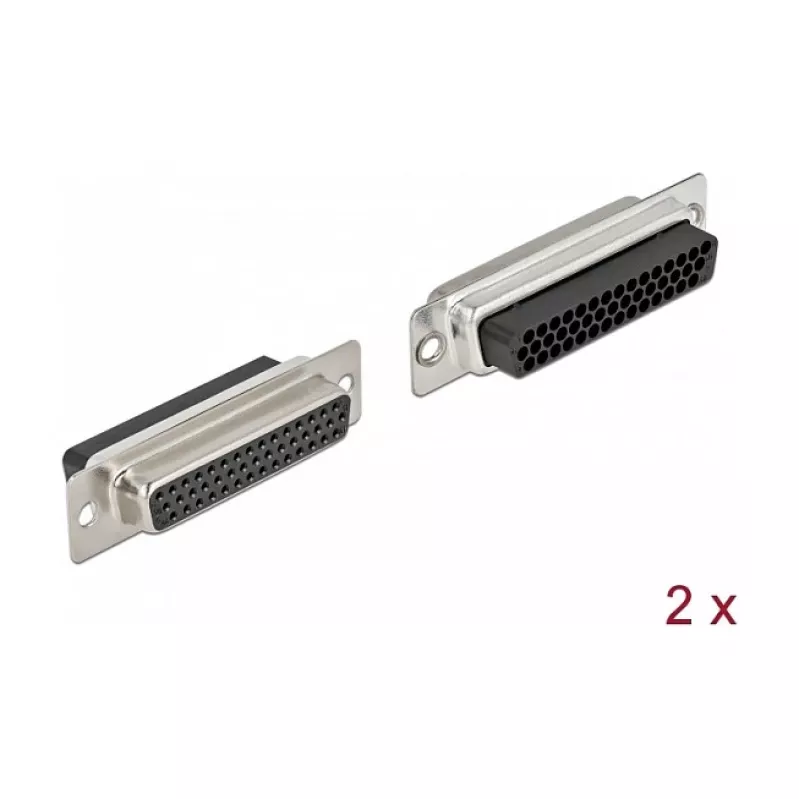

The DeLOCK 66725 D-Sub HD 44 pin wire connector is a compact, panel-mount compatible interface component designed for reliable signal connections in electronic equipment. This female D-Sub HD connector combines a black housing with silver contact elements and is supplied as a pack of two. Its small form factor—15.7 mm width, 53 mm depth and 12.5 mm height—makes it suitable where space is limited while maintaining the contact density required for 44-pin connections.

Advantages

This connector offers a standardized 44-pin D-Sub HD layout with a durable metal contact finish for consistent conductivity and corrosion resistance. The compact dimensions and two-piece pack simplify installation and replacement workflows. The combination of a darker housing and silver contacts provides visual contrast for easier alignment and inspection during assembly. Manufactured to industry tolerances, the connector is intended for repeated mating cycles and stable mechanical retention.

Suitable for

• Interface connections on industrial control panels and instrumentation
• Signal and data routing in telecommunications and networking devices
• Compact desktop or rack-mounted computing equipment requiring high-density D-Sub connections
• Repair and maintenance tasks where identical replacement connectors are needed

Key specifications

• Connector type: Female D-Sub HD, 44 pins
• Colour: Black housing with silver contacts
• Dimensions: 15.7 mm (width) × 53 mm (depth) × 12.5 mm (height)
• Pack quantity: 2 pieces
• Mounting style: Wire connector / panel-compatible interface

How to use

Prepare the cable and mating connector according to the electrical and mechanical requirements of the application, ensuring correct wire stripping and contact termination. Align the female D-Sub HD connector with the corresponding male interface and secure it using the appropriate mounting hardware or chassis cut-out. Verify pin alignment before applying power and perform a continuity test to confirm correct wiring. Use both pieces from the pack as spares or in parallel installations.

Recommendations

For best results, store connectors in a dry, static-free environment and avoid excessive mechanical stress during installation. Inspect contacts for contamination or damage before use and follow the device manufacturer’s recommended mating cycles and torque values for mounting screws.
