Johdollinen reititin MikroTik RB5009UPr+S+OUT

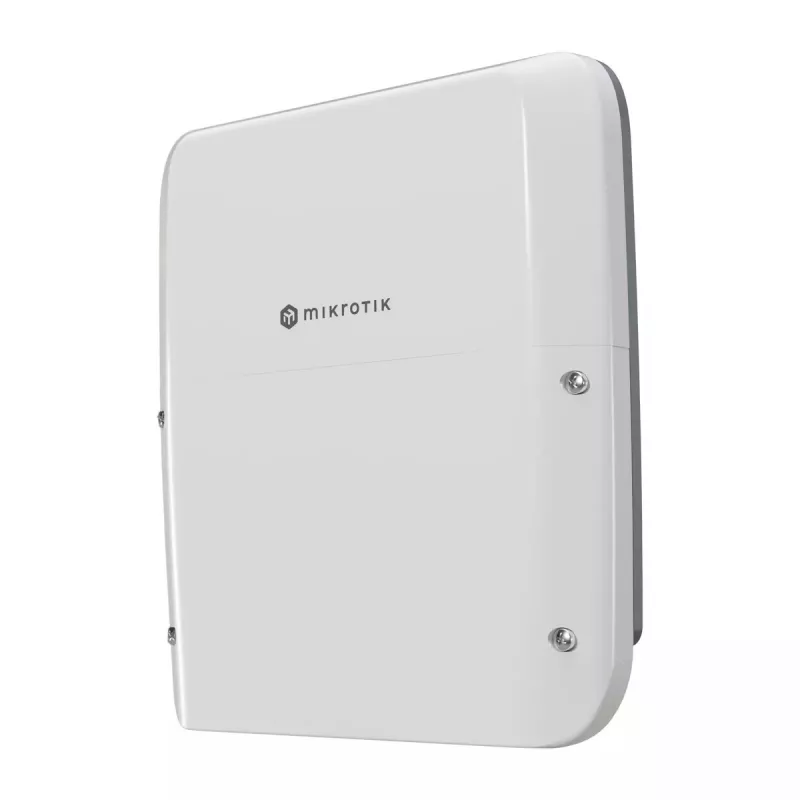

The MikroTik RB5009UPr+S+OUT is an outdoor-ready wired router in an IP66-rated waterproof enclosure, designed for reliable tower and outdoor network deployments. It combines a Marvell 88F7040 CPU at 1400 MHz with multiple wired interfaces: 7 Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, a 10G SFP+ cage and a full-size USB3 port. The unit runs RouterOS v7 and targets demanding networking tasks while maintaining a compact, cost-effective form factor.

Advantages

The device provides robust environmental protection (IP66) for outdoor use and extensive power redundancy with nine possible power sources. It supports wide input voltages (24–57 V) on all power options, PoE-in and PoE-out on eight Ethernet ports, and a front 2-pin power connector. Each PoE-out port can supply up to 25 W with a combined limit of 130 W. The router offers high processing performance suitable for advanced network functions while retaining compatibility with standard PoE (802.3af/at).

Suitable for

• Outdoor tower and mast-mounted network installations
• ISPs and network operators requiring high reliability and redundancy
• Edge routing tasks such as PPPoE termination and DHCP for customers
• Enterprise and carrier scenarios using MPLS, VPLS or VXLAN
• Deployments that need both data interfaces (1G/2.5G/SFP+) and PoE power distribution

Key specifications

• Model: MikroTik RB5009UPr+S+OUT (MPN: RB5009UPr+S+OUT, EAN: 4752224008459)
• CPU: Marvell 88F7040, 1400 MHz

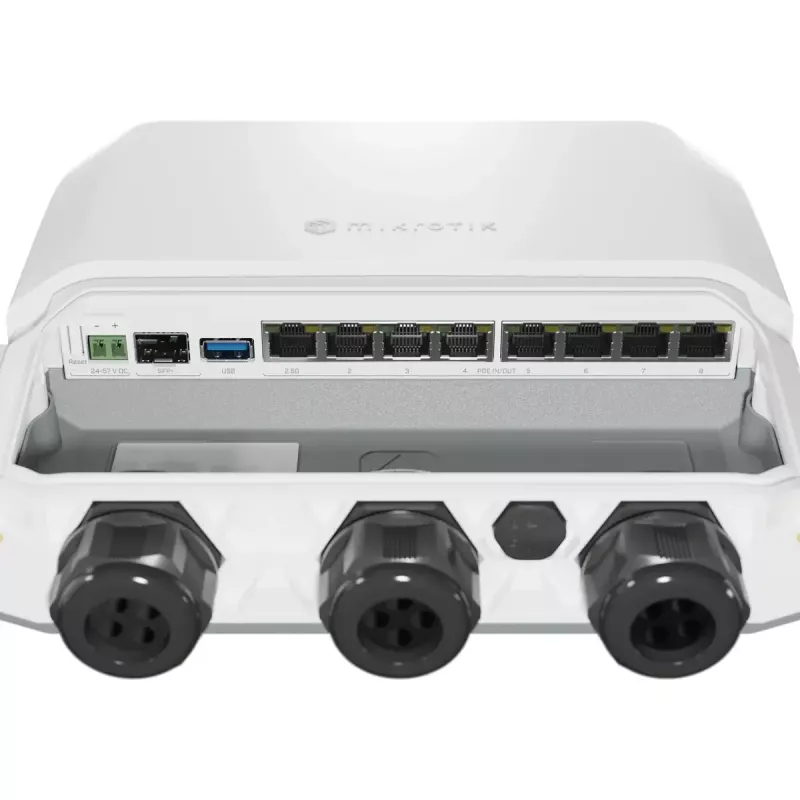

• Ethernet: 7× Gigabit Ethernet, 1× 2.5 Gigabit Ethernet
• SFP+: 10G SFP+ cage
• USB: 1× full-size USB3 port
• Power: PoE-in and PoE-out on eight ports, front 2-pin connector, up to 9 possible power sources
• PoE voltage range: 24–57 V (do not mix voltages)
• PoE-out per port: up to 25 W; combined PoE-out limit: 130 W
• Power consumption: device requires up to 21 W for its own operation; typical system power characteristics should account for PoE budgets

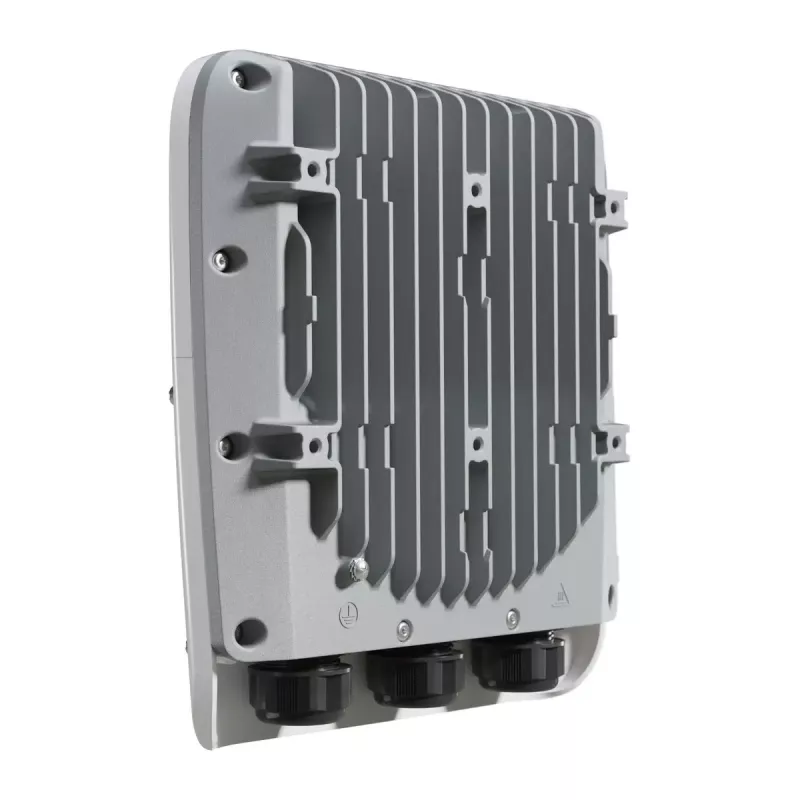

• Ingress protection: IP66 (waterproof enclosure)
• Standards: IEEE 802.3af / IEEE 802.3at compatibility for PoE
• Colour: White

How to use

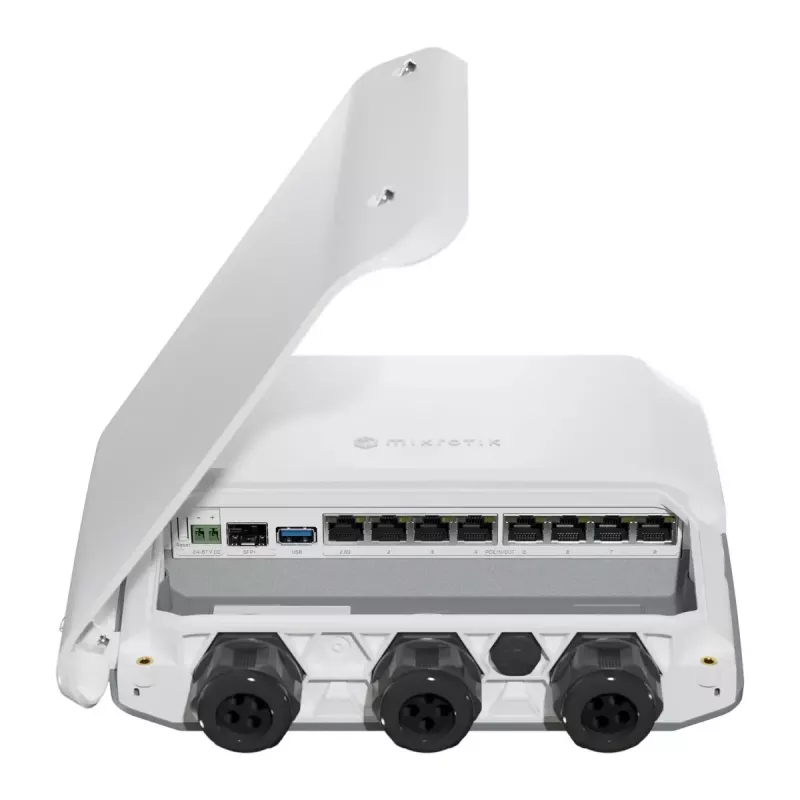

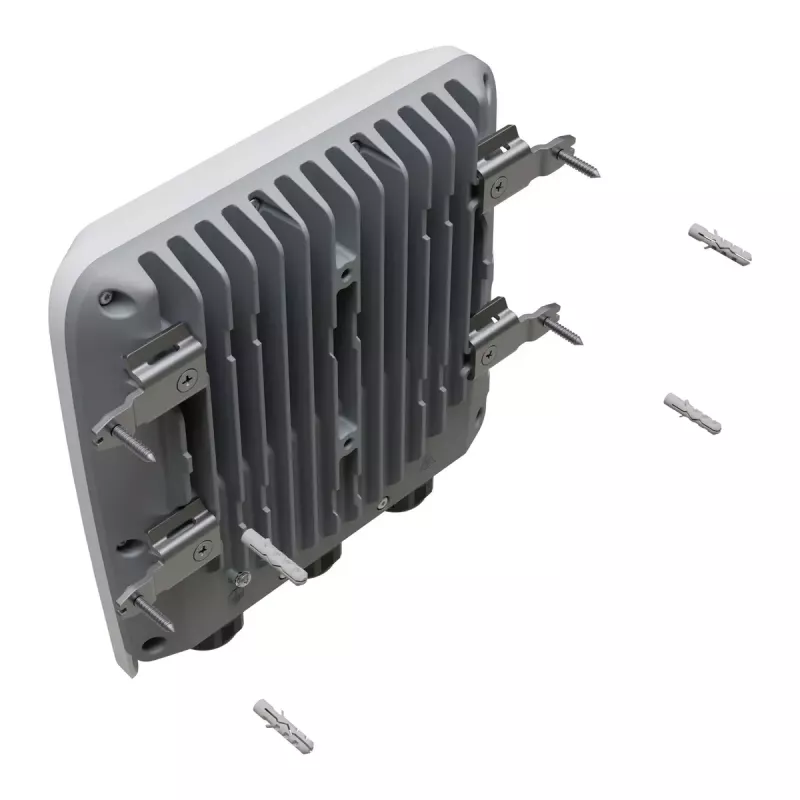

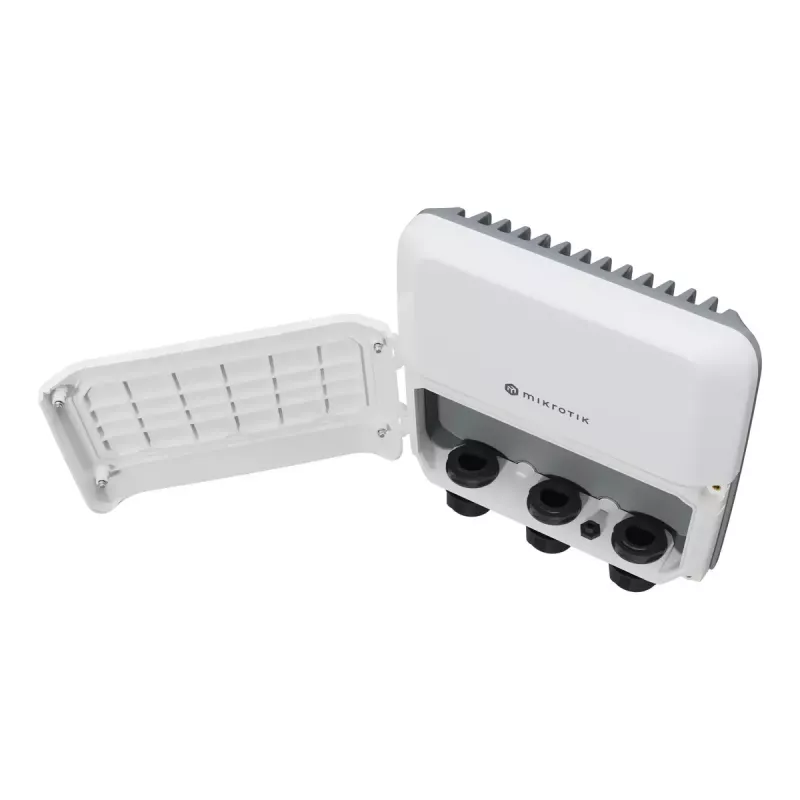

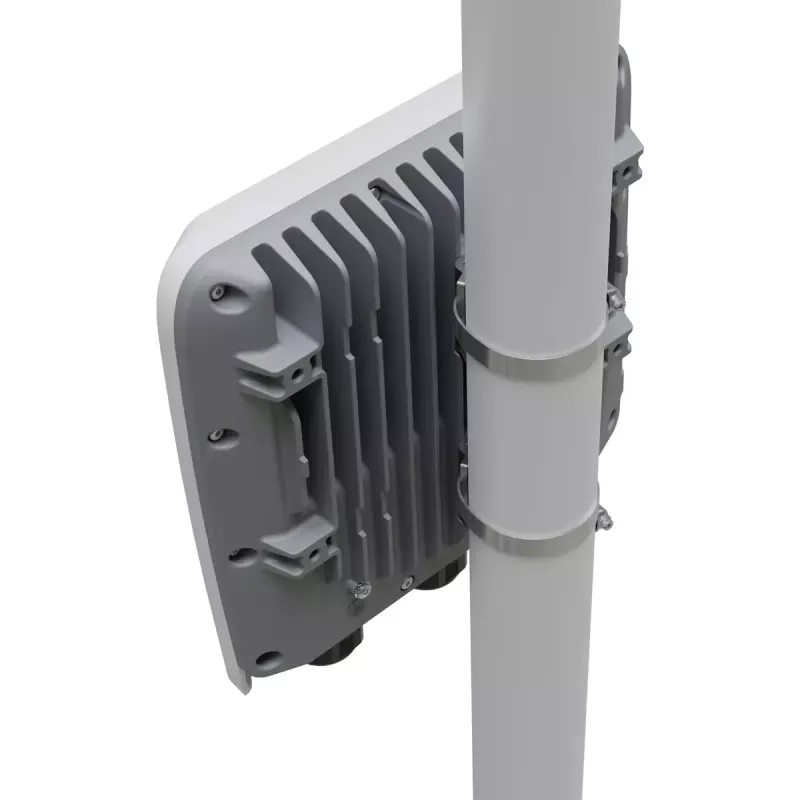

Mount the RB5009UPr+S+OUT in a suitable outdoor location ensuring stable mechanical support and correct sealing of cable entries to preserve IP66 protection. Connect your uplink and access devices to the Ethernet ports and insert SFP+ modules into the 10G cage as required. Provide power using any supported source: the front 2-pin connector, PoE-in on the Ethernet ports, or a combination of inputs. Configure RouterOS v7 via Winbox, WebFig or CLI to set up routing, PPPoE termination, DHCP, firewall rules and any MPLS/VPLS or VXLAN services needed for your network. When powering other PoE devices from the router’s PoE-out ports, ensure total PoE budget and per-port power limits are respected and, if required, supply additional power via the 2-pin connector to enable PoE-out functionality.

Recommendations

Do not mix different input voltages simultaneously; set maximum available power limits in the configuration if necessary to prevent exceeding the combined 130 W PoE-out limit. For reliable outdoor operation, follow local grounding and lightning protection practices and verify that connected SFP+ transceivers and PoE-powered devices are compatible with the router’s single-voltage PoE-out behavior.
