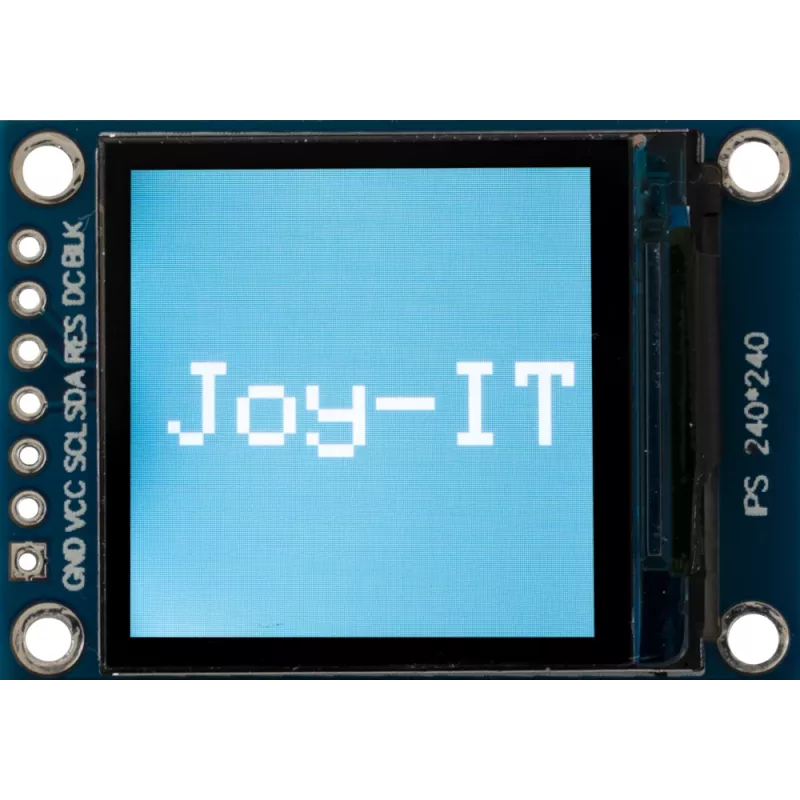

Joy-it 1,3" IPS TFT LCD -näyttömoduuli 240x240 SBC-asennustelineellä (SBC-LCD01)

Compact yet remarkably clear, this 1.3-inch IPS TFT display from Joy-it brings vivid, all-angle visibility to single-board computer projects. The SBC-LCD01 integrates a 240x240 pixel panel with a convenient mounting bracket, making it a direct-fit visual upgrade for Raspberry Pi, Jetson Nano, and other 40-pin GPIO systems. Unlike basic OLED or TN alternatives, the IPS technology ensures colours stay true and text remains legible from any viewing angle, while the ST7789 controller keeps SPI communication simple and efficient.

Highlights

• 1.3-inch IPS TFT LCD with 240x240 resolution and 65K colours
• Full viewing angle for consistent image quality from any position
• 4-wire SPI interface with ST7789 controller for broad compatibility
• Integrated SBC mounting bracket for secure attachment to Raspberry Pi and similar boards
• Operates at 3.3V or 5V logic, with 3.3V logic level
• 20-pin GPIO-compatible header for plug-and-play connection
• Supported by Python and C/C++ libraries for rapid development

In daily use

Mounting the display is straightforward: align the bracket with your SBC's mounting holes, connect the 20-pin header to the GPIO, and you're ready to code. The 23.4 x 23.4 mm active area is ideal for status readouts, sensor data, mini dashboards, or compact UI elements. Because the panel uses IPS technology, you won't lose visibility when viewing from the side—useful for wall-mounted or angled installations. The LED backlight ensures readability in varied lighting, and the 3.3V/5V power flexibility means it works with both 3.3V and 5V systems without level shifters.

Full specifications

• Display type: TFT IPS LCD
• Diagonal size: 1.3 inches (3.3 cm)
• Resolution: 240 x 240 pixels
• Colour depth: 65K colours (RGB565)

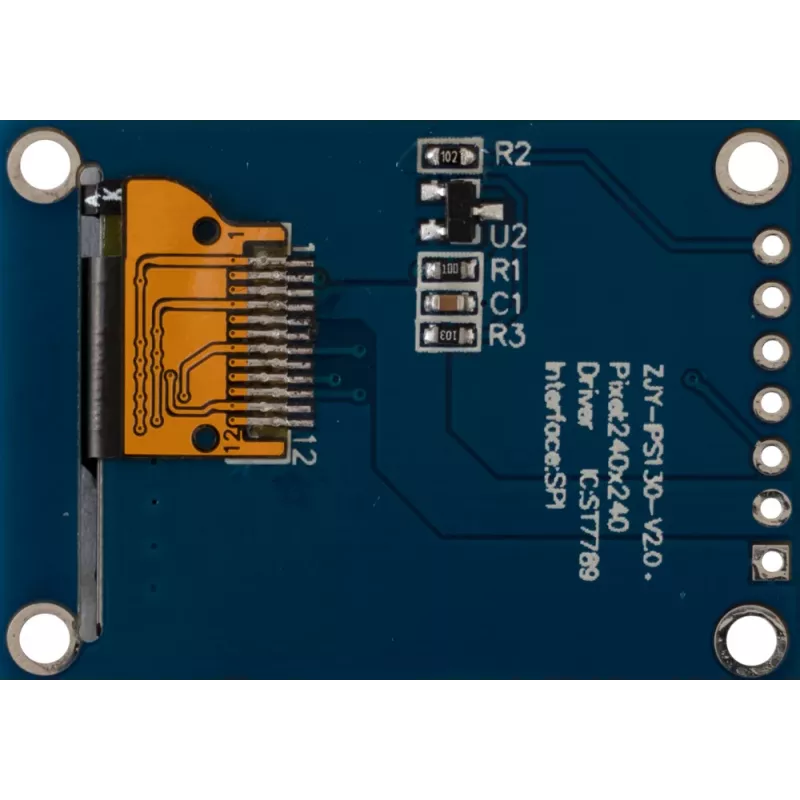

• Controller chip: ST7789
• Interface: 4-wire SPI
• Viewing angle: Full viewing angle (IPS)
• Operating voltage: 3.3V / 5V
• Logic voltage: 3.3V
• Pin header: 20-pin (GPIO compatible)
• Compatibility: Raspberry Pi (all models with 40-pin GPIO), Jetson Nano, ESP32, Arduino
• Special features: Integrated SBC mounting holes/bracket
• Backlight: LED
• Active display area: 23.4 x 23.4 mm
• Driver support: Python, C/C++ libraries

Final note

For makers who need a reliable, easy-to-integrate colour display with a secure mounting solution, the Joy-it SBC-LCD01 delivers practical performance without unnecessary complexity.
