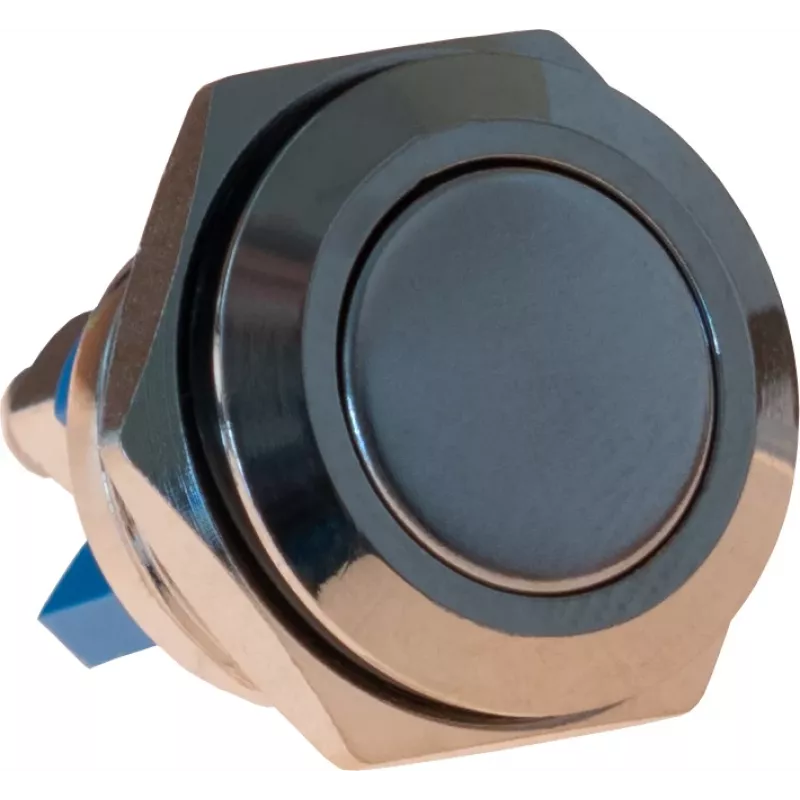

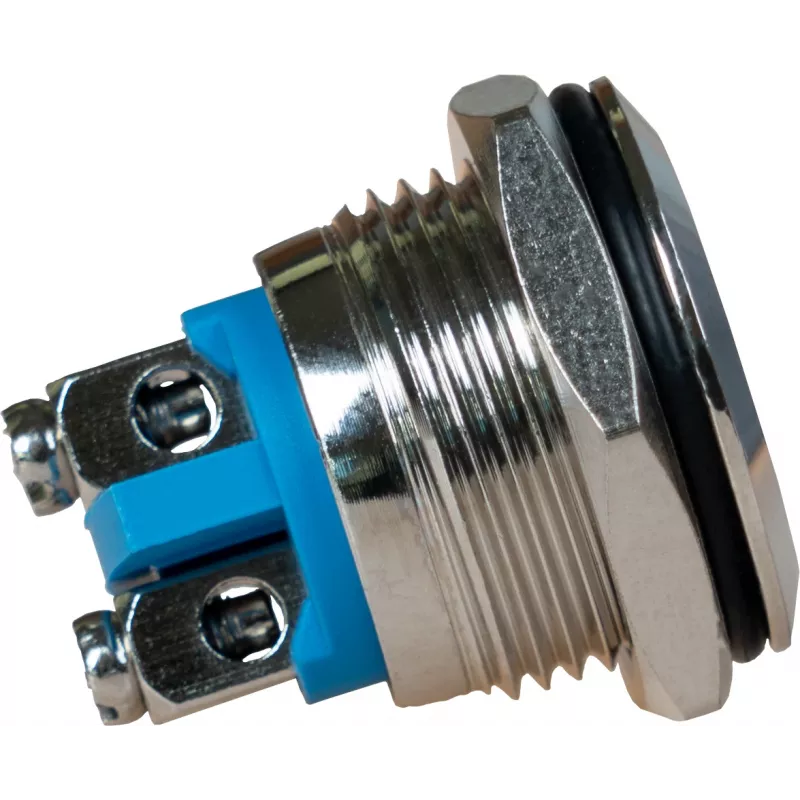

JOY-IT Button16C-01 painonappi painike 250V 3A IP65 16mm

The JOY-IT Button16C-01 stands out as a momentary push button switch built for reliable control in demanding environments. Its IP65 rating ensures protection against dust and water jets, making it suitable for industrial panels and outdoor applications where standard switches fail. The round actuator and solder lug terminals provide straightforward integration into your existing setup.

Highlights

• Momentary operation with 1 normally open (NO) contact
• Rated for 250 V AC and 3 A current
• 16 mm mounting hole diameter, 19.2 mm overall depth
• IP65 protection against dust and water
• Solder lug terminals for secure wiring

In daily use

This switch returns to its original position after being pressed, ideal for applications requiring a temporary signal such as reset buttons, doorbells, or control panels. The single-pole design keeps wiring simple, while the round actuator offers a comfortable pressing surface.

Full specifications

• Switch type: Push button switch
• Operation type: Momentary
• Contact configuration: 1x Normally Open (NO)
• Number of poles: Single pole
• Voltage rating (AC): 250 V
• Current rating: 3 A
• Mounting hole diameter: 16 mm
• Overall depth: 19.2 mm
• Protection class: IP65
• Actuator shape: Round
• Terminal type: Solder lugs
• Series: Button16C

Final note

Engineered for durability and precision, the Button16C-01 delivers consistent momentary action where it matters most.
