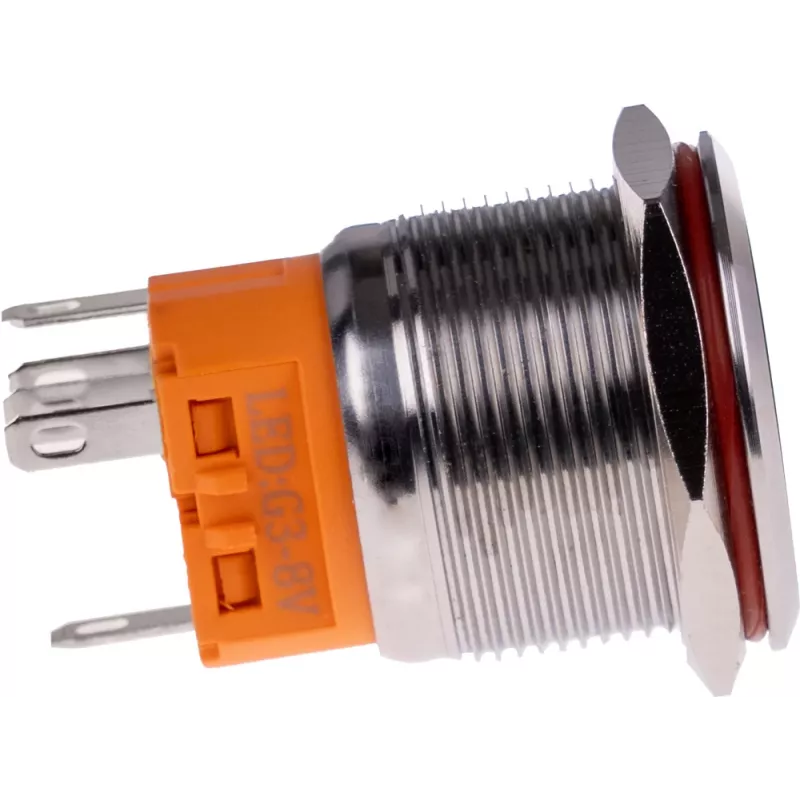

JOY-IT BUTTON22A-M-RD painike (sulkeva), 22 mm, punainen, 250 V AC, 3 A, 1 NO, IP67, IK10

Industrial control panels and machinery often require a robust, momentary push button that can withstand harsh environments. The JOY-IT BUTTON22A-M-RD is a red, flush-mount push button switch with a 22 mm mounting diameter, designed for reliable switching in demanding conditions. Its momentary action ensures the circuit is only active while the button is pressed, making it ideal for jog functions, reset operations, or signal triggering.

Key specifications

• Switch type: Push button, momentary (non-latching)
• Contact configuration: 1 x NO (normally open)
• Rated voltage: 250 V AC
• Rated current: 3 A
• Mounting diameter: 22 mm
• Actuator colour: Red
• Ingress protection: IP67
• Impact protection: IK10
• Number of poles: 1
• Switching function: SPST
• Actuator style: Round, flush
• Illumination: No
• Terminal type: Screw terminals

Why choose it

With IP67 and IK10 ratings, this switch is sealed against dust and temporary immersion, and can withstand high mechanical impact. Its screw terminals provide a secure connection, and the red actuator offers clear visual indication. The momentary action prevents accidental latching, enhancing safety in control applications.

Ideal use cases

• Industrial control panels
• Machinery start/stop or jog functions
• Test and measurement equipment
• Outdoor or washdown environments

Good to know

The switch is non-illuminated and features a single normally open contact. It is suitable for AC circuits up to 250 V and 3 A. The 22 mm mounting diameter is a standard size for panel cutouts, ensuring compatibility with common industrial enclosures.
