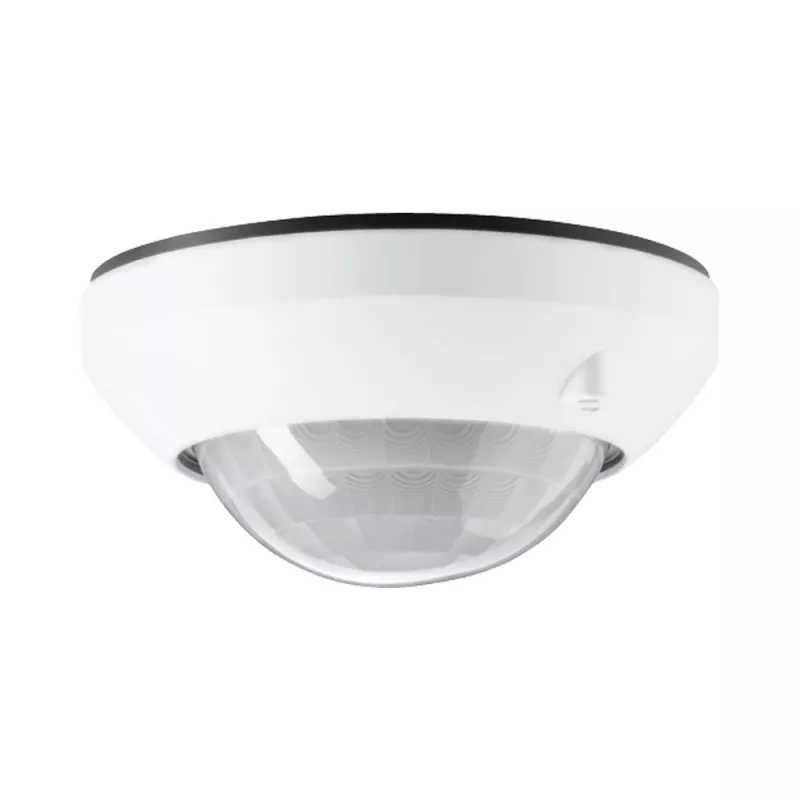

JUNG HOME -läsnäolotunnistin BT17361WW, 360° kattoasennus, Bluetooth Mesh, alppivalkoinen

The JUNG HOME Presence Detector BT17361WW is a high-performance occupancy and presence sensor designed for seamless integration into the JUNG HOME smart building system. Utilizing Bluetooth Mesh technology, it enables intelligent, app-controlled automation of lighting and HVAC systems. With a 360° detection angle and an 8-meter diameter range (at 2.5 m mounting height), it reliably detects presence and adjusts brightness levels from 10 to 2000 lux. The sensor is flush-mounted on the ceiling and features an elegant Alpine White thermoplastic housing (IP20). Ideal for modern smart homes and offices, it offers adjustable follow-up time and sensitivity via the JUNG HOME App.

Advantages

Energy-efficient automatic light control reduces electricity costs. Flexible integration with JUNG HOME system components allows for customized scenarios. The 360° coverage eliminates blind spots, while the brightness sensor prevents unnecessary lighting. Simple app-based configuration and updates ensure future-proof operation.

Suitable for

• Smart home lighting automation in living rooms, hallways, and open-plan areas
• Presence-based HVAC control for energy savings
• Office spaces requiring occupancy-triggered lighting
• Ceiling-mounted installations in new builds or retrofits with JUNG HOME system

Key specifications

• Product Type: Presence Detector / Occupancy Sensor
• System Compatibility: JUNG HOME
• Communication Protocol: Bluetooth Mesh
• Detection Angle: 360°
• Detection Range (Diameter): Approx. 8 m (at 2.5 m mounting height)
• Mounting Type: Ceiling (flush-mounted)
• Integrated Sensors: Presence/Motion, Brightness
• Power Supply: 230 V AC (via JUNG HOME system)
• IP Rating: IP20
• Operating Temperature: 0 to +45 °C
• Colour: Alpine White
• Material: Thermoplastic
• Installation Height (Recommended): 2.5 m
• Brightness Measurement Range: Approx. 10 to 2000 lux
• Time Delay (Follow-up Time): Adjustable (e.g., 10 s to 30 min)
• Sensitivity: Adjustable
• Control Type: App-controlled (JUNG HOME App)
• Functions: Automatic light control, HVAC control integration
• Installation: Requires JUNG HOME system components
• Certification: CE

Recommendations

For optimal performance, install at the recommended height of 2.5 m in a central ceiling location. Pair with JUNG HOME actuators and switches to create comprehensive automation scenes. Always ensure the device is integrated into an existing JUNG HOME system.
