JUNG HOME liiketunnistin 2,2 m, alpinvalkoinen BTCD17182WW

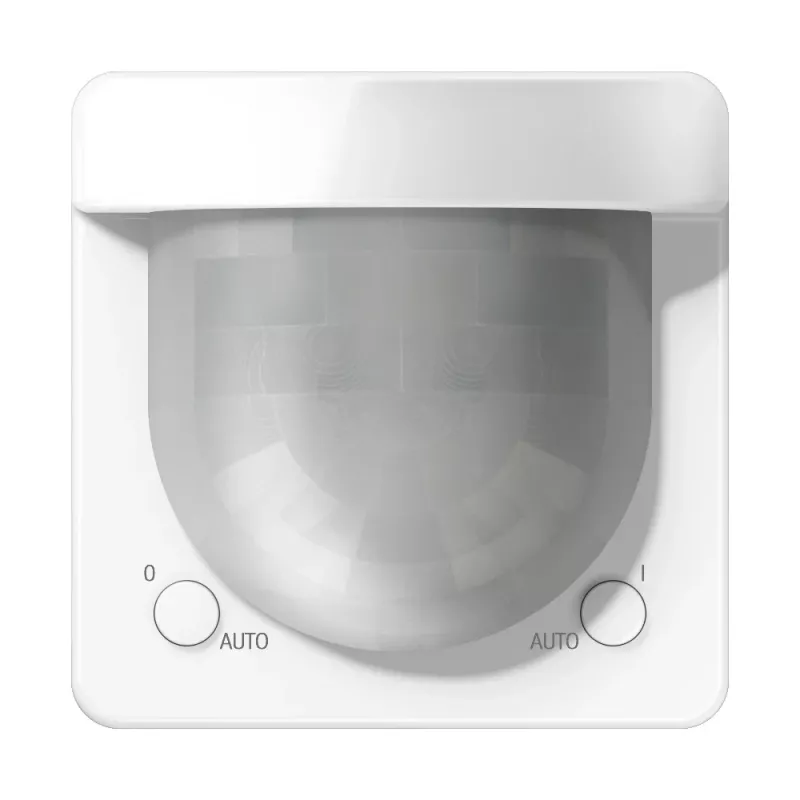

The JUNG HOME Motion Detector 2.2 m is a flush-mounted PIR sensor that automatically controls lighting based on movement and ambient brightness. Its 180° detection angle and 12 m range make it ideal for hallways, staircases, and outdoor covered areas.

Advantages

With Bluetooth Mesh connectivity, this motion detector integrates seamlessly into the JUNG HOME system, enabling smart automation and presence simulation. The adjustable brightness threshold and follow-up time allow precise customization to your needs.

Suitable for

• Hallways and corridors
• Staircases
• Bathrooms and WCs
• Covered outdoor areas

Key specifications

• Detection technology: Passive Infrared (PIR)
• Mounting height: 2.2 m
• Detection angle: 180°
• Detection range: 12 m
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W incandescent/halogen, 1000 W LED
• Brightness threshold: approx. 5 to 1000 Lux (adjustable)
• Follow-up time: approx. 10 s to 30 min (adjustable)
• Protection class: IP20
• Operating temperature: 0 °C to +45 °C
• Connectivity: Bluetooth Mesh (JUNG HOME)
• Colour: Alpine White

Recommendations

For best performance, install at the recommended height of 2.2 m and avoid direct sunlight or heat sources that may affect PIR detection.
