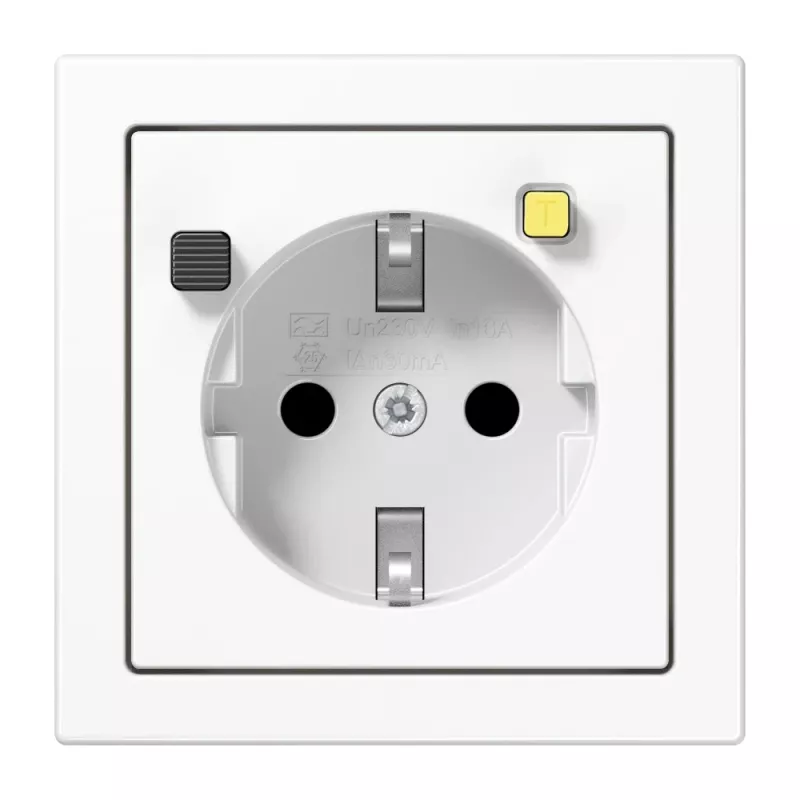

Jung LS5520.30WW FI-SCHUKO-pistorasia FI 30 mA, alppivalkoinen

This flush-mounted socket outlet integrates a 30 mA residual current device (RCD) for enhanced protection against electric shock, rated at 16 A and 230 V AC.

Overview

The Jung LS5520.30WW is a FI-SCHUKO socket outlet with integrated RCD, designed for flush mounting in standard wall boxes. It features a single Schuko socket with child protection and screw terminals. The RCD trips at 30 mA, providing personal protection in accordance with relevant standards.

What stands out

• Integrated RCD with 30 mA tripping current for added safety
• Flush-mounted design in Alpine White (alpinweiß)
• Child protection shutters for safety
• Halogen-free thermoplastic material

Technical details

• Rated current: 16 A
• Rated voltage: 230 V AC
• Frequency: 50/60 Hz
• RCD type: Type A
• Mounting type: Flush-mounted
• Colour: Alpine White
• Material: Thermoplastic
• Connection type: Screw terminals
• Number of sockets: 1
• Child protection: Yes
• Halogen-free: Yes

Our verdict

A reliable safety socket outlet with integrated RCD, ideal for residential and commercial installations requiring personal protection.
