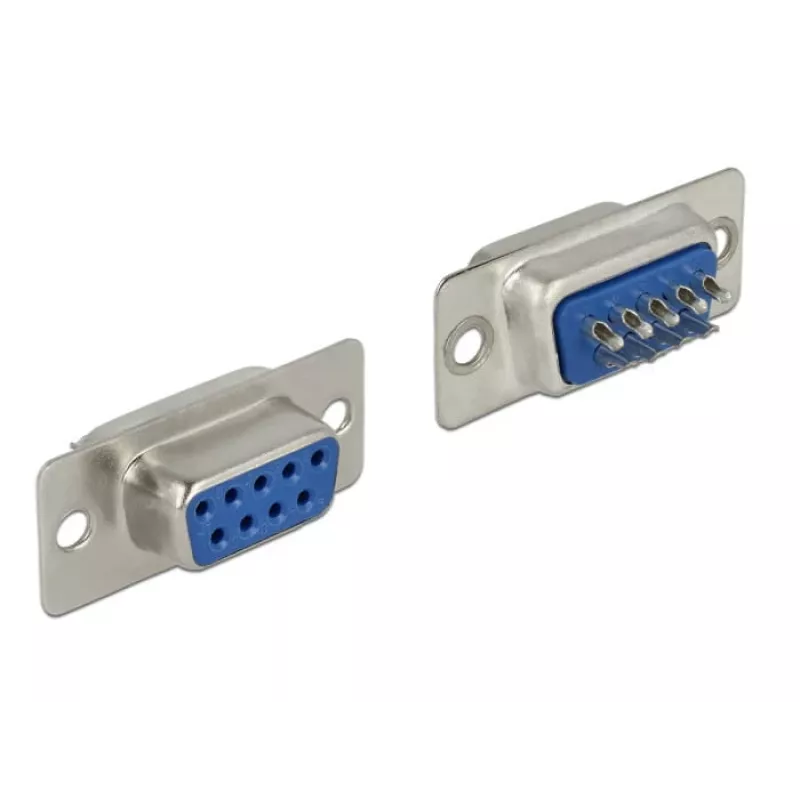

Kaapeliliitin DeLOCK 65882 Sub-D 9-napainen sininen hopea

The DeLOCK 65882 wire connector is a compact Sub-D 9 pin female connector designed for soldering to a cable. Finished in blue and silver, it measures 31 mm (width) × 15 mm (depth) × 12.5 mm (height) and is supplied in a polybag, providing a space-saving and easy-to-handle solution for electronic connections.

Advantages

This Sub-D 9 pin female connector offers a standard pin layout for serial and general-purpose signal connections, a compact footprint suitable for tight assemblies, and a durable metal/plastic finish in blue and silver. The connector is intended for direct soldering to cable conductors, enabling reliable electrical contact and mechanical stability when properly assembled.

Suitable for

• Soldering to cable ends for serial interfaces
• Repair or custom assembly of devices using Sub-D 9 pin connections
• Prototyping and small electronic projects requiring a female D-Sub 9 interface

Key specifications

• Type: Sub-D 9 pin, female
• Dimensions: 31 mm (W) × 15 mm (D) × 12.5 mm (H)
• Colour: Blue, Silver
• Packaging: Polybag
• Brand / MPN: DELOCK / 65882
• EAN: 4043619658824

How to use

Prepare the cable by stripping the outer insulation and tinning the conductor ends as appropriate. Align and solder each conductor to the corresponding pin of the Sub-D 9 female connector following the standard pinout for your application. After soldering, inspect all joints for good wetting and no solder bridges. Assemble any housing parts if present and secure the connector to the cable or panel as required.

Recommendations

Use appropriate soldering equipment and ESD precautions; verify the correct pinout before soldering to avoid connection errors. Ensure strain relief is provided for the cable to prevent mechanical stress on solder joints.
