Kaapeliliitin DeLOCK 66322

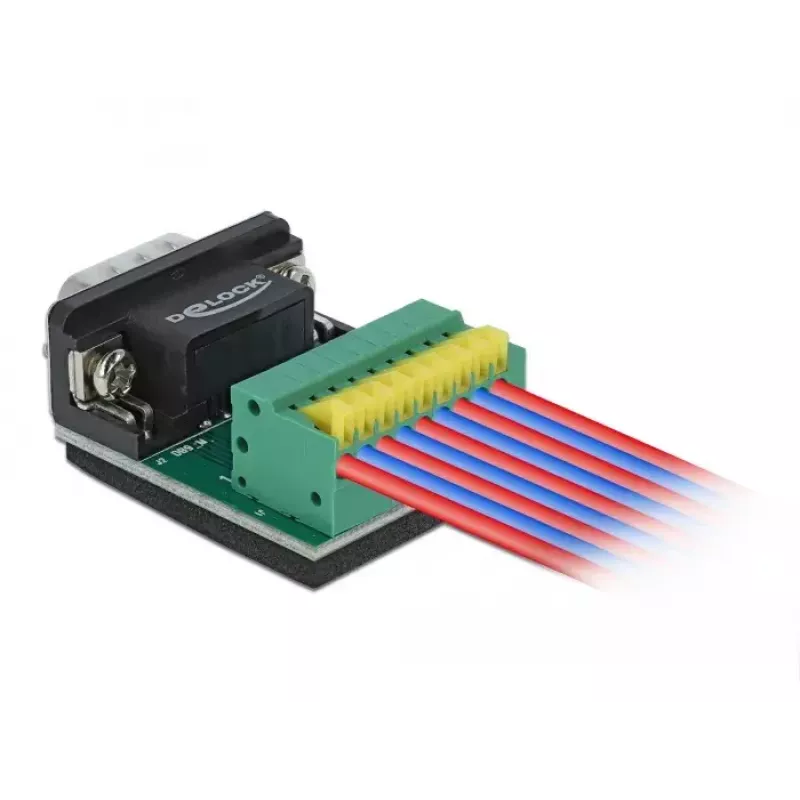

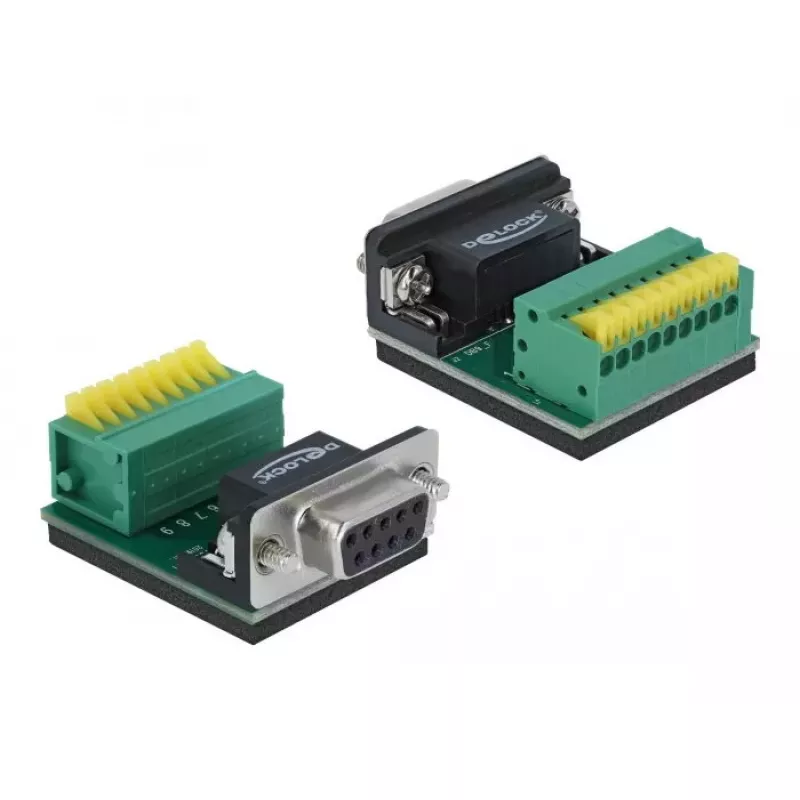

The DeLOCK 66322 wire connector is a compact terminal block adapter designed to connect bare wires to a serial Sub-D 9 pin female interface. It is available in four colours (Black, Green, Silver and Yellow) and is supplied individually in a polybag. The small footprint (31 mm × 36 mm × 17 mm) makes it suitable for installations where space is limited while providing a convenient means to terminate wires to a Sub-D 9 female connector.

Advantages

The adapter offers a simple, compact solution for connecting bare conductors to a Sub-D 9 female socket without soldering. Multiple colour options help with quick visual identification in multi-connector setups. Its compact dimensions and standardized Sub-D 9 female interface ensure compatibility with equipment that accepts 9-pin serial connections.

Suitable for

• Industrial control panels and machinery wiring where a Sub-D 9 female connection is required
• Hobby and model railway installations needing a reliable 9-pin serial connection
• Prototyping and small electronics projects that require easy wire termination

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66322
• EAN: 4043619663224
• Connector type: 1 × Sub-D 9 pin female
• Product colours: Black, Green, Silver, Yellow
• Dimensions (W × D × H): 31 mm × 36 mm × 17 mm
• Packaging: single unit in polybag

How to use

Strip the insulation from the wire ends to the appropriate length, insert each bare conductor into the corresponding terminal point of the adapter and secure according to the terminal type (e.g., by tightening the screw or clamp). Once all wires are terminated, connect the Sub-D 9 female side to the matching male plug on the device or cable. Verify mechanical and electrical connections before powering the system.

Recommendations

Use wires of appropriate gauge for the terminal rating and avoid over-tightening clamps or screws to prevent conductor damage. Choose connector colours to simplify identification in multi-cable assemblies and ensure strain relief on cables where movement or vibration is expected.
