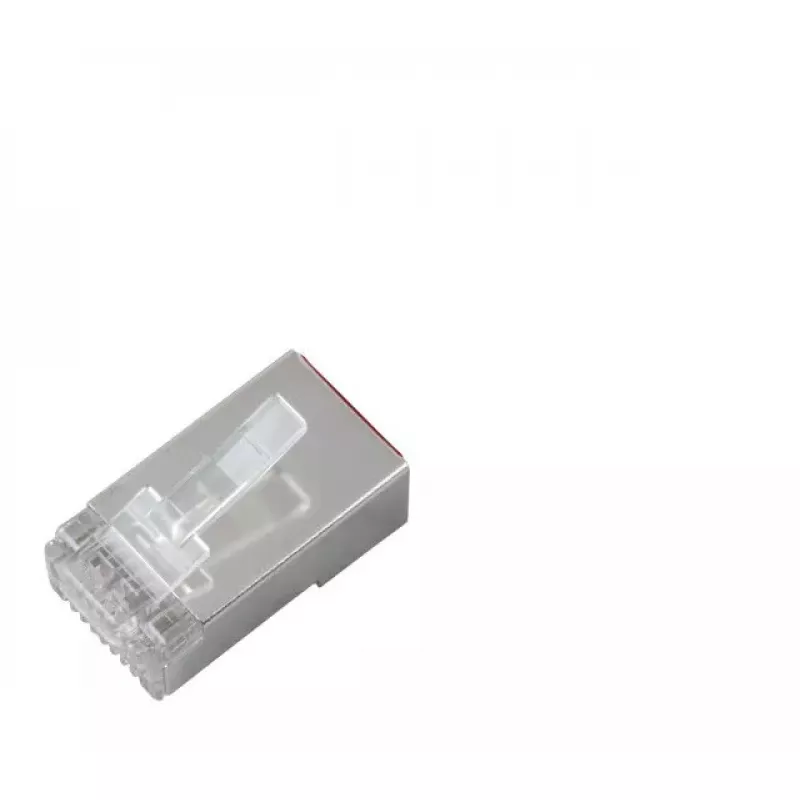

Kaapeliliitin RJ-45 EFB Elektronik 37541.3-100

The EFB Elektronik 37541.3-100 RJ-45 wire connector is designed for Cat5e (up to 100 MHz) shielded stranded cables with a maximum outer diameter of 6.3 mm. Available in silver and supplied in packs of 100, this connector accepts stranded conductors (AWG 24/7, AWG 26/7, AWG 27/7) and requires an appropriate crimping tool for installation. The anti-kink sleeve is not included.

Advantages

Compatible with Cat5e shielded cables and multiple stranded conductor sizes, the connector supports reliable data transmission up to 100 MHz. Its silver finish provides a standard visual match for shielded network assemblies, and the 6.3 mm maximum cable diameter accommodates common Cat5e constructions. Supplied in a pack of 100, it is suitable for bulk installations.

Suitable for

• Termination of shielded Cat5e stranded cables (AWG 24/7, 26/7, 27/7)
• Network patch cables and in-field repairs
• Small to medium installation projects requiring multiple connectors

Key specifications

• Category: Cat5e (up to 100 MHz)
• Connector type: RJ-45
• Compatible conductor types: Stranded AWG 24/7, AWG 26/7, AWG 27/7
• Shielding: Shielded version
• Core insulation diameter: approx. 0.9–1.0 mm
• Maximum cable diameter: 6.3 mm
• Colour: Silver
• Pack quantity: 100 pieces
• Suitable crimping tool: DCW1003 + DCW1003.1

How to use

Strip the cable jacket and prepare the stranded conductors so the core insulation remains approximately 0.9–1.0 mm where required by the connector design. Insert the conductors into the RJ-45 connector in the correct pin order for your wiring standard, then crimp the connector using the recommended crimping tool DCW1003 with attachment DCW1003.1. Verify the connection and shield continuity after crimping. Note that the anti-kink sleeve is not included and must be fitted separately if needed.

Recommendations

Use with the specified crimping tool combination (DCW1003 + DCW1003.1) for reliable mechanical and electrical contact; ensure cable diameter and conductor type match the connector specifications before installation.
