Kaapelin puristus- ja kuorintapihdit Knipex 97 33 01 sininen punainen

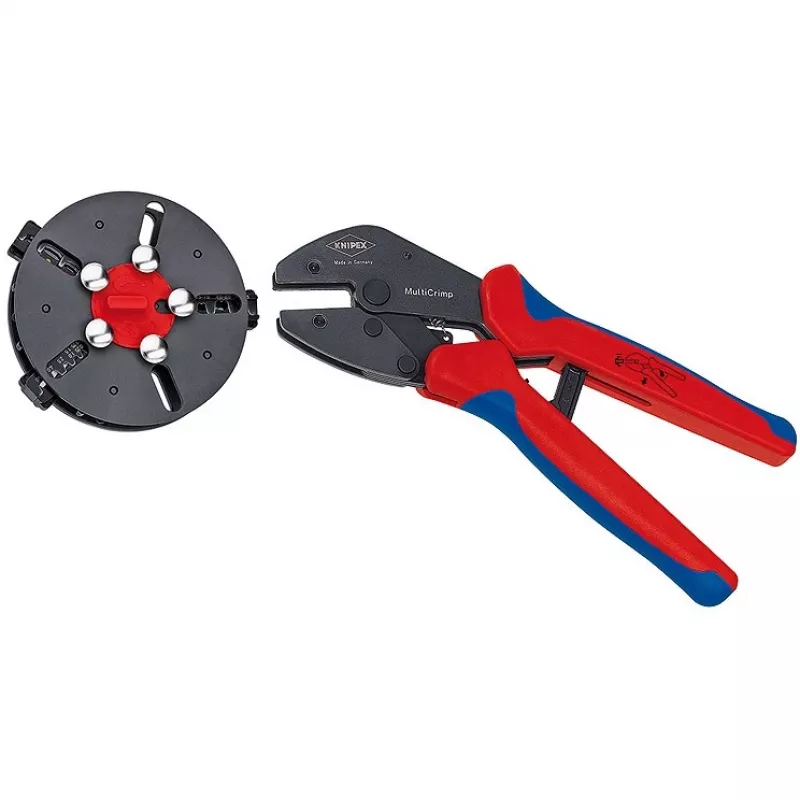

Crimping pliers with a round magazine and three interchangeable crimping dies for a range of connectors: non-insulated open plug type connectors (4.8 and 6.3 mm wide) for wire cross-sections 0.5–6.0 mm²; insulated terminals, plug connectors and butt connectors for 0.5–6.0 mm²; and insulated and non-insulated end sleeves (ferrules) for 0.25–6.0 mm². The tool combines crimping and stripping functionality in a compact, ergonomic design intended for reliable, repeatable connections.

Advantages

One tool covers the most common crimping applications, with interchangeable dies stored and protected in a round magazine. Dies are changed quickly and easily without additional tools. The pliers are made from oil-hardened chrome vanadium electric steel and feature precision dies and an integral self-releasing mechanism for consistent crimping quality. The round magazine is made of glass-fibre reinforced plastic to ensure organised transport and storage.

Suitable for

• Crimping non-insulated open plug connectors (4.8 mm, 6.3 mm) on 0.5–6.0 mm² conductors
• Crimping insulated terminals, plug connectors and butt connectors on 0.5–6.0 mm² conductors
• Crimping insulated and non-insulated ferrules (end sleeves) for 0.25–6.0 mm² conductors
• General cable preparation and connector installation in electrical and network installations

Key specifications

• Model: Knipex 97 33 01
• Brand: Knipex
• MPN: 97 33 01
• EAN: 4003773066927
• Applicable conductor cross-sections: 0.25–6.0 mm² (ferrules), 0.5–6.0 mm² (terminals, plugs, butt connectors)
• Connector widths: 4.8 mm and 6.3 mm for open plug-type connectors
• Material: oil-hardened chrome vanadium electric steel; magazine: glass-fibre reinforced plastic
• Weight: 0.77 kg
• Product colour: Blue, Red

How to use

Select the appropriate crimping die from the round magazine for the connector and conductor cross-section. Remove the die without tools and fit it into the pliers until it locks. Insert the prepared conductor and connector into the die pocket, then squeeze the handles evenly until the self-releasing mechanism opens, indicating a completed crimp. For stripping, use the integrated stripping feature following the same principle of matching the conductor size and making controlled cuts.

Recommendations

For reliable, repeatable crimps, verify that the selected die matches the connector type and conductor cross-section. Keep dies clean and store them in the magazine when not in use. Do not exceed the specified conductor cross-sections. Periodically inspect the pliers for wear and maintain the pivot with light lubrication if needed.
