Kaapelinhallintapaneeli InLine 19 tuuman 19110C musta 5 suurella pidikkeellä

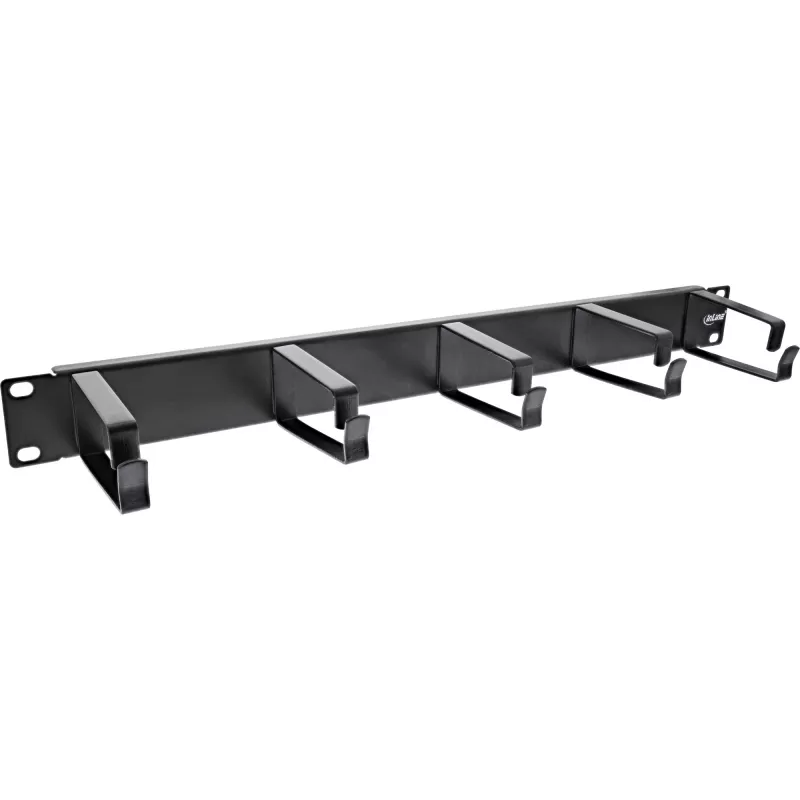

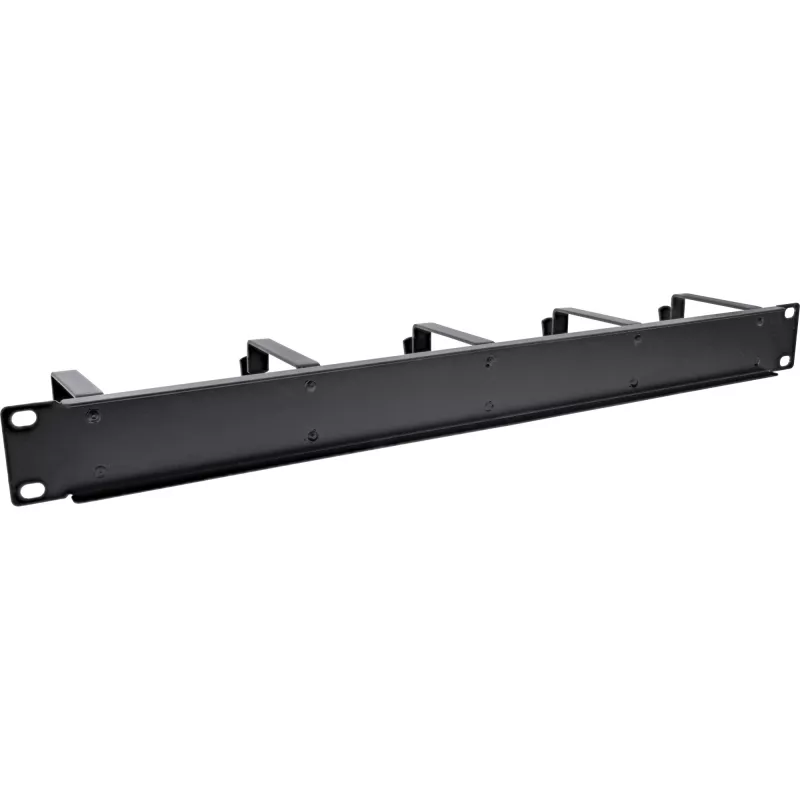

Organize your rack cabling with the InLine 19" cable management panel, built from 1.5 mm steel with a black RAL9005 powder-coated finish. Five large brackets route and group network, power, and patch cables, keeping them separated from equipment for better airflow and easier maintenance.

Advantages

The solid 1.5 mm steel construction ensures rigidity and long-term durability in rack environments. The black powder-coated finish resists corrosion and matches common rack equipment aesthetics. Five large brackets provide ample space to organize multiple cable bundles and reduce strain on connectors. The 48.3 cm width conforms to 19" rack standards for straightforward installation and compatibility with standard mounting hardware.

Suitable for

• Data centers and server rooms
• Network installations and IT cabinets
• Structured cabling systems
• Rack enclosures requiring horizontal cable management

Key specifications

• 19" rack mountable, 1U height
• Panel material: 1.5 mm steel, powder coated
• Bracket material: plastic
• Number of brackets: 5 large
• Panel width: 482.6 mm (19")
• Panel height: 44.45 mm (1U)
• Panel depth: approx. 65 mm
• Colour: black RAL9005
• RoHS compliant

Recommendations

Install the panel in a free 1U rack space using standard rack screws and cage nuts. Route cable bundles through the large brackets, grouping by type or destination to minimize cross-traffic. Ensure cable slack is supported and do not overfill brackets to avoid excess bend radius on sensitive cables. Periodically inspect routed bundles to verify secure routing and adjust as equipment is added or moved.
