Kaapelinkuorija Axing BWZ 5-02 vihreä

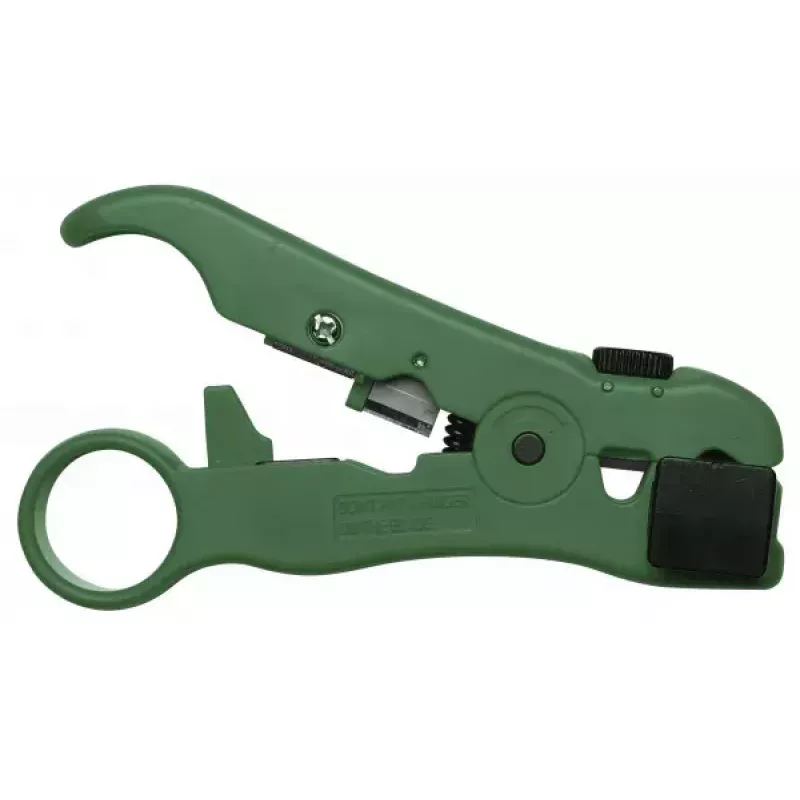

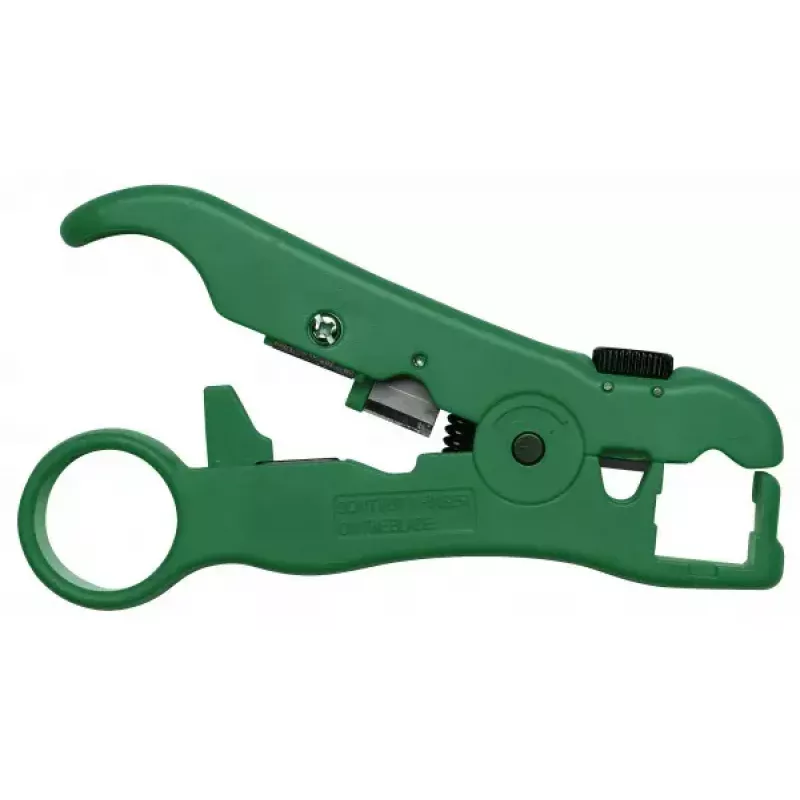

The Axing BWZ 5-02 Green cable stripper is designed for precise removal of outer jackets from coaxial and similar cables. It supports a maximum stripping length of 13 mm (1.3 cm) and a minimum stripping length of 1.4 mm, and accepts cable diameters up to 8 mm. The tool includes an insertable stripping block sized 13/8 mm for premium-line sockets and 7/6 mm for AXING compression connectors. Its ergonomic green housing offers comfortable handling for professional and DIY use.

Advantages

The Axing BWZ 5-02 provides consistent, repeatable strips with adjustable insert blocks for different connector types. Its compact design and compatibility with common SKB coax cables (SKB 75, SKB 88, SKB 89, SKB 92, SKB 93, SKB 395) make it suitable for field and workshop use. The tool is lightweight and allows fast preparation of cables while minimizing damage to inner conductors.

Suitable for

Key specifications

How to use

Insert the cable into the stripper to the required stop corresponding to the desired stripping length. Use the appropriate insertable stripping block (13/8 mm or 7/6 mm) according to the connector type. Rotate or operate the tool as instructed until the outer jacket is cleanly removed. After stripping, inspect the conductor and dielectric to ensure no damage occurred and proceed to fit the connector.

Recommendations

Use the 13/8 mm insert for premium-line sockets and the 7/6 mm insert for AXING compression connectors. Check strip lengths on a sample cable before bulk preparation. Keep blades clean and replace if nicking occurs to avoid conductor damage.
