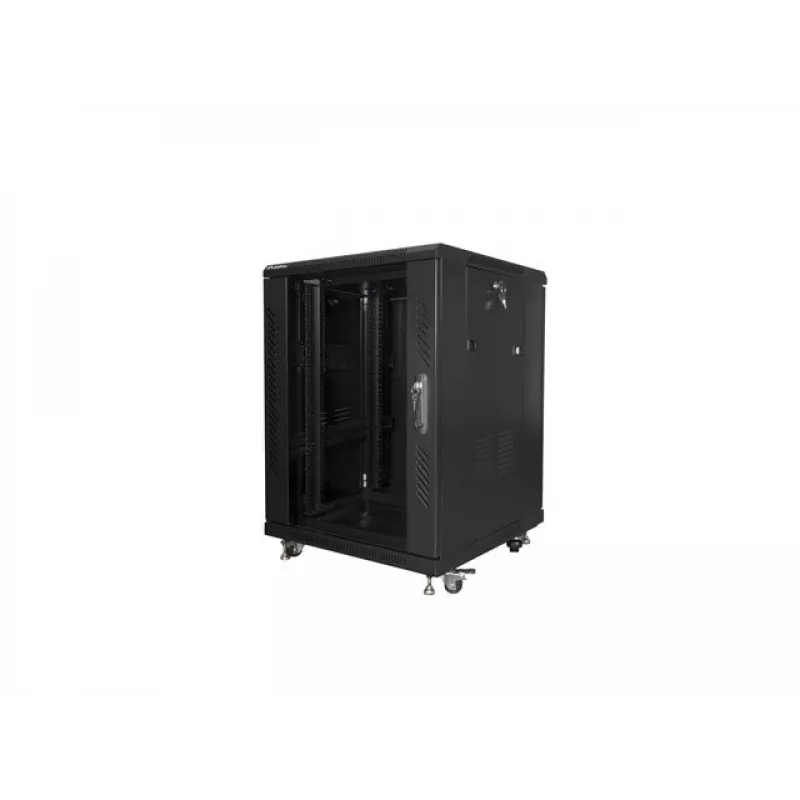

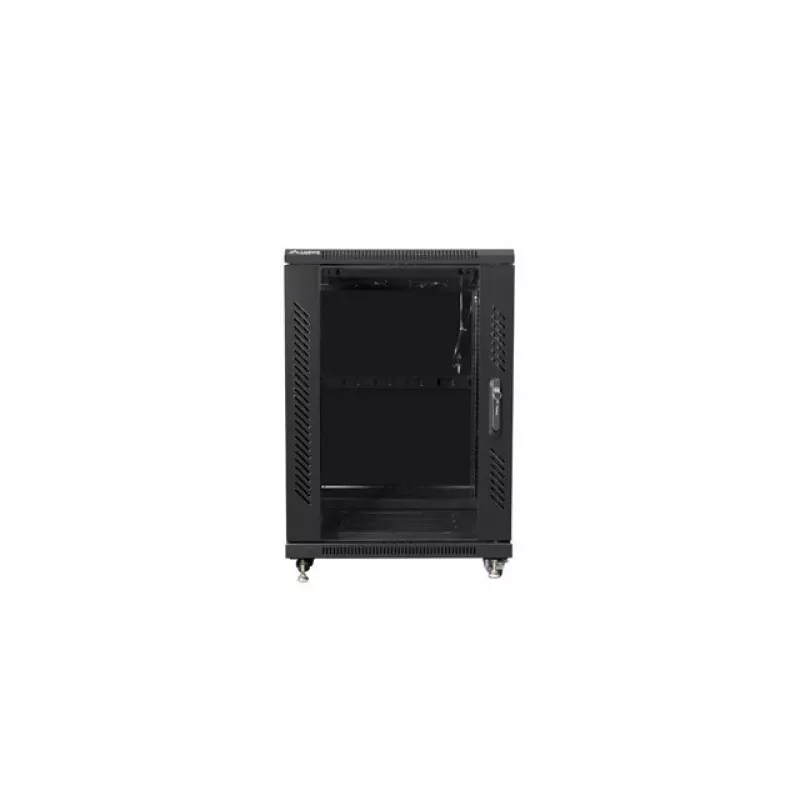

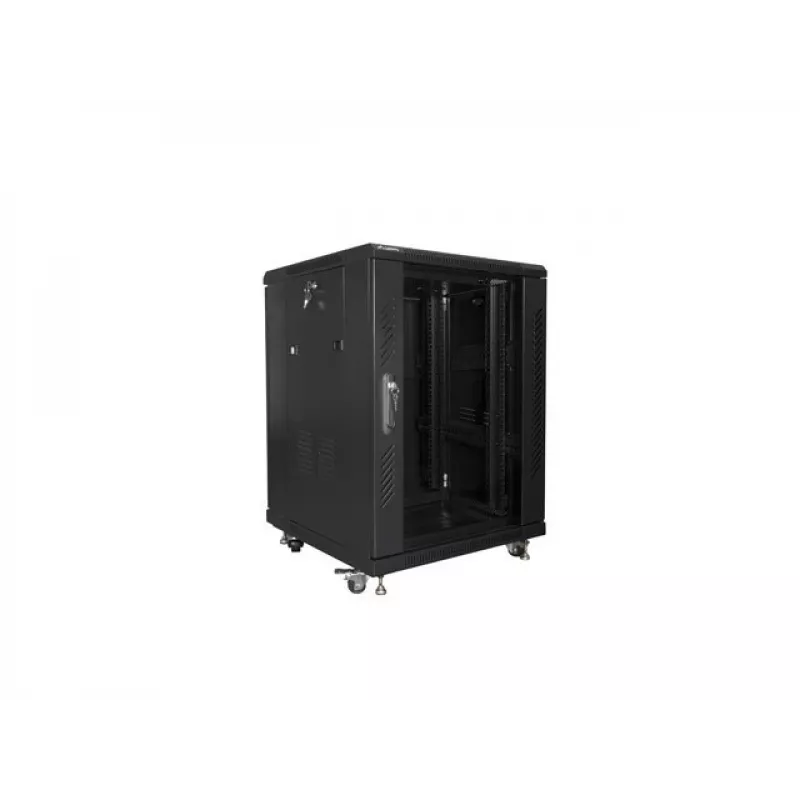

Kaappi Lanberg FF01-6615-12B

Free standing Lanberg cabinet FF01-6615-12B is a 19" rack enclosure designed for network expansion, cabling and mounting active equipment with a maximum load capacity of 800 kg. The cabinet is intended for use in networks, server rooms, small and medium businesses, and data centers, and supports low-voltage systems such as cable TV, alarm and fire protection systems, access control, CCTV and IP surveillance.

Advantages

The cabinet is constructed from high-grade cold rolled steel, offering a robust design and precise workmanship. It features adjustable-depth vertical mounting rails, a tempered glass front door with lock and reversible mounting (right or left), removable side panels with locks, and a solid rear steel door with lock. Top and bottom panels include blank entry panels for cable routing, and the package contains a fan tray with two 230 V fans as well as accessories for rail mounting, M6 cage nuts and additional blank entry panels. The product ships in three flat packs for easier transport and self-assembly.

Key specifications

• Model: Lanberg FF01-6615-12B
• Form factor: 19" free standing cabinet
• Maximum load capacity: 800 kg
• Material: cold rolled steel
• Front door: tempered glass with lock, reversible (right/left)
• Rear door: solid steel with lock
• Side panels: removable, with locks
• Vertical mounting rails: adjustable depth
• Cable entry: top and bottom panels with blank entry panels
• Cooling: fan tray with 2 × 230 V fans included
• Accessories included: rail mounts, M6 cage nuts, blank entry panels
• Packaging: three flat packs for self-assembly

How to use

Assemble the cabinet following the included instructions: unpack the three flat packs, mount the frame and attach the side and rear panels. Adjust the vertical mounting rails to the required depth, secure them with the supplied M6 cage nuts and rail mounts, and install 19" equipment. Route cabling through the top or bottom blank entry panels; remove or open blank panels as needed. Install the fan tray in the designated position and connect the fans to a 230 V power source. Lock the doors and side panels after mounting equipment to secure the cabinet.

Recommendations

Place the cabinet on a level surface and allow sufficient ventilation space around it. Verify that the total equipment weight does not exceed 800 kg and distribute heavy devices evenly. Use proper grounding and follow local electrical and fire safety codes when connecting fans and powered equipment.
