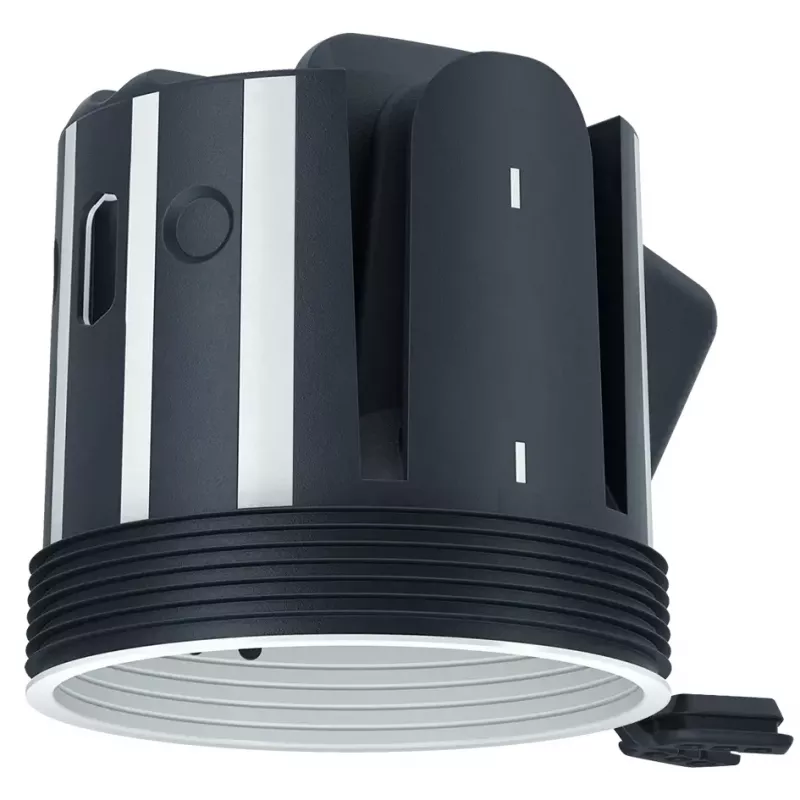

Kaiser Elektro 9320-10 ThermoX LED upotusasennuskotelo

The Kaiser Elektro 9320-10 ThermoX LED is a high-performance recessed housing designed for LED luminaires, offering exceptional fire protection, sound insulation, and thermal insulation. Ideal for cavity wall and flush-mounted installations, this housing ensures safe and efficient operation in demanding environments.

Advantages

Integrated thermal management extends LED lifespan; tool-free installation saves time; suitable for passive house construction; airtight design prevents drafts; halogen-free plastic enhances safety.

Suitable for

• Fire protection ceilings (F30, F60, F90)
• Sound-insulated walls and ceilings
• Thermally insulated building envelopes
• Passive house and low-energy buildings

Key specifications

• Product Type: LED Recessed Housing
• Installation: Cavity Wall, Flush-mounted
• Fire Protection Class: F30, F60, F90
• Material: Halogen-free Plastic
• Protection Class: IP20
• Max. Luminaire Diameter: 68 mm
• Max. Luminaire Height: 65 mm
• Mounting Hole Diameter: 74 mm
• Ceiling Thickness Range: 5 - 40 mm
• Cable Entries: 2 x M20/M25
• Air-tightness: Yes
• Sound Insulation: Yes
• Thermal Insulation: Yes
• Rated Insulation Voltage: 400 V AC
• Operating Temperature: -5°C to +60°C
• Colour: Orange

Recommendations

For optimal performance, pair with compatible LED luminaires (max diameter 68 mm, max height 65 mm). Ensure proper installation by a qualified electrician. Suitable for use in fire-rated and sound-insulated assemblies.
