Kaiser Elektro laiterasia 1159-55 ECON Iso+ syvyys 55mm

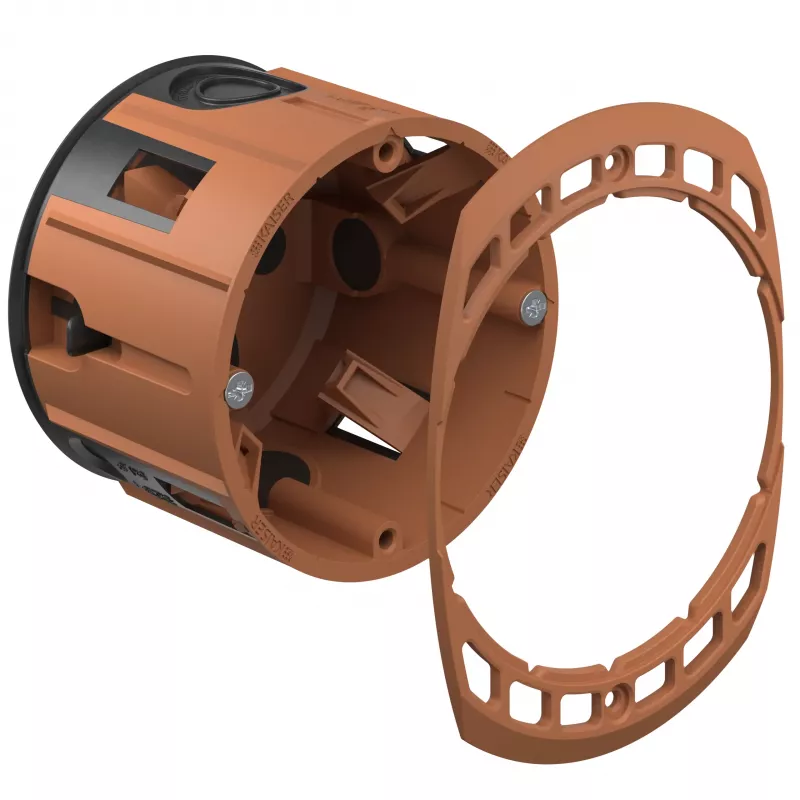

The Kaiser Elektro Device Connection Box 1159-55 ECON Iso+ is a high-quality flush-mounted junction box designed for cavity wall installations. With a depth of 55 mm and a drill hole diameter of 68 mm, it provides ample space for secure device connections. The box features enhanced insulation (Iso+) and air-tight construction for energy-saving applications.

Advantages

Halogen-free plastic material ensures safety and environmental friendliness. The flexible entry membranes allow for easy cable insertion up to 11.5 mm diameter. IP30 protection rating guards against solid objects. The box is temperature resistant from -5°C to +60°C, making it suitable for various indoor environments.

Suitable for

• Flush-mounted electrical installations in cavity walls
• Standard electrical devices such as switches and sockets
• Energy-efficient building projects requiring air-tightness

Key specifications

• Box Type: Device Connection Box
• Mounting Method: Flush-mounted (Cavity Wall)
• Installation Depth: 55 mm
• Drill Hole Diameter: 68 mm
• Outer Diameter (Flange): 74 mm
• Material: Halogen-free Plastic
• Air-tightness: Yes
• IP Protection Class: IP30
• Number of Cable Entries: 4 (flexible entry membranes)
• Cable Diameter Range: Up to 11.5 mm
• Number of Device Screws: 2
• Insulation Type: Iso+ (Enhanced insulation)
• Compatibility: Standard electrical devices (switches, sockets)
• Temperature Resistance: -5°C to +60°C
• Standard Compliance: DIN VDE 0606-1
• Color: Grey
• Product Series: ECON Iso+

Recommendations

This device connection box is ideal for professional electricians seeking reliable and energy-efficient installation solutions. Its air-tight design contributes to building energy performance.
