kaksoiskuulapidike kahdella pyöreällä levyllä RAM Mounts RAM-101U-D

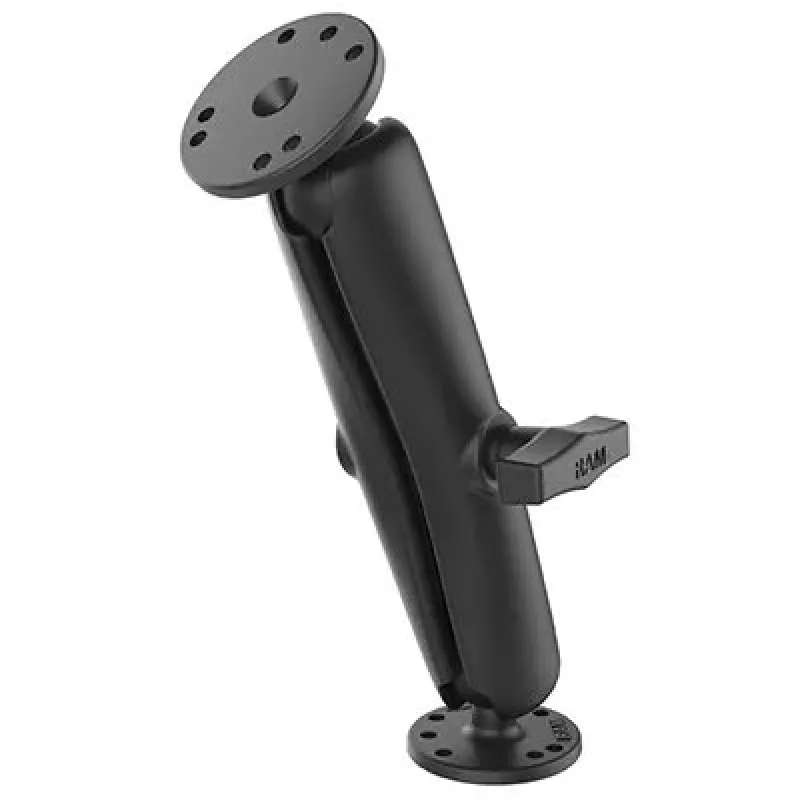

The RAM-101U-D Double Ball Mount with Two Round Plates from RAM Mounts is a versatile mounting arm featuring a long double socket arm and two 2.5" (63.5 mm) diameter round bases with the universal AMPS hole pattern. The mount incorporates a patented 1.5" (38.1 mm) rubber ball-and-socket system with adjustment points at both socket ends, offering wide-range positioning and vibration damping. Made from high-quality materials in black finish, the unit measures 275.5 mm in height and weighs 0.957 kg, providing a stable and durable mounting solution for various devices.

Advantages

The patented rubber ball-and-socket system allows near-infinite adjustment for precise viewing angles while dampening shock and vibration to help protect attached devices. Dual 2.5" round bases with the AMPS hole pattern offer compatibility with many accessories and mounting surfaces. Robust construction and a black finish deliver stability and long-term reliability in professional and personal applications.

Suitable for

• Mounting electronic devices such as GPS units, tablets or communication equipment
• Installation in vehicles, boats, or fixed workstations
• Professional installations requiring vibration-dampened, adjustable mounts

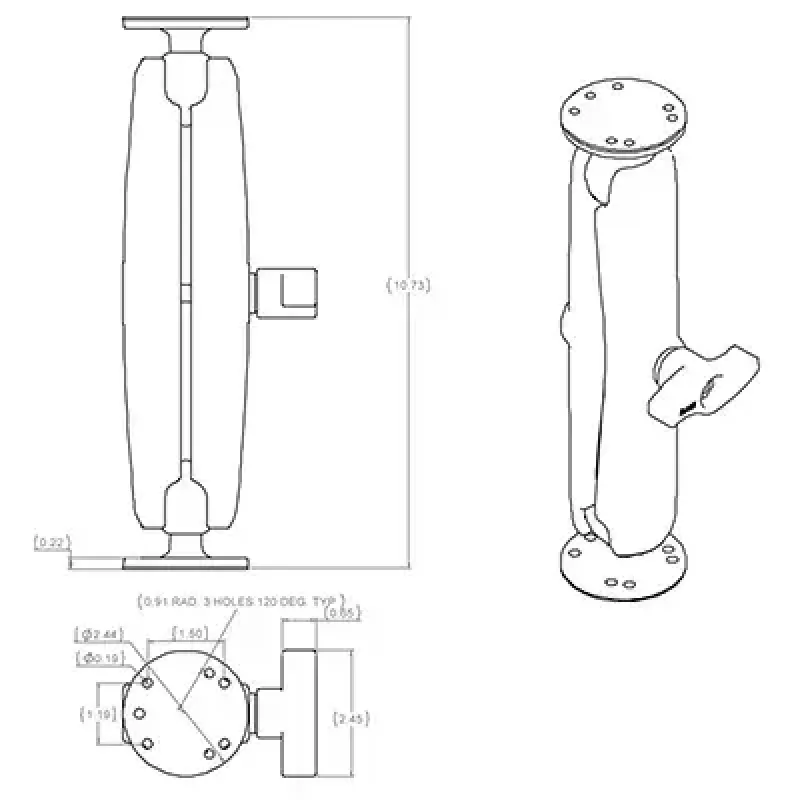

Key specifications

• Model: RAM-101U-D
• Height: 275.5 mm
• Weight: 0.957 kg
• Ball diameter: 1.5" (38.1 mm)
• Round base diameter: 2.5" (63.5 mm)
• Hole pattern: Universal AMPS
• Color: Black

How to use

Attach each round base to the desired mounting surfaces using screws that match the AMPS hole pattern. Connect the double socket arm between the two bases, position the rubber balls in the sockets and tighten the adjustment points to achieve the required angle and reach. Mount the compatible device to the appropriate RAM accessory on the arm and make final angle adjustments for optimal viewing. Ensure all fasteners are secured before use.

Recommendations

Periodically check and re-tighten the adjustment points and mounting hardware to maintain secure positioning. Avoid over-tightening the ball joints to prevent damage to the rubber components and follow manufacturer guidance for screw sizes and torque when attaching the AMPS bases.
