Kannettavan telakka ALOGIC DUTHDPR

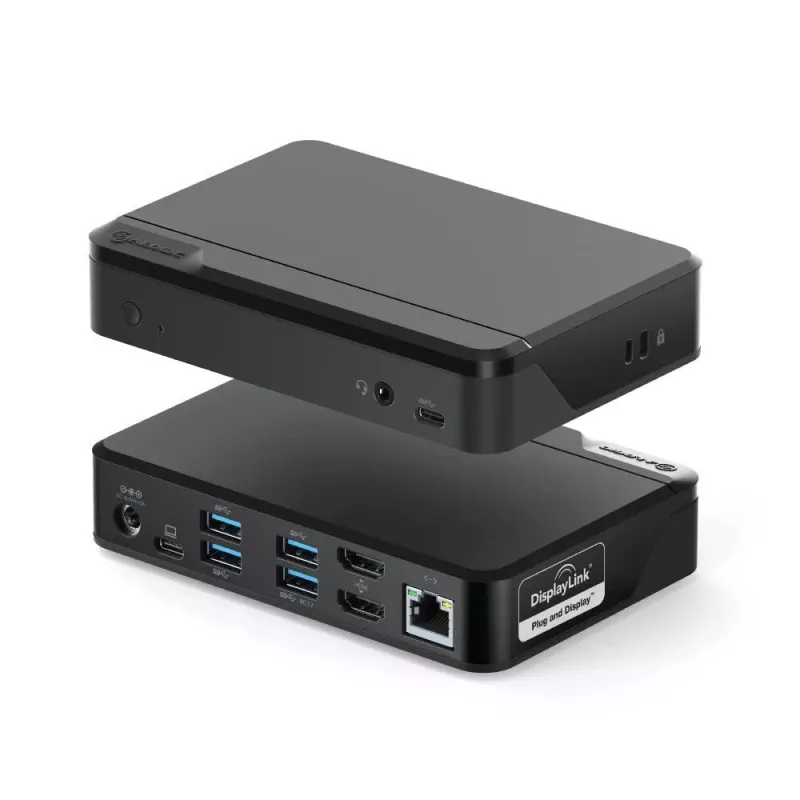

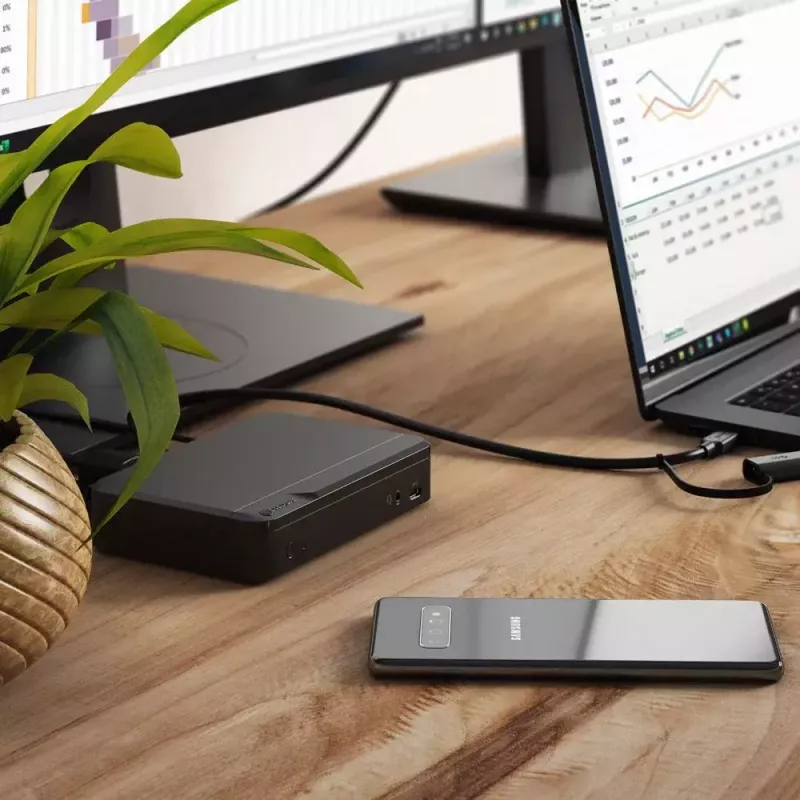

ALOGIC Universal Twin HD PRO Docking Station (DUTHDPR) expands laptop connectivity by adding two Full HD HDMI outputs, multiple USB ports, Gigabit Ethernet, audio I/O and up to 85W USB-C Power Delivery for upstream charging. The compact dock supports both USB-C and USB-A host connections via the supplied host cable with an attached USB-C to USB-A adapter, making it compatible with a wide range of Mac and Windows laptops.

Advantages

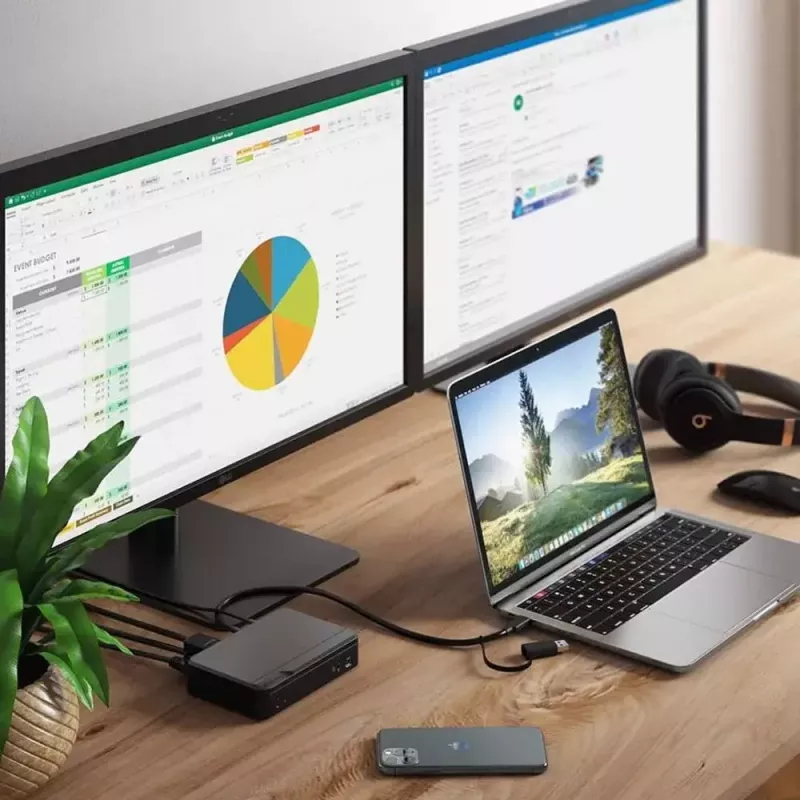

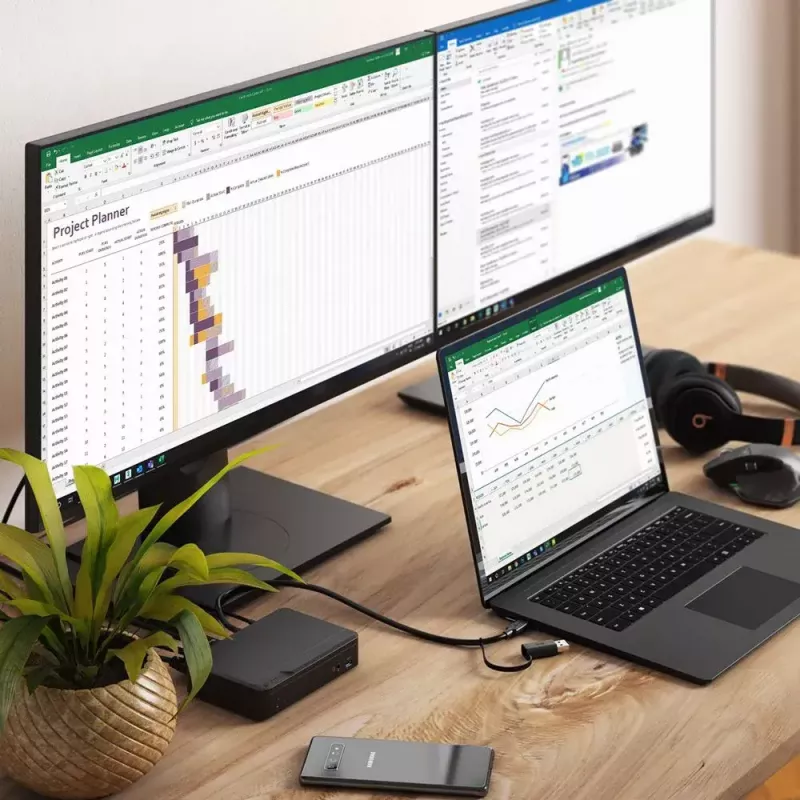

The Twin HD PRO delivers dual 1920 x 1080@60Hz video output for two monitors while simultaneously providing data transfer, wired network access and up to 85W of power to charge the laptop. A mix of USB-C and USB-A ports (including BC 1.2 charging and Apple 2.4A support), combined with audio/microphone TRRS and security lock slots, creates a single all-in-one docking solution suited for hot-desk and mixed-platform environments.

Suitable for

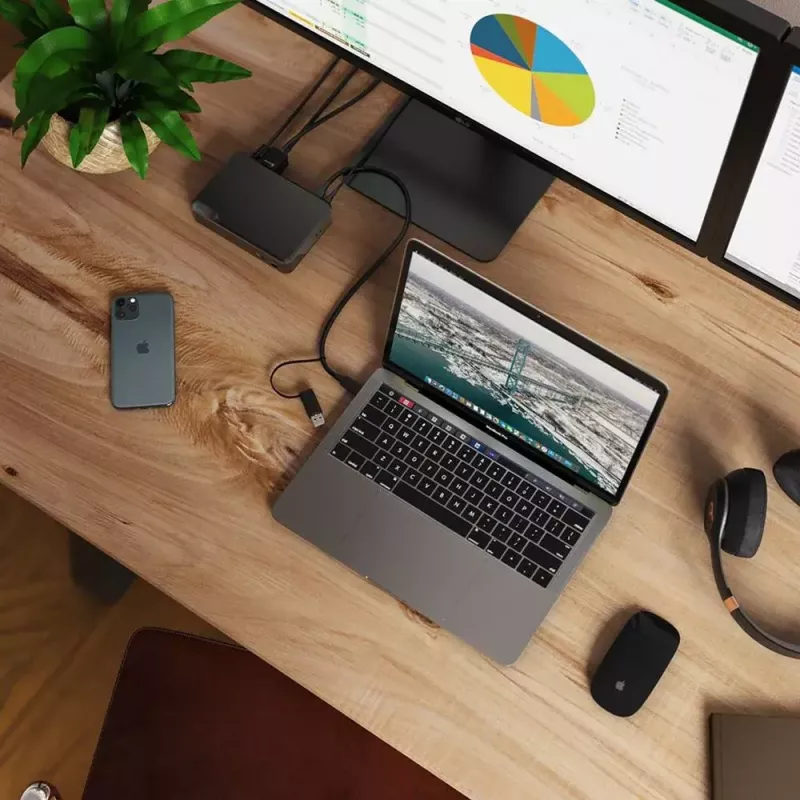

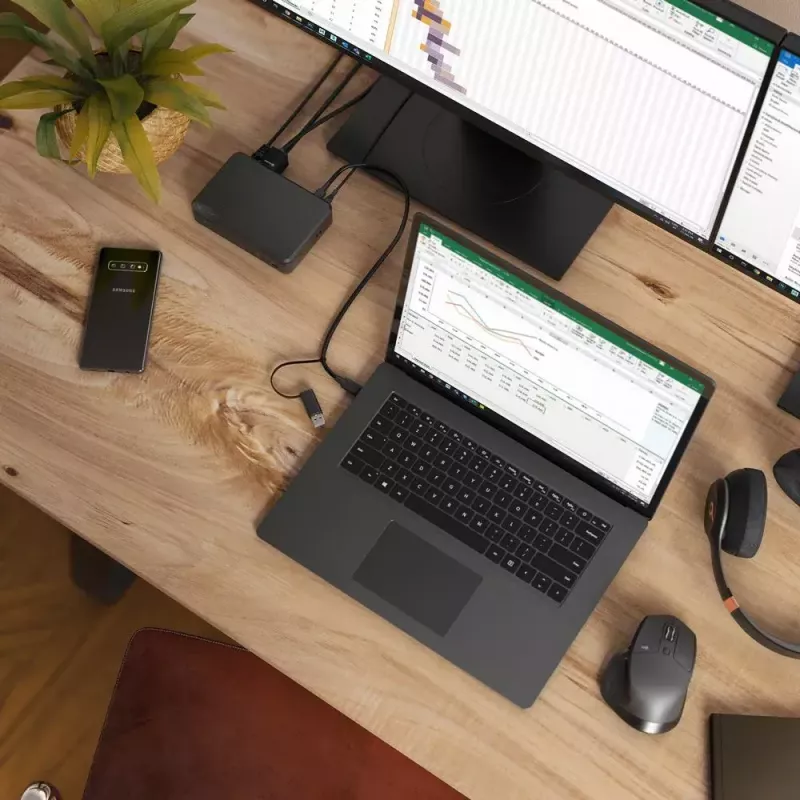

• Expanding a laptop to dual Full HD external displays
• Workstations that require wired Gigabit Ethernet
• Connecting multiple USB peripherals (external drives, keyboard, mouse, hub)
• Hot-desking or shared workspaces with both USB-C and USB-A laptops

Key specifications

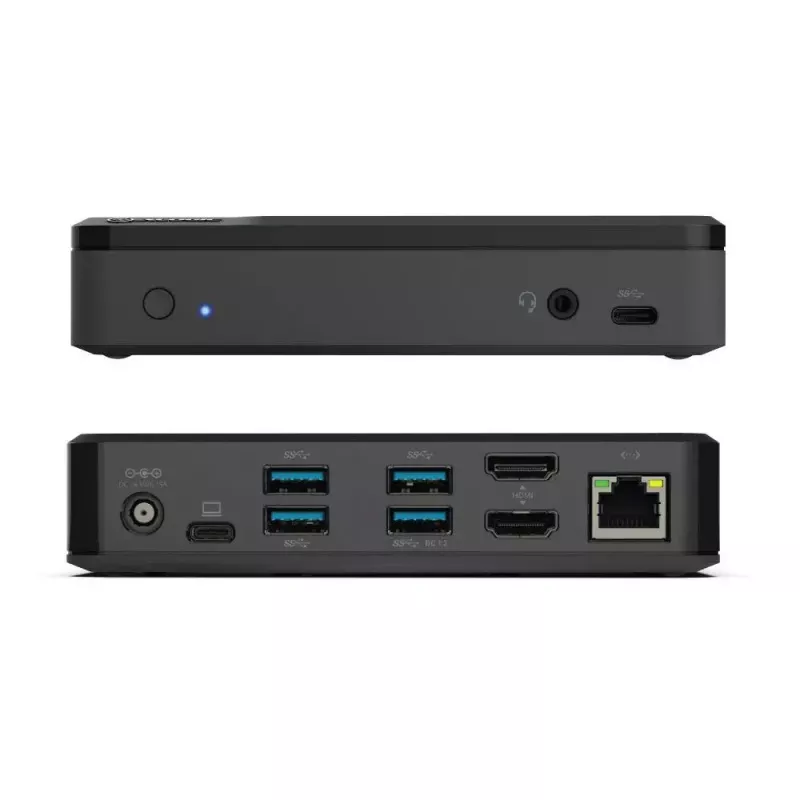

• Model: ALOGIC DUTHDPR

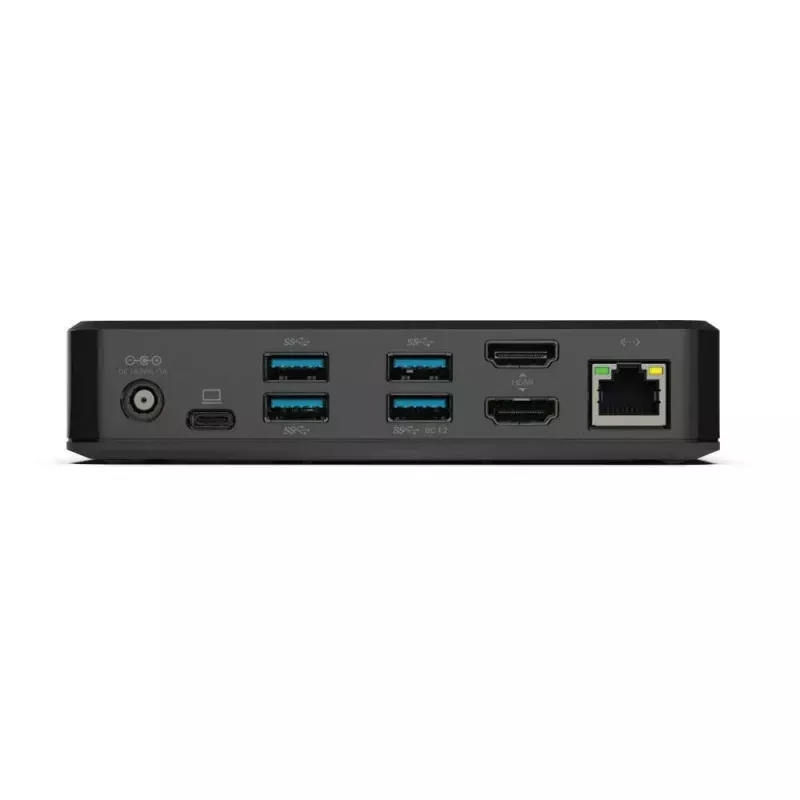

• Video outputs: 2 × HDMI, up to 1920 × 1080 @ 60Hz (each)
• USB ports: 1 × USB-C 3.1 Gen 1 (5 Gbps), 4 × USB-A 3.1 Gen 1 (5 Gbps) (one with BC 1.2 and Apple 2.4A)
• Ethernet: 1 × Gigabit RJ-45 (10/100/1000 Mbps)

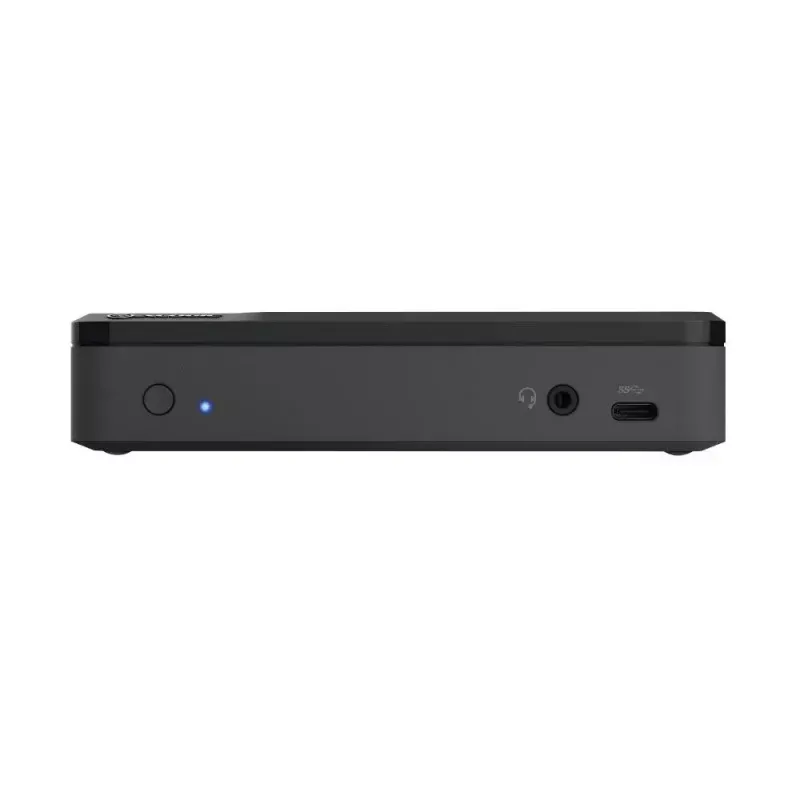

• Audio: 1 × TRRS audio/microphone (CTIA and OMTP supported)
• Power Delivery: Upstream USB-C charging up to 85W
• Security: Kensington lock slot and Nano lock slot
• Dimensions & housing: compact ABS enclosure (approx. 140 × 94.6 × 30.5 mm)
• Color: Black

How to use

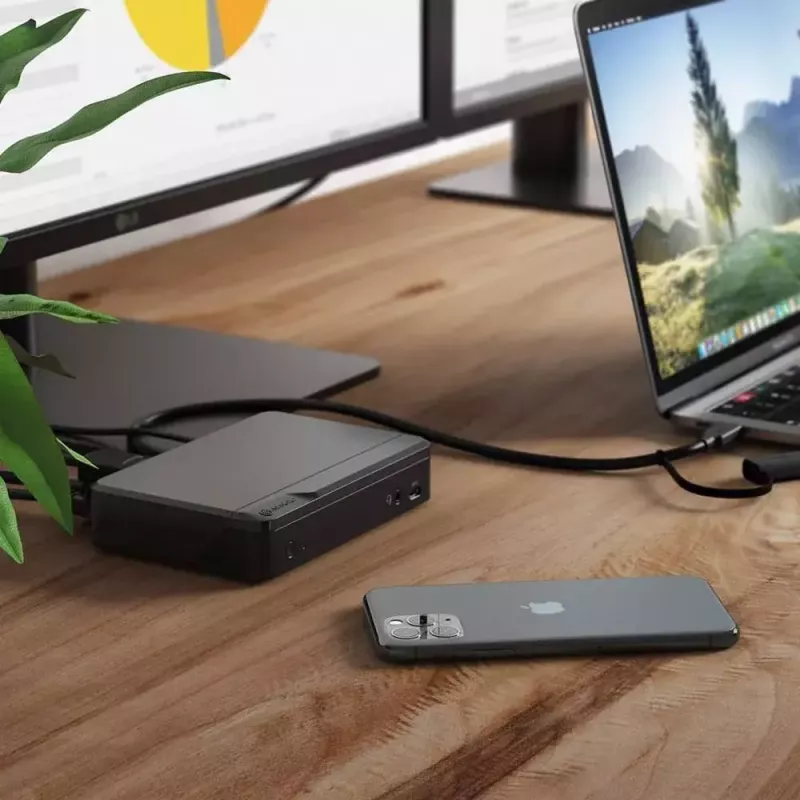

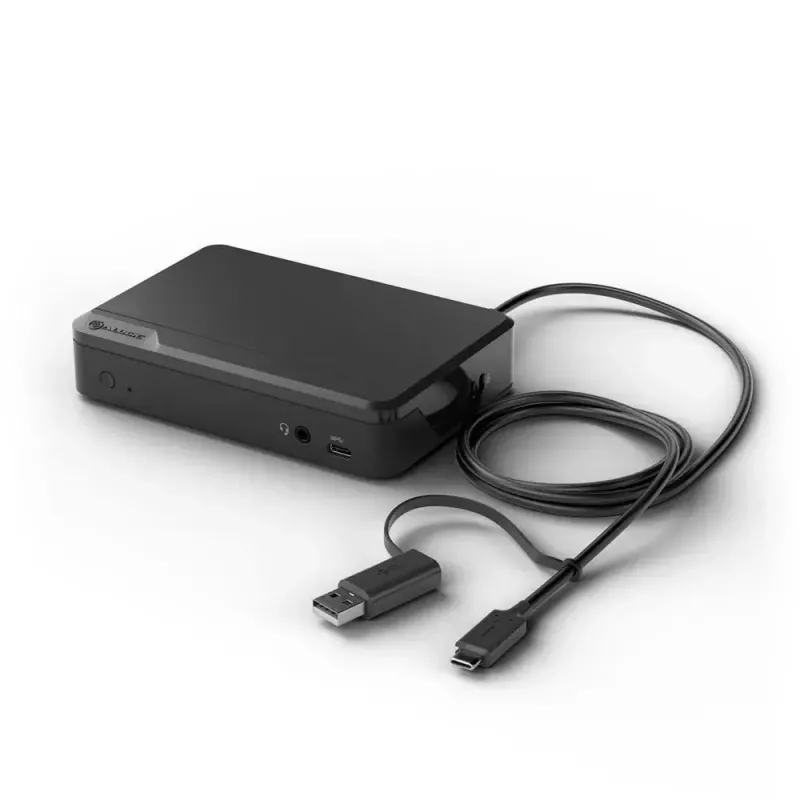

Connect the dock to your laptop using the supplied host cable; use the attached USB-C to USB-A adapter if your laptop only has USB-A. Attach up to two HDMI monitors to the HDMI ports, connect Ethernet and any USB peripherals as needed, and plug in a laptop power adapter to enable Power Delivery charging up to 85W. Ensure your laptop display settings are configured to extend or mirror the desktop across the external monitors.

Recommendations

For reliable dual-monitor output at 1080p60 and stable charging, use the dock’s USB-C host connection when your laptop supports USB Power Delivery. When using USB-A hosts, video and charging capabilities may be limited by the host device. Keep firmware and OS drivers up to date for optimal compatibility.
