Käsikäyttöinen viivakoodinlukija Datalogic GD4290

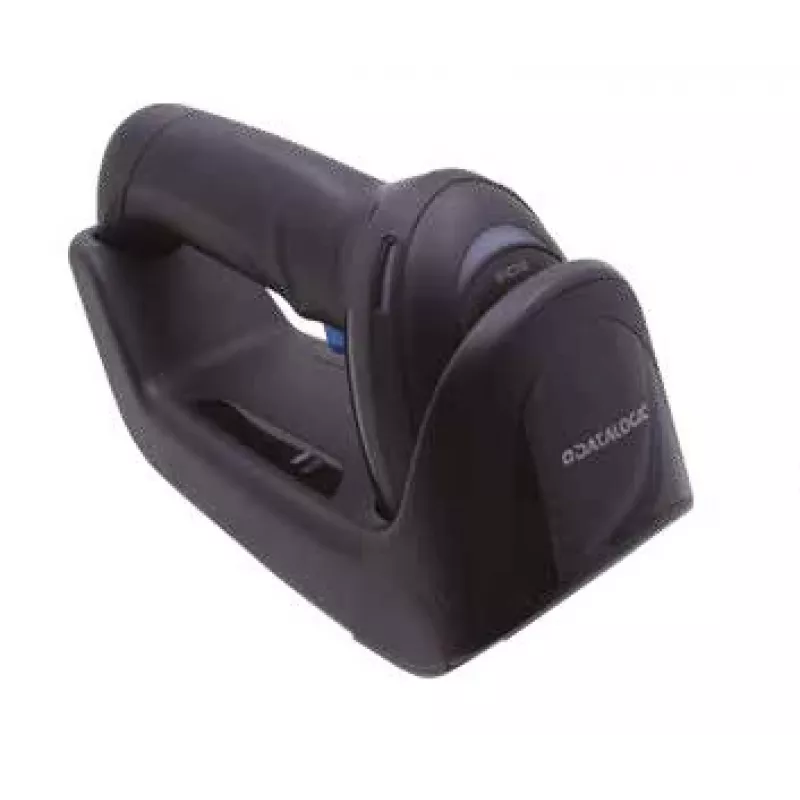

The Datalogic GD4290 is a handheld 1D barcode reader from the Gryphon 4200 premium range, designed for general-purpose applications. It delivers class-leading reading performance for linear barcodes, capable of capturing codes from near to far, reading high-density and low-resolution codes, and decoding poorly printed or damaged barcodes. The wired GD4290 offers reliable wired connectivity with RS-232 and USB interfaces, a compact lightweight design (0.163 kg) and an IP52 protection rating suitable for a variety of work environments.

Advantages

The GD4290 incorporates Datalogic technologies that simplify handheld scanning: Motionix motion-sensing activates the scanner automatically when the operator begins natural scanning movements, and the soft-line viewfinder helps target the correct code to reduce accidental reads. The scanner’s ability to read mobile device barcodes and difficult or damaged codes improves read rates across typical retail, logistics and office tasks.

Suitable for

• Retail point-of-sale and price verification
• Inventory and stock control in warehouses and storerooms
• Shipping, receiving and logistics barcode capture
• Office document tracking and asset management

Key specifications

• Scanner type: 1D linear
• Sensor type: Linear sensor
• Connectivity: Wired (RS-232, USB)
• Weight: 0.163 kg
• Colour: Black
• Protection rating: IP52
• Power: DC powered

How to use

Connect the GD4290 to the host system using the appropriate RS-232 or USB cable. Hold the scanner comfortably and align the soft-line viewfinder over the barcode; Motionix sensing will place the device in ready-to-read mode when natural scanning motion is detected. Aim at the barcode and pull the trigger (or use the configured activation method) to capture the code. Confirm successful reads by the scanner’s feedback (LED/beam and sound) and verify data reception on the host application.

Recommendations

For best results, keep the scanner window clean and ensure barcodes are within the expected working distance for 1D linear codes. Use a stable host interface and proper cable type for your environment. The GD4290 is intended for indoor use in typical retail, office and light industrial settings given its IP52 rating.
