Käsikäyttöinen viivakoodinlukija Datalogic Gryphon GM4500

The Datalogic Gryphon GM4500 is a handheld barcode reader designed for versatile 1D and 2D code capture. It combines an advanced megapixel sensor with warm-white illumination 2D technology, omnidirectional reading, and models optimized for high-density codes and Dot codes. Wireless variants use Bluetooth (GBT) or Datalogic STAR Cordless (GM) communications and incorporate a wireless charging cradle. Healthcare versions are available with disinfectant-ready, anti-microbial enclosures. The device is lightweight and rated IP52 for basic dust and water resistance.

Advantages

The Gryphon GM4500 delivers fast, omnidirectional scanning performance across common 1D and 2D symbologies, with optional High Density optics for small or condensed codes and a red-illumination option that supports Digital Watermarking. Motionix motion sensing switches the unit automatically between hand‑held and presentation modes. Wireless models benefit from a contactless charging system that reduces maintenance and increases uptime. A 3250 mAh Lithium Polymer battery and lightweight design improve portability and continuous operation.

Suitable for

• Retail point-of-sale scanning of 1D and 2D barcodes
• Inventory and warehouse operations requiring cordless mobility
• Healthcare environments (use Healthcare model with disinfectant-ready housing)
• Applications needing high-density or small-code reading (HD models)

Key specifications

• Scanner type: 1D/2D handheld imager
• Sensor: advanced megapixel sensor with warm-white illumination 2D technology
• Connectivity: Bluetooth (GBT) or STAR Cordless System (GM)
• Battery: 3250 mAh Lithium Polymer; wireless charging cradle
• Supported codes: GS1 DataBar, GS1 DataBar Expanded, PDF417, QR Code, MicroPDF417, Micro QR Code, MaxiCode, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, Data Matrix
• Ingress protection: IP52
• Weight: 0.235 kg
• Colour: Black
• Special models: High Density (HD) and Healthcare versions available

How to use

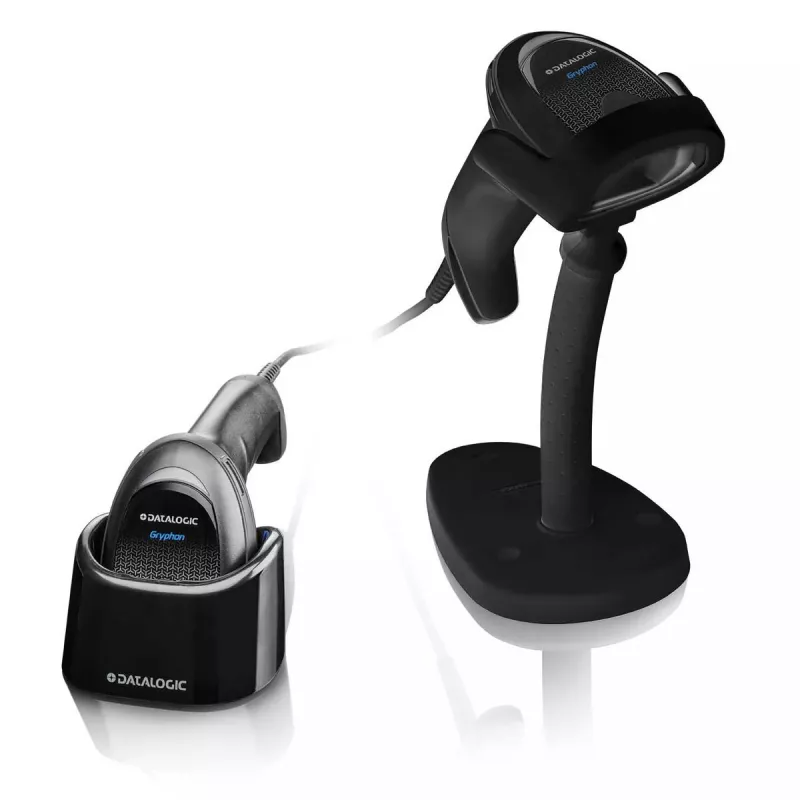

Pick up the Gryphon GM4500 to activate Motionix and begin handheld scanning; place it in the adjustable cradle to return to stand or presentation mode while charging. Aim the imager at the barcode and pull the trigger or allow automatic presentation scanning if the cradle mode is used. For wireless models, ensure the cradle base or base station is connected and the unit is paired via Bluetooth or the STAR system according to the supplied instructions.

Recommendations

Use the High Density model for smaller, condensed or Dot codes. For healthcare applications select the disinfectant-ready Healthcare model and follow facility cleaning protocols compatible with the enclosure. Keep the wireless charging contacts and cradle free of debris and use recommended chargers to maintain battery health.
