Kathrein EMK 11 F-pistoke crimp 7 mm

With shielding effectiveness greater than 90 dB and return loss exceeding 20 dB at 1000 MHz, the Kathrein EMK 11 F-connector ensures clean signal transfer for satellite and cable TV installations.

Overview

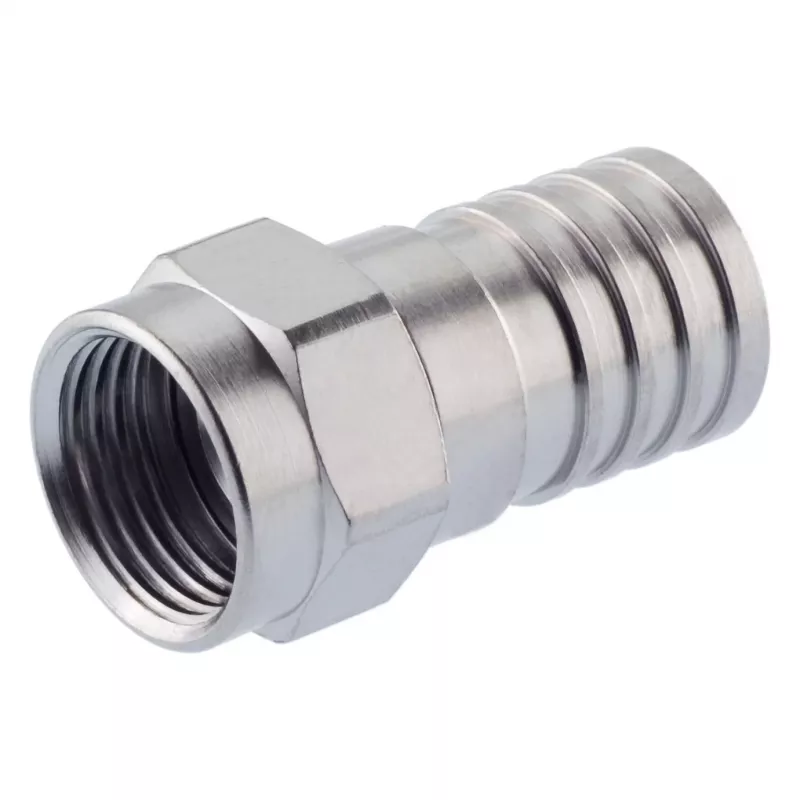

The Kathrein EMK 11 is a crimp-type F-connector designed for coaxial cables with a diameter of 7 mm. It provides a secure, low-loss connection for indoor SAT, CATV, and DVB-T/T2 applications. The nickel-plated brass body offers durability and corrosion resistance.

What stands out

• Crimp connection for both inner and outer conductor
• 75 Ohm impedance, 0–2400 MHz frequency range
• Insertion loss below 0.2 dB at 1000 MHz
• Nickel-plated brass housing

Technical details

• Connector type: F-connector
• Cable compatibility: 7 mm diameter coaxial cable
• Connection method: Crimp
• Impedance: 75 Ohm
• Frequency range: 0–2400 MHz
• Shielding effectiveness: > 90 dB
• Return loss: > 20 dB at 1000 MHz
• Insertion loss: < 0.2 dB at 1000 MHz
• Housing material: Brass, nickel-plated
• Application: SAT, CATV, DVB-T/T2
• Installation environment: Indoor
• Manufacturer series: EMK
• Standard compliance: EN 50083-2

Our verdict

A reliable crimp F-connector for 7 mm coaxial cables, delivering strong shielding and low loss for indoor TV and satellite setups.
