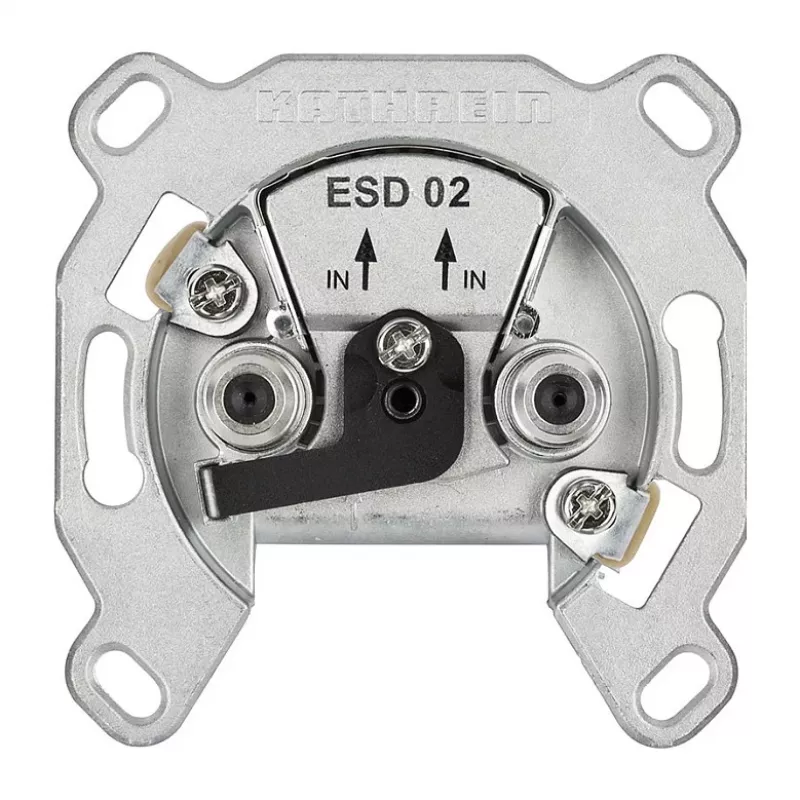

Kathrein ESD 02 2-osainen antennipistorasia DC-läpiviennillä (211500001)

Connecting a TV, radio, and satellite receiver to a single antenna outlet often requires multiple sockets or adapters. The Kathrein ESD 02 solves this by combining all three connections in one flush-mounted unit, with DC pass-through on the satellite output to power a satellite LNB or multiswitch.

Who is it for

This socket is ideal for homes and apartments where terrestrial TV, FM radio, and satellite TV need to be distributed from one wall outlet. It suits installers and DIY enthusiasts setting up a complete multimedia connection point.

Main features

• Three outputs: TV (IEC male), Radio (IEC female), and SAT (F-connector)
• DC pass-through on SAT output for remote powering of LNB or multiswitch
• Wide frequency ranges: TV 5–862 MHz, Radio 87.5–108 MHz, SAT 950–2200 MHz
• Low insertion loss: less than 1.5 dB on all outputs
• High decoupling between outputs: greater than 20 dB
• Shielding effectiveness: greater than 85 dB (Class A)
• 75 Ohm impedance
• Flush-mount installation

Specifications

• Socket type: End socket
• Number of outputs: 2 (TV/Radio combined? Actually 3 outputs: TV, Radio, SAT)
• Output 1: TV (IEC male)
• Output 2: Radio (IEC female)
• Output 3: SAT (F-connector)
• Frequency range TV: 5–862 MHz
• Frequency range Radio: 87.5–108 MHz
• Frequency range SAT: 950–2200 MHz
• DC pass-through: Yes, on SAT output
• Insertion loss TV: < 1.5 dB
• Insertion loss Radio: < 1.5 dB
• Insertion loss SAT: < 1.5 dB
• Decoupling TV-R: > 20 dB
• Decoupling TV-SAT: > 20 dB
• Decoupling R-SAT: > 20 dB
• Return loss: > 10 dB
• Shielding effectiveness: > 85 dB (Class A)
• Impedance: 75 Ohm
• Mounting type: Flush-mount (Unterputz)
• Application: Terrestrial TV, FM Radio, Satellite TV (DVB-S/S2)

Tips

When installing, ensure the DC pass-through is only used if your satellite system requires remote power. For best signal quality, use high-quality coaxial cables with F-connectors for the SAT output.
